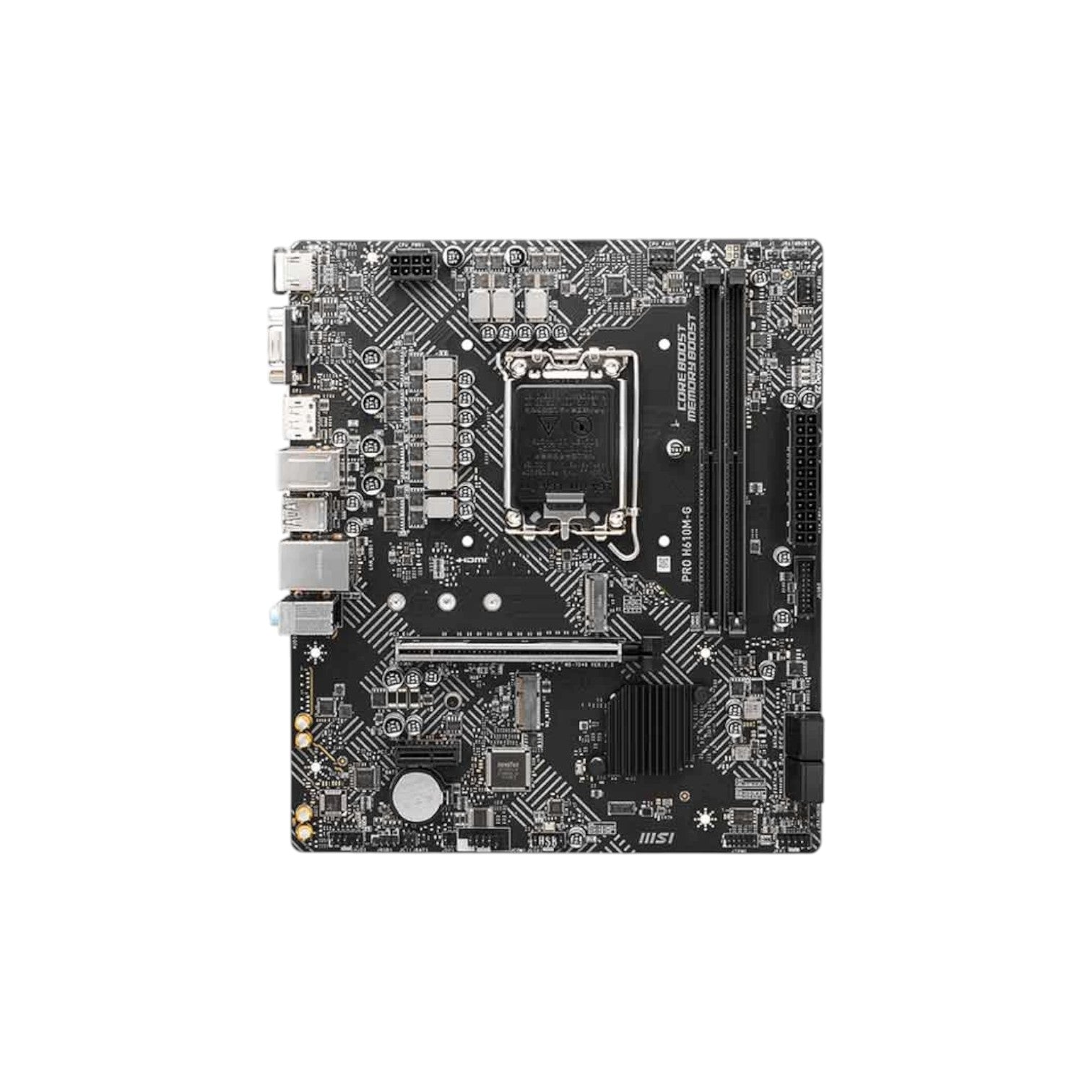

MSI PRO H610M-G DDR5 mATX Motherboard

Brand: MSI (Intel)
SKU: PRO H610M-G
Availability: In stock

Key Features

Features: Realtek ALC897 Codec
Supports DDR5 Memory, up to 5600 (MAX) MHz
Graphics Output: 1x HDMI, 1x DisplayPort, 1x VGA
Supports 14th/ 13th/ 12th Gen, Intel Pentium Gold & Celeron Processors for LGA 1700 socket

Tk 10,800
Tk 11,200
Tk 10,800
Subtotal: Tk 10,800

Specification

Basic Information

Supported CPU Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors
LGA 1700
Chipset Intel H610 Chipset
Form Factor mATX
200mmx236.16mm
Audio Realtek ALC897 Codec
7.1-Channel High Definition Audio
Special Features LED FEATURE: 4x EZ Debug LED

Expansion Slots

PCI 1x PCI-E x16 slot
1x PCI-E x1 slot
PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
1x M.2 slot with E-key for PCIe WiFi module only
M.2 Socket 1 x m.2

Memory

Type DDR4
Slots 2x DDR5 memory slots
Supported Memory Memory Support DDR5 5600 MHz (by JEDEC & POR)
Supports Intel XMP 3.0 OC
Supports Dual-Controller Dual-Channel mode
Supports non-ECC, un-buffered memory
Maximum Memory Support up to 96GB

Graphics

Graphics 1x HDMI
Support HDMI 2.1, maximum resolution of 4K 60Hz
1x DisplayPort
Support DP 1.4, maximum resolution of 4K 60Hz
1x VGA
Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz

Connector & Ports

HDMI 1x HDMI 2.1
Display Port (s) 1x DisplayPort
VGA (s) 1x VGA port
USB (s) 4x USB 2.0 (Rear)
2x USB 2.0 (Front)
2x USB 3.2 Gen1 Type A (Rear)
2x USB 3.2 Gen1 Type A (Front)
LAN Port (s) Intel I219V 1Gbps LAN controller
Supported Storage 1x M.2
M.2_1 Source (From Chipset) supports up to PCIe 3.0 x4 / SATA mode, supports 2280/2260/2242 devices
4x SATA 6G
Internal I/O Ports 1x Power Connector(ATX_PWR)
1x Power Connector(CPU_PWR)
1x CPU Fan
1x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Com Port (JCOM)
2x Addressable RGB LED connector(JRAINBOW)
1x RGB LED connector(JRGB)
2x USB 2.0 ports
2x USB 3.2 Gen1 Type A ports
TPM (Trusted Platform Module) 1x TPM pin header(Support TPM 2.0)

Warranty

Warranty 3 years

Description

MSI PRO H610M-G DDR5 mATX Motherboard

The MSI PRO H610M-G DDR5 mATX Motherboard is a premium and reliable motherboard built to meet the needs of gamers, creators, and PC enthusiasts who value performance and stability. Supporting 14th, 13th, and 12th Generation Intel Core, Pentium Gold, and Celeron processors, it’s compatible with the LGA 1700 socket, ensuring a future-ready foundation for your system. This motherboard stands out for its DDR5 memory support, delivering ultra-fast data transfer speeds and supporting memory frequencies up to 5600 MHz for superior multitasking and performance in demanding workloads.

Equipped with MSI’s Core Boost technology, the motherboard ensures efficient power delivery to unleash the full potential of multi-core Intel CPUs. The digital power design and premium PCB layout enhance stability and responsiveness during heavy use. Memory Boost technology further refines data signal transmission, improving performance, compatibility, and overall system efficiency.

For users who demand speed, the MSI PRO H610M-G DDR5 mATX Motherboard includes PCIe 4.0 support, offering lightning-fast communication between CPU, GPU, and NVMe storage devices. Whether for gaming, rendering, or professional applications, this ensures smooth and reliable performance. The Audio Boost feature provides studio-quality sound, delivering rich and immersive audio for gaming, media consumption, and content creation.

To guarantee long-term durability, the Steel Armor design reinforces VGA slots, protecting graphics cards against bending and electromagnetic interference (EMI). This not only increases stability but also enhances system robustness under high-performance loads.

Buy the MSI PRO H610M-G DDR5 mATX Motherboard from Tech Buy BD. In Bangladesh, you can get the latest MSI motherboards for your desktop PC. Order online or visit Tech Buy BD to get yours at the best price. The MSI PRO H610M-G DDR5 mATX Motherboard comes with a 3-year warranty.
