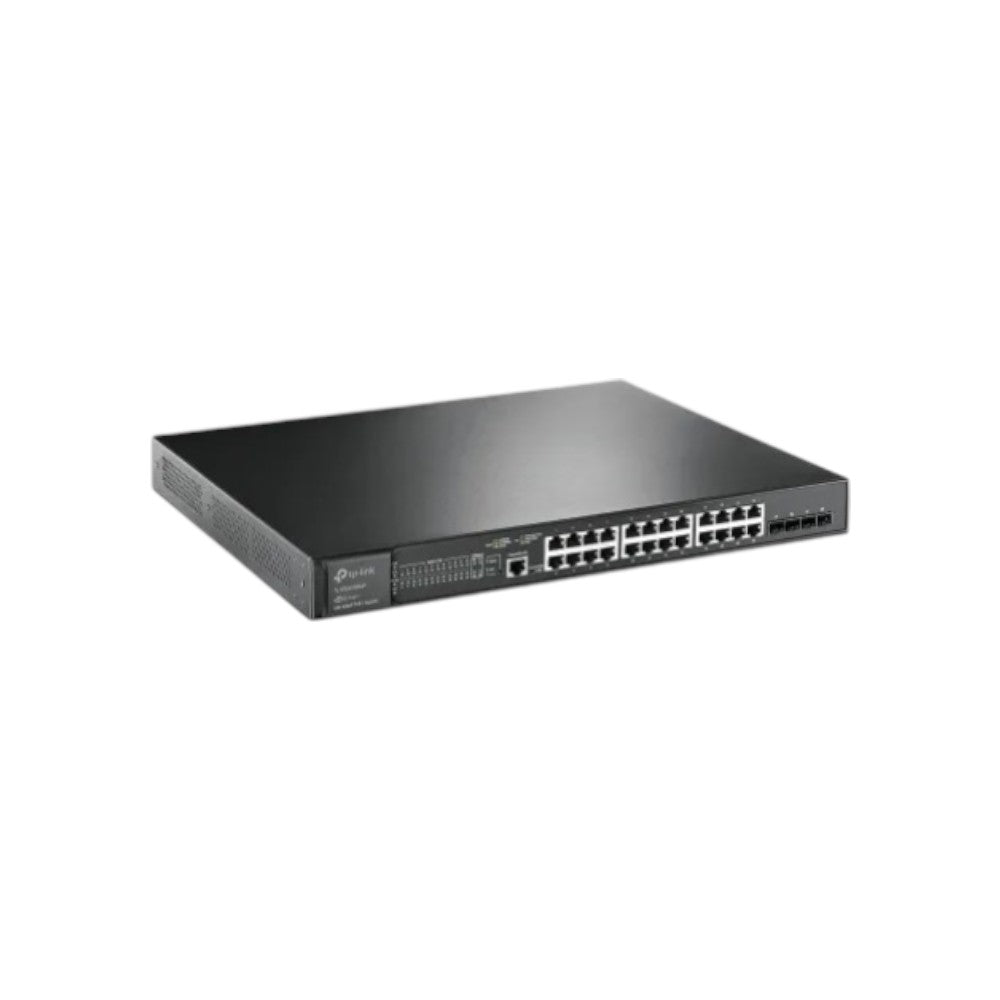

TP-Link TL-SG3428XMP JetStream 24-Port L2+ Managed Gigabit PoE Switch

Tk 40,990
Tk 45,089
Tk 40,990
Brand: Tp-Link
SKU: TL-SG3428XMP
Availability: In stock

Key Features

Interface: 24× 10/100/1000 Mbps RJ45 Ports

Switching Capacity: 128 Gbps

MAC Address Table: 16K

PoE Power Budget: 384W

Subtotal: Tk 40,990

Specification

Main Features

Type Gigabit Smart Switch
Data Transmission Rate Switching Capacity: 128 Gbps
Packet Forwarding Rate: 95.23 Mpps
Packet Buffer Memory: 12 Mbit
Jumbo Frame: 9 KB
MAC Address Table 16K
Environment Operating Temperature: 0℃~40℃ (32℉~104℉);
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing



Hardware Features

Interface 24× 10/100/1000 Mbps RJ45 Ports
4× 10G SFP+ Slots
1× RJ45 Console Port
1× Micro-USB Console Port
Power Supply 100-240 V AC~50/60 Hz
PoE Power: 150 W
Dimensions (L x W x H) 17.3 × 13.0 × 1.7 in (440 × 330 × 44 mm)



Warranty Information

Warranty 1 Year warranty


Description

TP-Link TL-SG3428XMP JetStream 24-Port L2+ Managed Gigabit PoE Switch

The TP-Link TL-SG3428XMP JetStream 24-Port L2+ Managed Gigabit PoE Switch is a powerful networking solution designed for enterprise environments that require high performance, scalability, and reliable PoE connectivity. It features twenty-four Gigabit PoE+ ports and four 10G SFP+ slots, providing extensive connectivity options for high-bandwidth applications and advanced network infrastructures. For flexible device management, the switch also includes both a Micro-USB Console Port and an RJ45 Console Port.

Compliant with IEEE 802.3af/at standards, the TL-SG3428XMP offers a substantial total PoE power budget of 384W, delivering up to 30W per PoE+ port. This allows efficient power delivery to devices such as wireless access points, IP cameras, and VoIP phones through a single Ethernet cable. With a switching capacity of 128Gbps and a packet forwarding rate of 95.23Mpps, the switch ensures smooth and uninterrupted data transmission even in demanding network environments.

Equipped with a 12Mbit packet buffer and a MAC address table supporting up to 16K entries, the TL-SG3428XMP efficiently manages large numbers of connected devices while maintaining stable performance. Support for jumbo frames up to 9KB further improves data transfer efficiency for large packets and bandwidth-intensive applications. Combining strong PoE capabilities, high-speed uplink options, and advanced performance features, this JetStream managed switch is ideal for modern enterprise networks requiring dependable and scalable infrastructure.

Buy the TP-Link TL-SG3428XMP JetStream 24-Port L2+ Managed Gigabit PoE Switch from Tech Buy at the best price. Order online or visit your nearest Tech Buy showroom.
