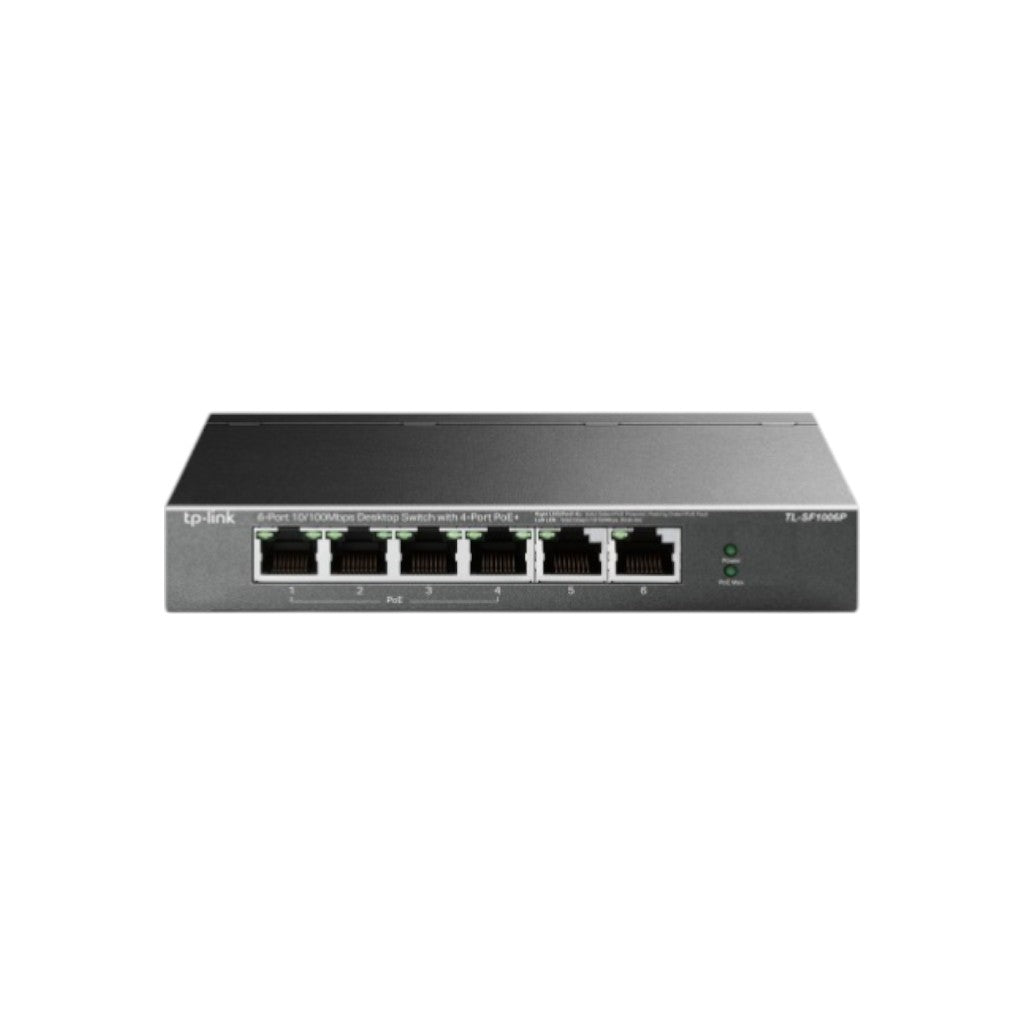

TP-Link TL-SF1006P 6-Port 10/100Mbps Desktop PoE Switch with 4-Port PoE+

TP-Link TL-SF1006P 6-Port 10/100Mbps Desktop PoE Switch with 4-Port PoE+

Tk 3,090
Tk 3,149
Tk 3,090
Brand: Tp-Link
SKU: TL-SF1006P
Availability: In stock

Key Features

6 x 10/100 Mbps RJ45 ports

4 x PoE+ ports transfer data and power on individual cables

Works with IEEE 802.3af/at compliant PDs

Transmission Distance up to 250 m

Ask an expert
Subtotal: Tk 3,090
Description

Specification

Main Features

Network Standard 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
Advanced Functions Compatible With IEEE 802.3af/at Compliant PDs
Extend Mode Button (Ports 1–4)
Priority Mode Button (Ports 1–2)
Mac Address Auto-Learning and Auto-Aging
IEEE802.3x Flow Control For Full-Duplex Mode and Backpressure for Half-Duplex Mode
Transmission Method Store-And-Forward
Data Transmission Rate 0.8928 Mpps
MAC Address Table 2K
Environment Operating Temperature: 0–40 ℃ (32–104 ℉)
Storage Temperature: -40–70 ℃ (-40–158 ℉)
Operating Humidity: 10–90% RH non-condensing
Storage Humidity: 5–90% RH non-condensing



Hardware Features

Interface 6× 10/100 Mbps RJ45 Ports (ports 1–4 support 802.3af/at PoE+)
AUTO Negotiation
AUTO MDI/MDIX
Power Supply External Power Adapter (Output: 53.5 V DC / 1.31 A)

Max Power Consumption:
1.9 W (220 V / 50 Hz, no PD connected)
74 W (220 V / 50 Hz, with 67 W PD connected)
Dimensions (L x W x H) 6.2 x 4.0 x 1.0 in (158 x 101 x 25 mm)



Warranty Information

Warranty 1 Year warranty


Description

TP-Link TL-SF1006P 6-Port 10/100Mbps Desktop PoE Switch with 4-Port PoE+

The TP-Link TL-SF1006P 6-Port 10/100Mbps Desktop PoE Switch is a professional high-power networking solution designed to deliver both data and electrical power through a single Ethernet cable. It features six 10/100Mbps RJ45 ports, including four PoE+ ports that support IEEE 802.3af/at standards. Each PoE+ port can provide up to 30W of power, making it ideal for powering IP cameras, wireless access points, IP phones, and other compatible powered devices without requiring separate power adapters.

Supporting PoE transmission for surveillance up to 250 meters, the TL-SF1006P is well-suited for security and monitoring setups. With a total power budget of up to 67W, the switch includes intelligent power management that automatically prioritizes high-priority ports and cuts power to lower-priority ports if the total consumption exceeds the limit. This feature protects the device from overload while ensuring stable performance for critical equipment. It also automatically detects and supplies the appropriate power required by connected PoE devices, safeguarding both PoE and non-PoE equipment from damage.

Built with a durable metal casing, the switch ensures long-lasting reliability and efficient heat dissipation. Its plug-and-play design allows easy installation without configuration, making it a dependable choice for small offices, surveillance systems, and home networking environments.

Buy the TP-Link TL-SF1006P 6-Port 10/100Mbps Desktop PoE Switch from Tech Buy at the best price. Order online or visit your nearest Tech Buy showroom.
