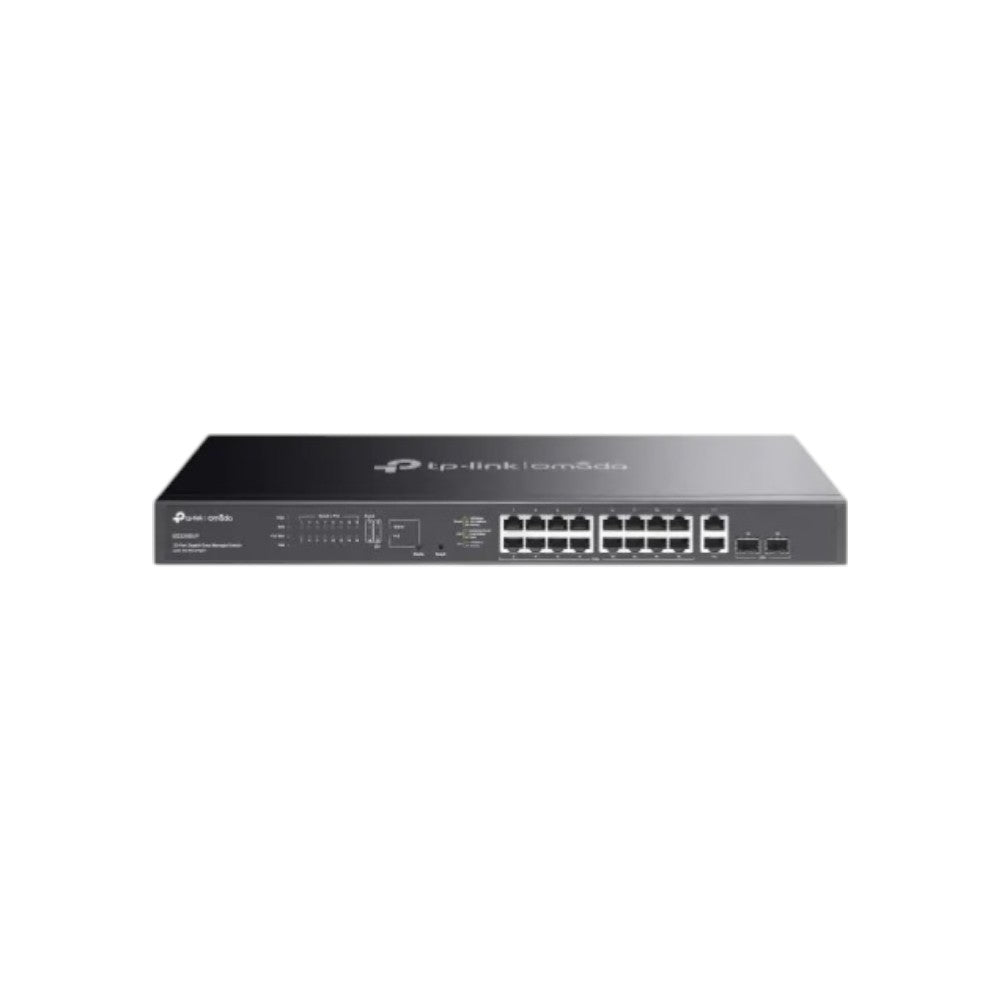

TP-Link Omada ES220GMP 20-Port Gigabit Easy Managed Switch with 16-Port PoE+
The TP-Link Omada ES220GMP 20-Port Gigabit Easy Managed Switch is a powerful networking solution designed for enterprise surveillance systems and professional network deployments. It features sixteen 10/100/1000Mbps RJ45 ports supporting IEEE 802.3af/at PoE+ standards, along with two Gigabit RJ45 uplink ports and two Gigabit SFP ports for flexible fiber connectivity. With a substantial 250W PoE power budget and up to 30W output per PoE+ port, the switch efficiently powers devices such as IP cameras, wireless access points, and VoIP phones. It also supports advanced PoE features including Fast PoE, Perpetual PoE, PoE Auto Recovery, and extended PoE transmission up to 250 meters.
The ES220GMP delivers reliable performance with a switching capacity of 40Gbps, a forwarding rate of 29.76Mpps, an 8K MAC address table, and a 4Mbit packet buffer, ensuring smooth handling of heavy network traffic. Support for jumbo frames up to 15KB further enhances large data transfer performance. Advanced Layer 2 features include static link aggregation, loop prevention, loopback detection, IEEE 802.3x flow control, port mirroring, LLDP, and IGMP Snooping v1/v2/v3 with fast leave functionality. VLAN capabilities support MTU VLAN, port-based VLAN, and 802.1Q tagging with up to 32 VLAN groups and 4K VIDs. Quality of Service (QoS) includes eight priority queues, WRR scheduling, bandwidth control, and storm control for broadcast, multicast, and unknown traffic.
With Omada SDN integration, the switch provides centralized cloud management through the Omada app or web interface, supporting zero-touch provisioning, device discovery, batch configuration, firmware upgrades, DHCP client functionality, cable diagnostics, unified configuration, and secure remote access. Built with a durable metal rack-mountable chassis, dual cooling fans, ±6kV surge protection, and a physical security lock slot, it ensures stable and secure operation. The universal 100–240V power input further enhances its reliability for enterprise-grade networking environments.
