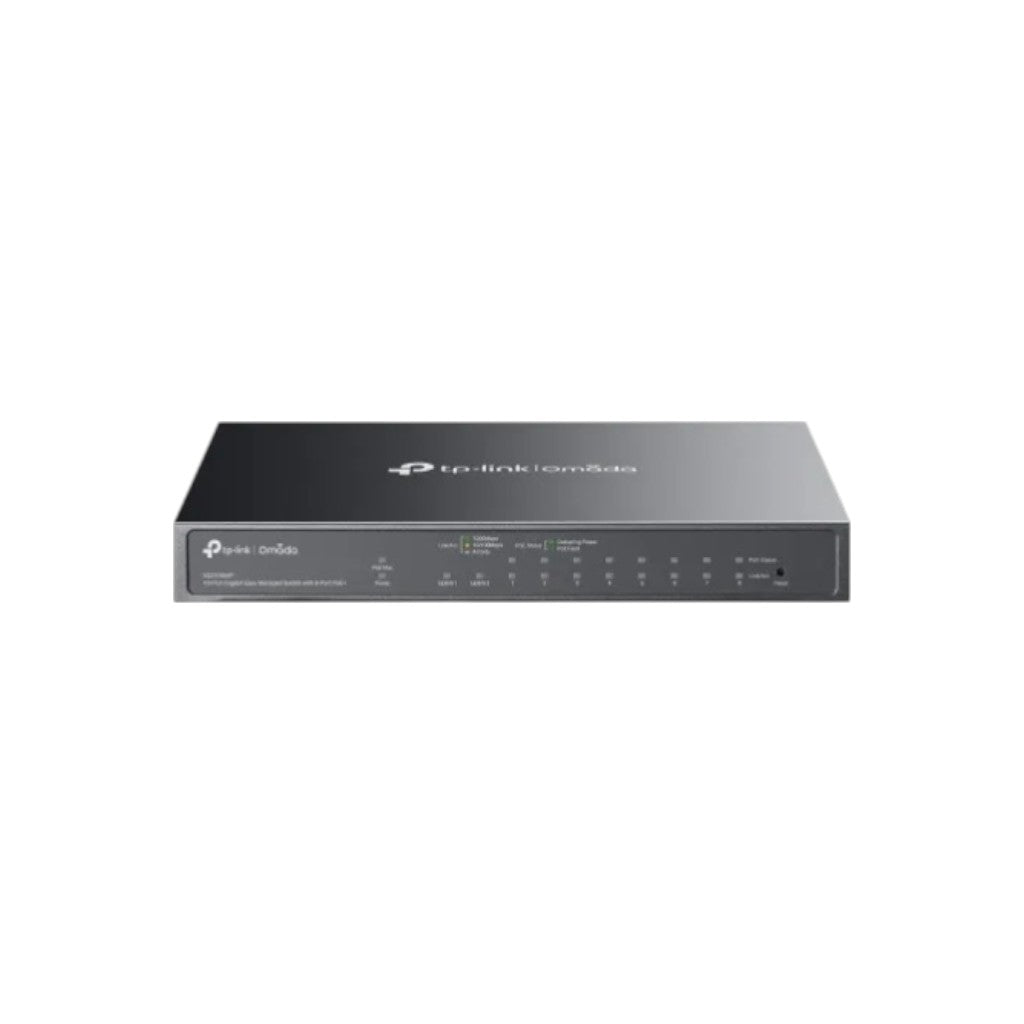

TP-Link Omada ES210GMP 10-Port Gigabit Easy Managed Switch with 8-Port PoE+

Tk 13,900
Tk 15,290
Tk 13,900
Brand: Tp-Link
SKU: Omada ES210GMP
Availability: In stock

Key Features

8× Gigabit 802.3at/af-compliant PoE+ RJ45 ports

1× Gigabit RJ45 port, 1× Gigabit SFP/RJ45 Combo port

123W Power Budget, with up to 30W for each PoE port

Up to 250m PoE transmission distance, PoE Auto Recovery

Subtotal: Tk 13,900

Specification

Main Features

Type Managed Switch
Network Standard 802.3af PoE and 802.3at PoE+ compliant
Transmission Method Store-And-Forward
Data Transmission Rate Switching Capacity: 20 Gbps
Packet Forwarding Rate: 14.88 Mpps
Packet Buffer Memory: 4 Mbit
Jumbo Frame: 15 KB
MAC Address Table 8K
Environment Operating Temperature: 0℃~40℃ (32℉~104℉);
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
Others ±6kV Surge Protection



Hardware Features

Interface 8× 10/100/1000 Mbps PoE+ RJ45 Ports (support 802.3at PoE+ and 802.3af PoE)
1× 10/100/1000 Mbps RJ45 Port
1× Gigabit SFP/RJ45 Combo Port
Auto-Negotiation/Auto MDI/MDIX
Power Supply DC Power Adapter (Output: 53.5 VDC/ 2.43 A)
PoE Budget: 123W available for all PoE+ ports, 30W max per port
Dimensions 8.2×4.9×1.0 in (209×126×26 mm)



Warranty Information

Warranty 2 Year warranty


Description

TP-Link Omada ES210GMP 10-Port Gigabit Easy Managed Switch with 8-Port PoE+

The TP-Link Omada ES210GMP 10-Port Gigabit Easy Managed Switch is a powerful and scalable networking solution designed for surveillance systems and business environments. It features eight 10/100/1000Mbps RJ45 ports that support IEEE 802.3af/at PoE+ standards, delivering up to 30W per port with a total PoE power budget of 123W. This makes it ideal for powering IP cameras, wireless access points, and VoIP phones directly through Ethernet cables. In addition, it includes one dedicated Gigabit RJ45 uplink port and one Gigabit SFP/RJ45 combo port, providing flexible uplink connectivity options.

Engineered for reliable performance, the switch supports PoE transmission distances up to 250 meters, along with PoE Auto Recovery, Quality of Service (QoS), and port isolation to ensure stable surveillance networking. With a switching capacity of 20Gbps, packet forwarding rate of 14.88Mpps, 8K MAC address table, 4Mbit packet buffer, and support for jumbo frames up to 15KB, it efficiently handles high data traffic and multiple connected devices. Advanced Layer 2 features include VLAN support for up to 32 groups with 802.1Q tagging, IGMP Snooping v1/v2/v3, loop prevention, static link aggregation, port mirroring, LLDP, storm control, and flow control. QoS functionality offers eight priority queues, bandwidth control, and WRR scheduling for optimized traffic management.

Integrated with Omada SDN, the ES210GMP provides centralized cloud management via the Omada app or web interface, supporting zero-touch provisioning, batch configuration, firmware upgrades, and unified network control. Its fanless metal design ensures silent operation, while ±6kV surge protection enhances durability. The switch supports both desktop and wall-mount installation and includes a physical security lock for added protection. With plug-and-play simplicity and enterprise-level management features, the TP-Link Omada ES210GMP delivers dependable, efficient, and expandable network performance.

Buy the TP-Link Omada ES210GMP 10-Port Gigabit Easy Managed Switch with 8-Port PoE+ from Tech Buy at the best price. Order online or visit your nearest Tech Buy showroom.
