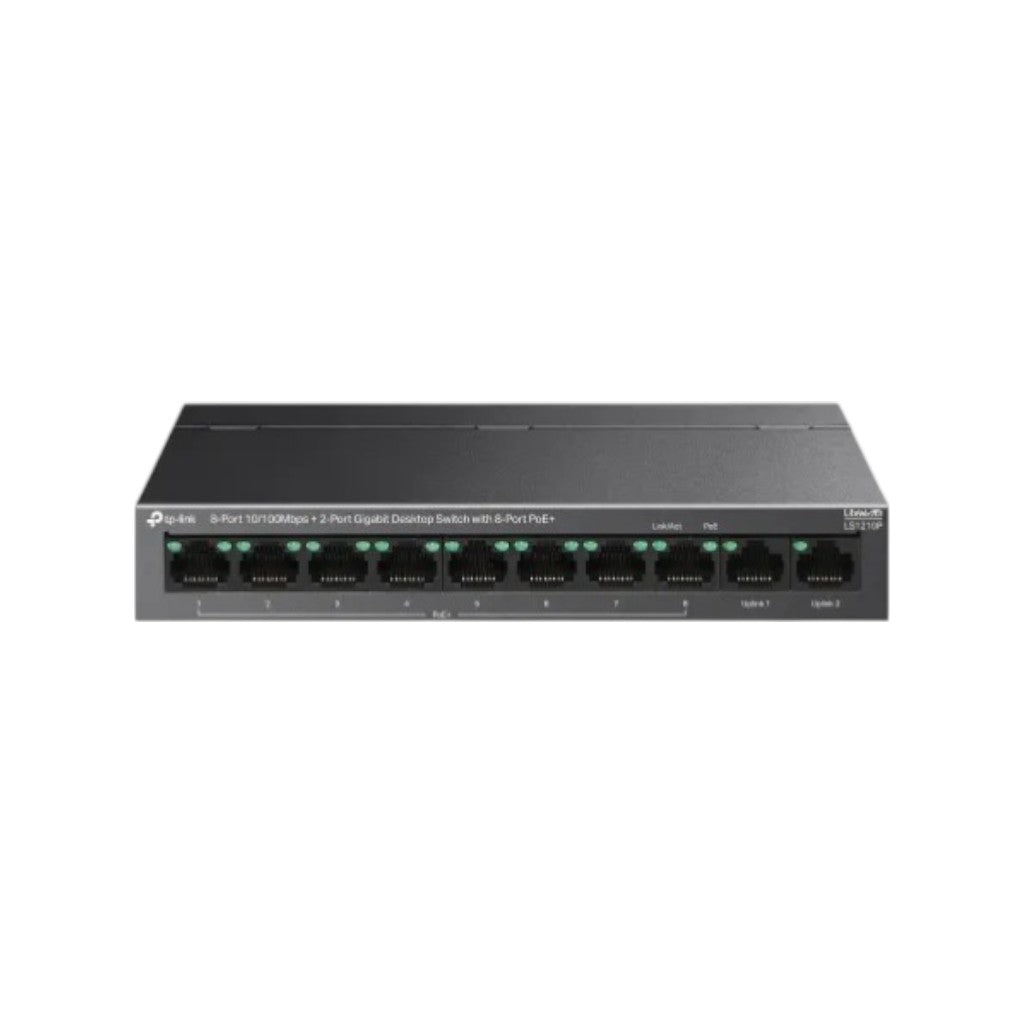

TP-Link LS1210P 8-Port PoE Desktop Switch With 2-Port Gigabit

TP-Link LS1210P 8-Port PoE Desktop Switch With 2-Port Gigabit

Tk 3,900
Tk 4,260
Tk 3,900
Brand: Tp-Link
SKU: LS1210P
Availability: In stock

Key Features

8× 10/100 Mbps PoE+ Ports

2x Gigabit non-PoE Ports

Up to 250m (820ft) Transmitting Range

96W Total PoE Budget (Max. 30W PoE Per Port)

Ask an expert
Subtotal: Tk 3,900
Description

Specification

Main Features

Port 8× 10/100 Mbps PoE+ Ports
2x Gigabit non-PoE Ports
Network Standard IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at, IEEE 802.3ab
Access Method 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
100BASE-TX: UTP category 5 or above cable (maximum 100m)
1000BASE-T: UTP category 5e or above cable (maximum 100m)
Advanced Functions Extend Mode (Ports 1-8)
Isolation Mode (Ports 1-8)
PoE Auto Recovery (Ports 1-8)
Transmission Method Store-And-Forward
Data Transmission Rate Switching Capacity: 5.6 Gbps
Packet Buffer Memory: 2 Mbit
Jumbo Frame: 2 KB
MAC Address Table 2K
Environment Operating Temperature 0°C to 40 °C (32 °F to 104°F )
Storage Temperature -40 °C to 70 °C (-40 °F to 158°F )
Operating Humidity 10% to 90% non-condensing
Storage Humidity 5% to 90% non-condensing



Hardware Features

LED Power, Link/Act, PoE Status
Power Supply External Power Adapter (Power Input: 220~240V, 50/60Hz (NV), Output: 53.5 VDC / 1.92 A)
PoE Ports (RJ45)
Standard: 802.3 af/at compliant
PoE Ports: Port 1- Port 8
Power Supply: 96 W
Max. Power Consumption: 99.52 W
Dimensions (L x W x H) 6.7×3.9×1.1 in (171×98×27 mm)



Warranty Information

Warranty 2 Year warranty


Description

TP-Link LS1210P 8-Port PoE Desktop Switch With 2-Port Gigabit

The TP-Link LS1210P 8-Port PoE Desktop Switch is a reliable and high-performance networking solution designed to power and connect multiple devices efficiently. It features eight 10/100Mbps PoE+ ports, each capable of delivering up to 30W of power, with a total PoE power budget of 96W. This makes it ideal for IP cameras, wireless access points, and VoIP phones. In addition to the PoE ports, it includes two Gigabit non-PoE ports that provide high-speed uplink connectivity for routers, servers, or NAS devices, ensuring smooth data transmission across the network.

The switch offers an Extend Mode that allows PoE data and power transmission up to 250 meters, providing flexible deployment in large homes, office spaces, or long corridors. Isolation Mode enables one-click traffic separation to enhance network security and reduce broadcast storms. With PoE Auto Recovery, the switch automatically detects and reboots unresponsive PoE devices, ensuring stable and continuous operation. Fully compliant with IEEE 802.3af/at standards, it supports seamless compatibility with a wide range of powered devices.

Designed with a fanless structure for silent operation, the LS1210P is suitable for quiet environments such as reception areas and workspaces. It delivers a switching capacity of 5.6Gbps and a forwarding rate of 4.1664Mpps, supported by a 2Mbit packet buffer for smooth traffic handling under heavy loads. Additional features include support for 2KB jumbo frames, store-and-forward transmission, AUTO MDI/MDIX, and LED indicators for quick status monitoring. It operates using an external 53.5VDC 1.92A power adapter with a maximum power consumption of 99.52W. Compact and versatile, the TP-Link LS1210P can be placed on a desktop or mounted on a wall, making it a practical solution for expanding growing networks.

Buy the TP-Link LS1210P 8-Port PoE Desktop Switch from Tech Buy at the best price. Order online or visit your nearest Tech Buy showroom.
