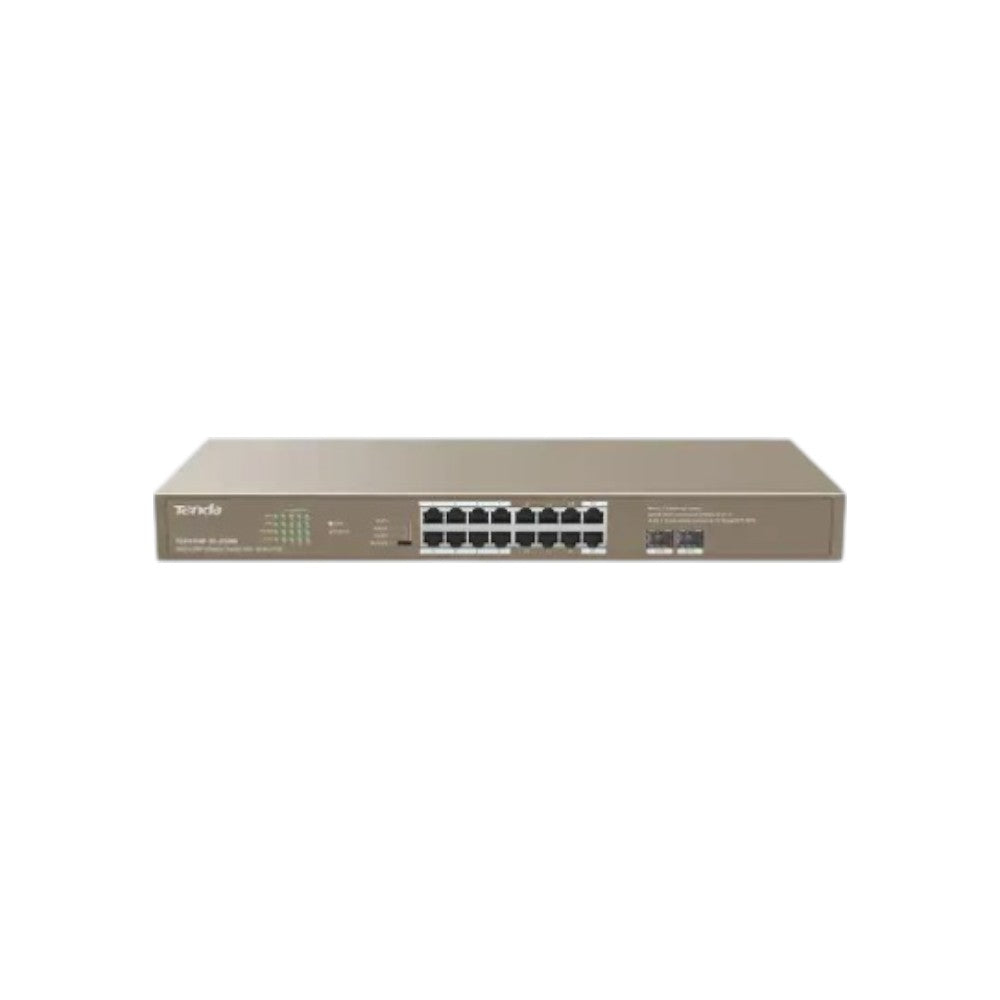

Tenda TEG1118P-16-250W 16GE+2SFP 16 Port Unmanaged PoE Switch

Tk 20,480
Tk 22,430
Tk 20,480
Brand: Tenda
SKU: TEG1118P-16-250W
Availability: In stock

Key Features

Interfaces: 16x 10/100/1000 Base-T ports (Data/Power)

LED Indicator: 16x Link/Act , 2x SFP, 1x PoE, 1x Power

Switch capacity: 36bps

MAC address table: 8K

Subtotal: Tk 20,480

Specification

Main Features

Network Standard IEEE 802.3/IEEE 802.3u/IEEE 802.3ab/IEEE 802.3x/ IEEE 802.3af/IEEE 802.3at
Advanced Functions Lightning protection for uplink ports: 6KV
Lightning protection for power: 6KV
ESD:
Air discharge: ±10kV
Contact discharge: ±8kV
Transmission Method Recommended: CAT5/5e UTP or better
Data Transmission Rate Forwarding mode: Store-and-forward
Switch capacity: 36bps
Packet forwarding rate: 26.8Mpps
MAC Address Table 8K
Environment Operating Temperature: 0℃~45℃
Storage Temperature: -40℃~70℃
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing



Hardware Features

Interface 16x 10/100/1000 Base-T ports(Data/Power)
LED 16x Link/Act LEDs
2x SFP LED
1x PoE-MAX LED
1x Power LED
Power Supply 100-240V AC 50/60Hz
Dimensions (L x W x H) 440x178.8x44mm



Warranty Information

Warranty 1 Year warranty


Description

Tenda TEG1118P-16-250W 16GE+2SFP 16-Port Unmanaged PoE Switch

The Tenda TEG1118P-16-250W 16GE+2SFP 16-Port Unmanaged PoE Switch is designed to deliver high-performance networking and power supply for surveillance systems, enterprise networks, and business environments. It features sixteen Gigabit Ethernet ports that support both data transmission and Power over Ethernet (PoE), allowing devices such as IP cameras, wireless access points, and IP phones to receive power and connectivity through a single Ethernet cable. The switch also includes two SFP ports, enabling fiber optic connections for long-distance network expansion and high-bandwidth uplink connectivity.

Built to ensure reliable network performance, the switch offers a large switching capacity, high packet forwarding rate, and a substantial buffer with a MAC address database to manage multiple devices efficiently. Using store-and-forward switching technology, it ensures accurate and stable data transmission across the network. The device is equipped with advanced protection mechanisms including 6kV lightning protection and ESD protection, safeguarding both the switch and connected devices from electrical surges and static discharge. LED indicators display the status of power, ports, and PoE usage, making monitoring and troubleshooting easier.

Designed for flexible deployment, the TEG1118P-16-250W comes with a standard 19-inch 1U rack-mount metal enclosure suitable for network cabinets and racks. It also supports desktop placement and wall mounting for different installation environments. With its robust design, reliable protection features, and efficient PoE capability, the Tenda TEG1118P-16-250W provides a dependable and cost-effective networking solution for small and medium-sized businesses, schools, hotels, and surveillance deployments.

Buy the Tenda TEG1118P-16-250W 16-Port Unmanaged PoE Switch from Tech Buy at the best price. Order online or visit your nearest Tech Buy showroom.
