Tenda TEG1016M 16 Port Gigabit Ethernet Metal Body Switch

Tk 4,500
Tk 4,900
Tk 4,500
Brand: Tenda
SKU: TEG1016M
Availability: In stock

Key Features

Interface: 16x10/100/1000

Switch Capacity: 32Gbps

MAC Address Table: 8K

Function: plug-and-play

Subtotal: Tk 4,500

Specification

Main Features

Network Standard IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3ab
Transmission Method Ethernet: CAT3 UTP or better
Fast Ethernet: CAT5 UTP or better
Gigabit Ethernet: CAT5e UTP or better
Data Transmission Rate 2000 Mbps
MAC Address Table 8K
Environment Operating temperature: 0°C - 45℃
Storage temperature: -40°C - 70°C
Operating humidity: (10% - 90%) RH, non-condensing
Storage humidity: (5% - 90%) RH, non-condensing



Hardware Features

Interface 16x10/100/1000Base-T Ethernet ports
LED One Link/Act LED indicator for each Gigabit port
One Power LED indicator for each device
Power Supply Input: 100 - 240V AC 50/60Hz, 0.4A
Output: 12V 1A
Power consumption: Max: <12 W
Dimensions (L x W x H) 235mmx103mmx27mm



Warranty Information

Warranty 1 Year warranty


Description

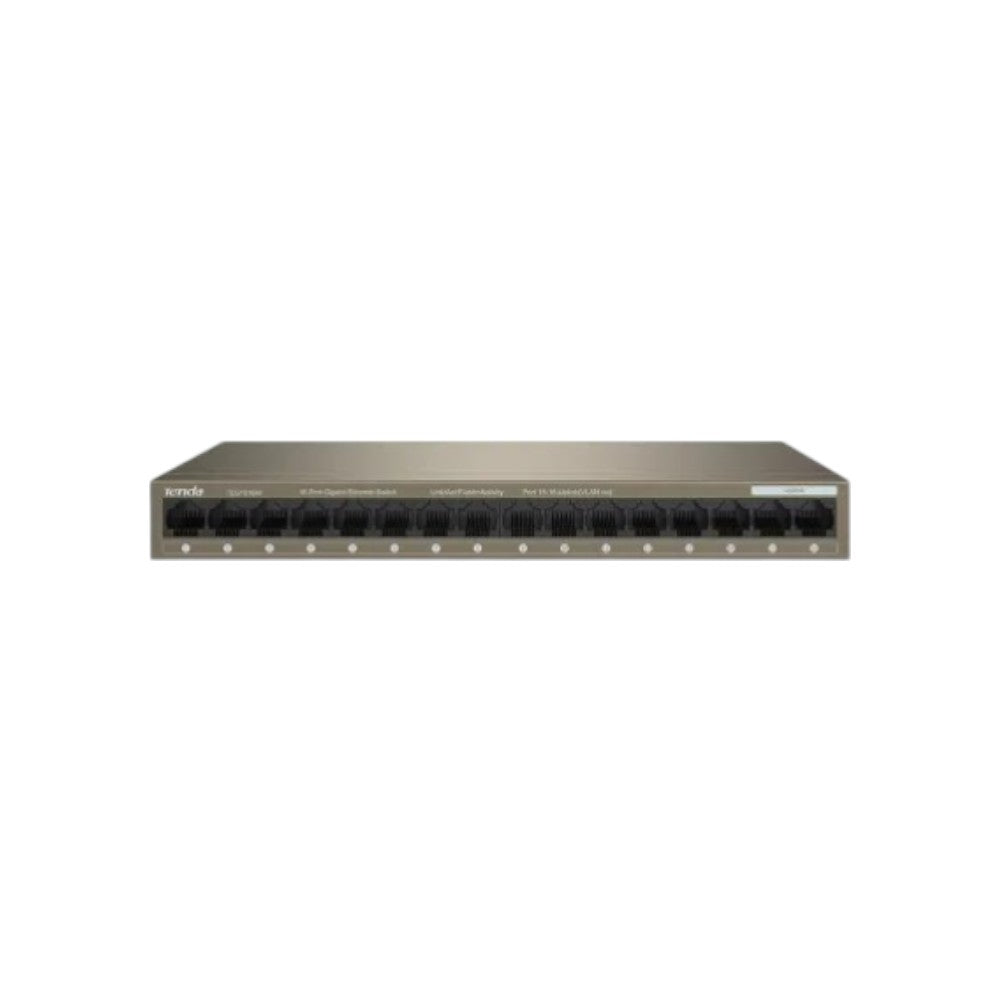

Tenda TEG1016M 16-Port Gigabit Ethernet Metal Body Switch

The Tenda TEG1016M 16-Port Gigabit Ethernet Metal Body Switch is designed to provide high-speed and reliable wired networking for offices, surveillance systems, and small to medium-sized businesses. Equipped with sixteen 10/100/1000Mbps auto-negotiation RJ45 ports, the switch supports full-duplex transmission speeds of up to 2000Mbps, allowing fast delivery of large data files and smooth video streaming. All ports support wire-speed forwarding, ensuring stable performance even for bandwidth-intensive tasks such as network surveillance or large data transfers.

Built with a compact and durable metal casing, the TEG1016M features a fanless design that ensures silent operation while maintaining effective heat dissipation. It also includes advanced lightning protection with up to 6kV surge protection on each port, improving durability and ensuring reliable operation even in challenging environments. The switch uses a high-performance chipset that enhances network load capacity and provides stable connectivity for multiple connected devices such as computers, IP cameras, and other networking equipment.

For easier monitoring and troubleshooting, each port includes an LED indicator that displays connection and activity status. The device uses hidden soft-light LEDs that reduce visual distraction while working. With its plug-and-play functionality, the switch requires no configuration and can be quickly deployed in any network environment. Supporting both desktop placement and wall mounting, the Tenda TEG1016M offers a cost-effective and dependable solution for expanding high-speed wired networks in offices, stores, and residential setups.

Buy the Tenda TEG1016M 16-Port Gigabit Ethernet Metal Body Switch from Tech Buy at the best price. Order online or visit your nearest Tech Buy showroom.
