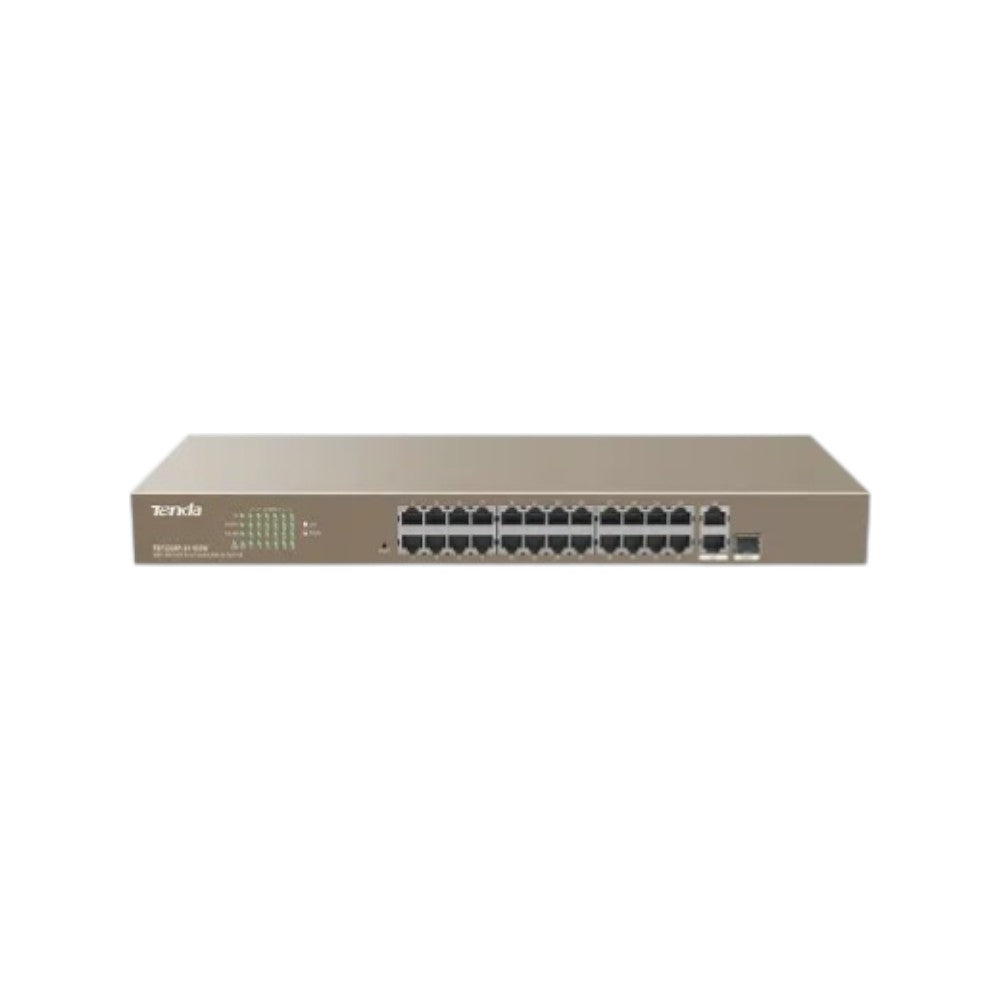

Tenda TEF1226P-24-410W 24 Port PoE Smart Switch

Tenda TEF1226P-24-410W 24 Port PoE Smart Switch

Tk 24,200
Tk 26,600
Tk 24,200
Brand: Tenda
SKU: TEF1226P-24-410W
Availability: In stock

Key Features

24 x 10/100 Mbps Base-TX RJ45 ports

2 x 10/100/1000 Mbps Base-T RJ45 ports

1 x 1000 MbpsBase-X combo SFP slot

6 kV lightning protection, Smart Web management

Ask an expert
Subtotal: Tk 24,200
Description

Specification

Main Features

Network Standard IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE802.3x,
IEEE802.1p, IEEE802.1q, IEEE802.1w, IEEE802.1d, IEEE802.3af/at
Advanced Functions Lightning Protection: 6KV
Transmission Method Wired
Data Transmission Rate Forwarding Rates: 6.55 Mpps
Switching capacity: 8.8 Gbps
MAC Address Table 16K
Environment Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing



Hardware Features

Interface 24 x 10/100 Mbps Base-TX RJ45 ports (Data/Power)
2 x 10/100/1000 Mbps Base-T RJ45 ports (Data)
1 x 1000 Mbps Base-X SFP port (Combo)
LED 24 * Link/Act LEDs
1 * G1 LED
1 * G2/SFP2 LED
1 * PoE-MAX LED
1 * Power LED
1 * SYS LED
Power Supply Ports 1-24 support standard IEEE802.3af/at
30W output per PoE port
370W output of the total PoE Power
Dimensions (L x W x H) 440*284*44mm



Warranty Information

Warranty 1 Year warranty


Description

Tenda TEF1226P-24-410W 24-Port PoE Smart Switch

The Tenda TEF1226P-24-410W 24-Port PoE Smart Switch is designed to provide reliable networking and power delivery for enterprise surveillance systems, wireless networks, and business environments. Equipped with twenty-four IEEE 802.3af/at compliant RJ45 PoE ports, the switch can intelligently detect connected powered devices and deliver both data and power through standard CAT5 Ethernet cables. With a maximum PoE power output of up to 370W and up to 30W per port, it is capable of powering multiple PoE-enabled devices such as IP cameras, wireless access points, and IP phones simultaneously, making it ideal for large-scale monitoring and network deployments.

The switch features Gigabit uplink connectivity with a 1000Mbps combo SFP slot, allowing high-speed data transmission to upstream network devices and supporting fiber connections for extended network coverage. It also supports a 250-meter long-distance power supply capability, enabling flexible installation for surveillance cameras and access points located far from the central network infrastructure.

Designed with intelligent management capabilities, the TEF1226P-24-410W supports advanced networking features including 802.1Q VLAN, link aggregation, Quality of Service (QoS), and MAC address binding. These functions help improve network performance, enhance traffic prioritization, and simplify network management. For reliable operation in demanding environments, the switch is built with comprehensive protection mechanisms such as 6kV lightning protection, PoE overload protection, PSE short-circuit protection, and surge current protection. With smart web-based management and robust performance, the Tenda TEF1226P-24-410W provides a powerful and efficient PoE networking solution for modern surveillance and wireless deployments.

Buy the Tenda TEF1226P-24-410W 24-Port PoE Smart Switch from Tech Buy at the best price. Order online or visit your nearest Tech Buy showroom.
