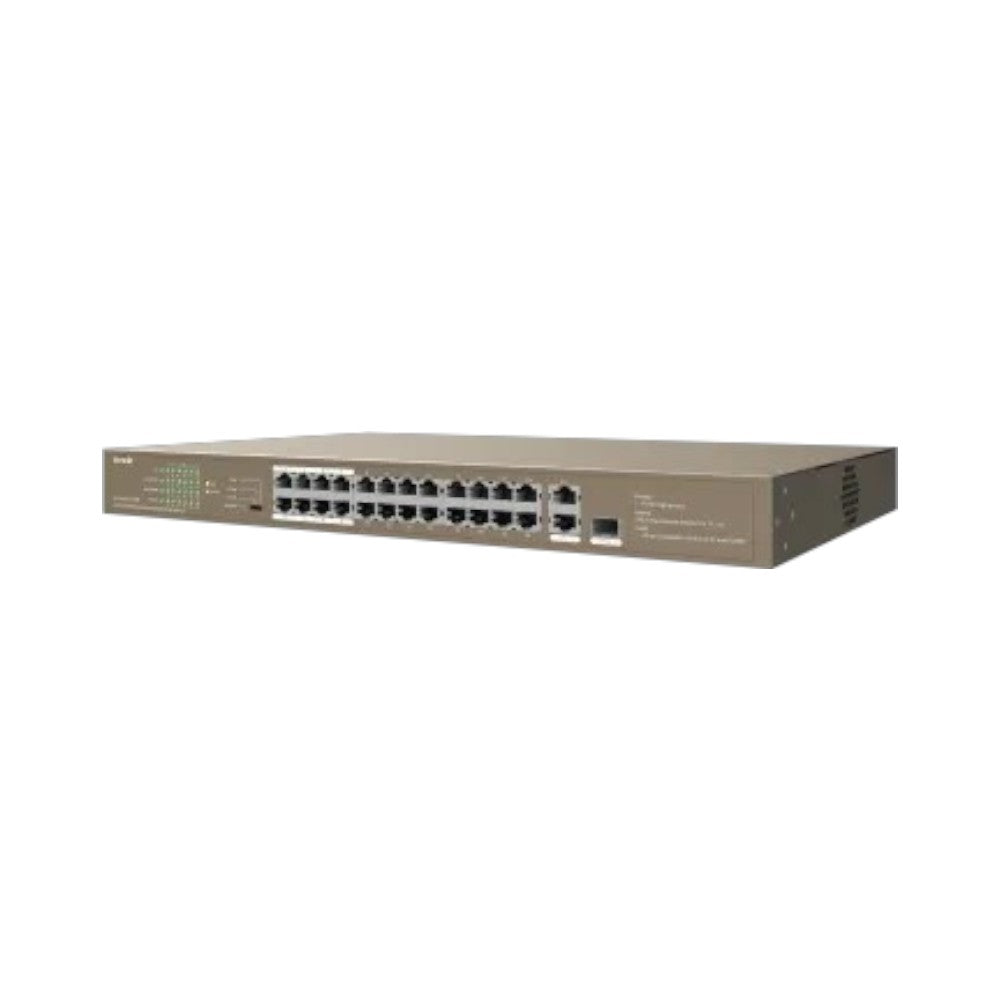

Tenda TEF1126P-24-250W 24 Port PoE Gigabit Switch

Tk 16,200
Tk 18,249
Tk 16,200
Brand: Tenda
SKU: TEF1126P-24-250W
Availability: In stock

Key Features

24 10/100Mbps RJ45 Ports(Data/PoE)

1 10/100/1000Mbps RJ45 Ports(Data)

1 100/1000Mbps SFP Slot(Data)

6 kV lightning protection

Subtotal: Tk 16,200

Specification

Main Features

Network Standard IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE802.3x, IEEE802.3af/at
Advanced Functions Lightning Protection: 6KV
Transmission Method Recommended: CAT5/5e UTP or better
Data Transmission Rate Forwarding Rates: 6.55 Mpps
Switching capacity: 8.8 Gbps
MAC Address Table 16K
Environment Operating Temperature: 0℃~45℃
Storage Temperature: -40℃~70℃
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing



Hardware Features

Interface 24 * 10/100 Base-TX Ethernet ports (Data/Power)
2 * 10/100/1000 Base-T Ethernet ports (Data)
1 * 1000 Base-X SFP port (Combo)
LED 24 * Link/Act LEDs
1 * G1 LED
1 * G2/SFP2 LED
1 * PoE-MAX LED
1 * Power LED
Power Supply Ports 1-24 support standard IEEE802.3af/at
30W output per PoE port
370W output of the total PoE Power
Dimensions (L x W x H) 440.0mmx178.8mmx44.0mm



Warranty Information

Warranty 1 Year warranty


Description

Tenda TEF1126P-24-250W 24-Port PoE Gigabit Switch

The Tenda TEF1126P-24-250W 24-Port PoE Gigabit Switch is an unmanaged networking solution designed to support large-scale surveillance and wireless networking environments. Compliant with IEEE 802.3af and IEEE 802.3at standards, the switch intelligently detects connected PoE devices and supplies power accordingly. It provides up to 30W per port with a maximum PoE power budget of up to 230W, allowing it to power devices such as IP cameras, wireless access points, and IP phones while simultaneously transmitting data through standard Ethernet cables. This makes it a reliable solution for small and medium-sized businesses, schools, hotels, and factories with surveillance and networking requirements.

The switch features 24 Fast Ethernet PoE ports along with two Gigabit uplink ports and one SFP combo slot, offering flexible connectivity options for network expansion. The Gigabit uplink ports allow fast connections to upstream network devices, while the SFP slot enables long-distance fiber communication when used with compatible optical modules such as the Tenda TEG311SM, supporting transmission distances of up to 20 kilometers. A built-in 4MB large buffer ensures stable data handling and smooth transmission even during high traffic loads.

To enhance network flexibility, the TEF1126P-24-250W supports four working modes including Standard mode, Priority mode, VLAN mode, and Extend mode. These modes allow the switch to adapt to different networking scenarios such as surveillance systems or wireless network deployments. Designed with reliability in mind, the switch offers multiple protection mechanisms including 6kV lightning protection, PoE overload protection, short-circuit protection, and surge current protection. With wide voltage input support from 100V to 240V AC, it ensures stable operation across various power environments.

Buy the Tenda TEF1126P-24-250W 24-Port PoE Gigabit Switch from Tech Buy at the best price. Order online or visit your nearest Tech Buy showroom.
