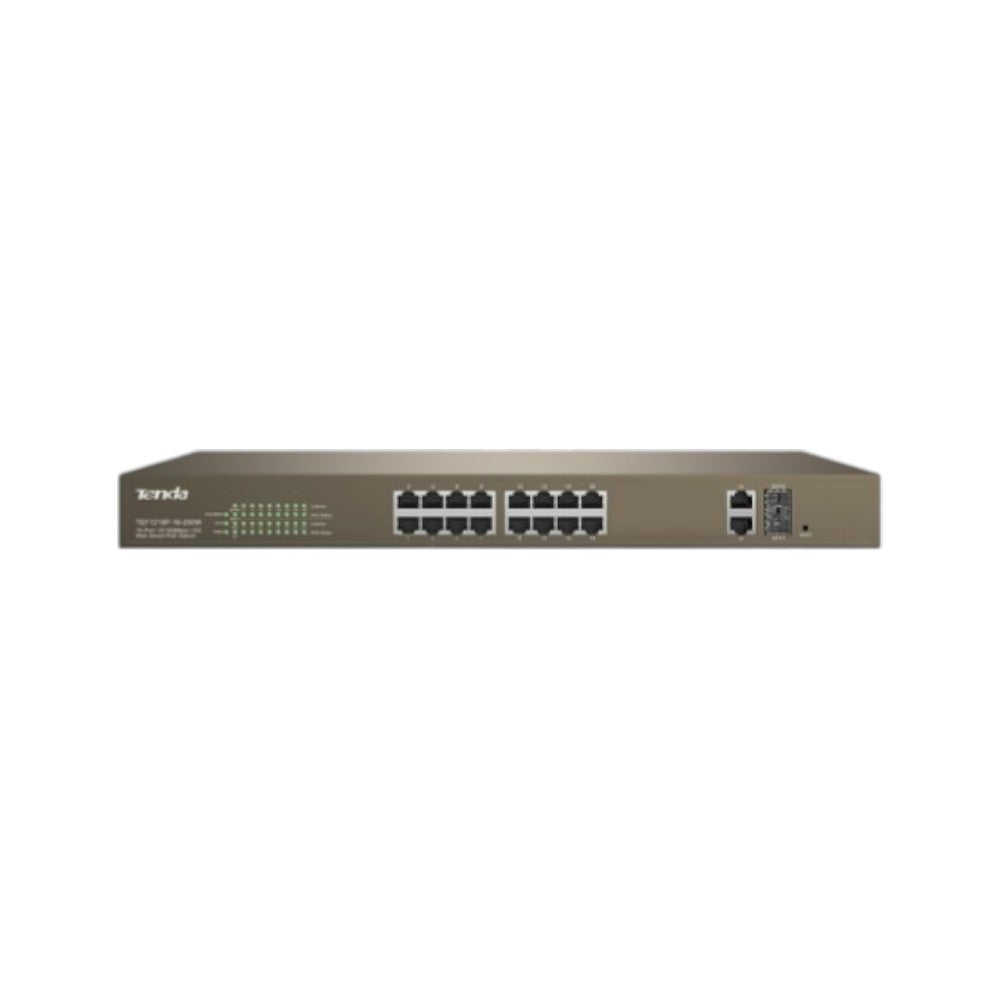

Tenda TEF1118P-16-150W 16 10/100Mbps PoE +1 Gigabit/SFP Slots Switch

Tenda TEF1118P-16-150W 16 10/100Mbps PoE +1 Gigabit/SFP Slots Switch

Tk 13,690
Tk 15,200
Tk 13,690
Brand: Tenda
SKU: TEF1118P
Availability: In stock

Key Features

total power is 230W

6KV lightning protection

Lead security transmission

Up to 250 meters long transmission

Ask an expert
Subtotal: Tk 13,690
Description

Specification

Main Features

Type Switch
Port 16 10/100 Mbps Base-TX ports(Data/Power)
1 10/100/1000 Mbps Base-T port(Data)
1 1000 Mbps Base-X SFP port
Network Standard IEEE 802.3、 IEEE 802.3u、IEEE 802.3x、IEEE 802.3af
Access Method 1 10/100/1000 Mbps Base-T port(Data)
1 1000 Mbps Base-X SFP port
Advanced Functions 6KV Lightning Protection
Store and forward:Yes
CCTV： 1-8 ports support QoS，If multiple IP cameras are connected to the switch, you are recommended to enable this mode and connect the G1 or SFP1 port of this switch to the upstream device，like the monitoring computer. This ensures smoother monitoring video playback.
Standard： The switch’s functions are similar with a common unmanaged switch’s and all the ports of the switch can communicate with each other.
VLAN： In this mode, 1-16 ports of the switch cannot communicate with each other, but can communicate with the G1 and SFP1 ports. It can be used to isolate broadcast storms and DHCP broadcasts.
Extend： In this mode, the data rate of 1-8 port is limited to 10 Mbps, whereas the maximum transmission distance of the port is increased to 250 meters. All the ports of the switch can communicate with each other.
Transmission Method Wired
Data Transmission Rate 16 10/100 Mbps Base-TX ports(Data/Power)
1 10/100/1000 Mbps Base-T port(Data)
MAC Address Table 4K MAC
Environment Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing



Hardware Features

Interface 16 10/100Base-TX ports(Data/Power)
1 10/100/1000Base-T port(Data)
1 1000Base-X SFP port
LED 16*Link/Act per device
1*G1 Link/Act per device
1*SFP Link/Act per device
1*PoE-MAX per device
1*Power per device
Power Supply PoE supply management:
PoE supply management: Port 1 to Port 16 support IEEE802.3at/af POE standard
Input Power: AC：100-240V～ 50/60Hz
Power Consumption:
in full configuration：<150W
PoE Max Power Supply：135W
Dimensions (L x W x H) 294 x 178 x 44 mm ( W x D x H )



Warranty Information

Warranty 1 Year warranty


Description

Tenda TEF1118P-16-150W 16-Port 10/100Mbps PoE + 1 Gigabit/SFP Slot Switch

The Tenda TEF1118P-16-150W is a powerful PoE network switch designed for surveillance systems, small businesses, and enterprise network environments. It features sixteen 10/100Mbps Base-TX RJ45 PoE ports along with one 10/100/1000Mbps Gigabit RJ45 port and one 1000Mbps SFP slot, providing flexible connectivity options for both copper and fiber networks. Ports 1–16 comply with IEEE 802.3af and IEEE 802.3at PoE standards and can deliver up to 30W of power per port, with a total PoE power budget of up to 135W. This allows the switch to power devices such as IP cameras, wireless access points, and IP phones while simultaneously transmitting data through standard CAT5 cables.

To enhance network efficiency and simplify management, the switch provides multiple working modes including CCTV, VLAN, and Extend. CCTV mode prioritizes video data through QoS for smoother surveillance monitoring, especially when multiple IP cameras are connected. VLAN mode isolates ports to prevent broadcast storms and reduce DHCP traffic interference, while Extend mode increases the transmission distance of ports up to 250 meters, making it ideal for long-distance surveillance deployments.

Built with professional lightning protection technology, the TEF11 series switches feature 6kV surge protection for both ports and power supply, safeguarding network equipment from lightning strikes and electrical surges. This design significantly enhances reliability and protects the entire monitoring network infrastructure during thunderstorms. With its durable design and practical features, the Tenda TEF1118P-16-150W switch offers a stable and efficient solution for building secure surveillance and networking systems.

Buy the Tenda TEF1118P-16-150W 16-Port PoE Switch from Tech Buy at the best price. Order online or visit your nearest Tech Buy showroom.
