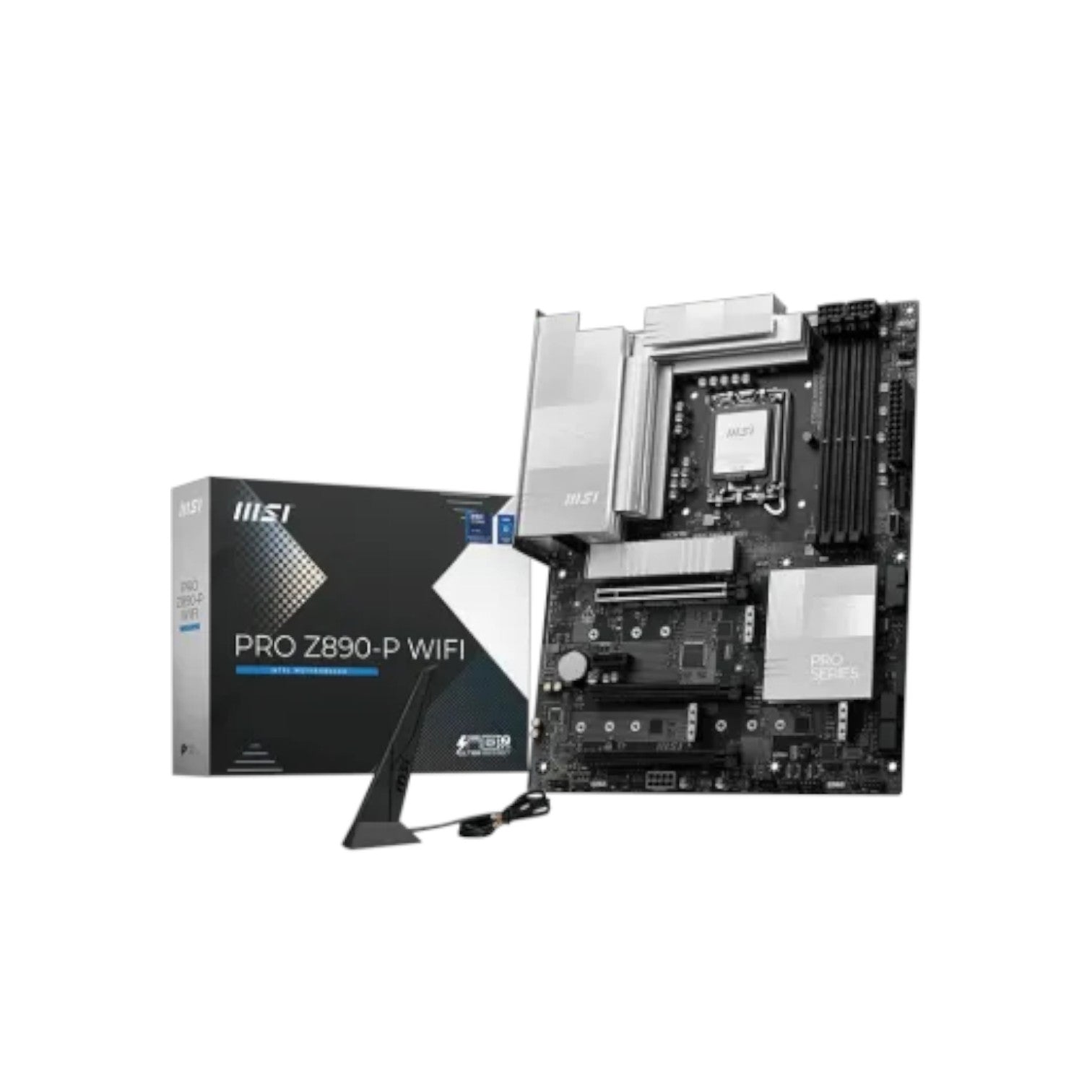

MSI PRO Z890-P WIFI LGA 1851 ATX Motherboard

Brand: MSI (Intel)
SKU: PRO Z890-P WIFI
Availability: In stock

Key Features

Features: 4x M.2, Intel Wi-Fi 7, Bluetooth 5.4
Supported RAM: 4x DDR5, Max 256GB 9200 - 6400 (OC) MT/s
Supported CPU: Intel Core Ultra Processors (Series 2), LGA 1851
Graphics Output: 1x HDMI, 1x DisplayPort, 1x Type-C DisplayPort

Tk 37,800
Tk 38,000
Tk 37,800
Subtotal: Tk 37,800

Specification

Basic Information

Supported CPU Supports Intel Core Ultra Processors (Series 2)
Chipset INTEL Z890
Form Factor ATX (243.84mmx304.8mm)
Audio Realtek® ALC897 Codec
7.1-Channel High Definition Audio

Expansion Slots

PCI 3x PCI-E x16 slot
1x PCI-E x1 slot
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
PCI_E4 Gen PCIe 4.0 supports up to x4 (From Chipset)
M.2 Socket 4x M.2

Memory

Type DDR5
Slots 4
Supported Memory Support 9200 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s
Max. overclocking frequency:
• 1DPC 1R Max speed up to 9200+ MT/s
• 1DPC 2R Max speed up to 7200+ MT/s
• 2DPC 1R Max speed up to 4800+ MT/s
• 2DPC 2R Max speed up to 4800+ MT/s

Maximum Memory 256GB



Graphics

Graphics 1x HDMI™
Support HDMI™ 2.1, maximum resolution of 4K 60Hz*
1x DisplayPort
Support DisplayPort 1.4, maximum resolution of 4K 60Hz*
1x Type-C DisplayPort
Thunderbolt™ 4 port, supporting DisplayPort 1.4 over USB Type-C®, with a maximum resolution of 4K 120Hz / 8K 60Hz*



Connector & Ports

HDMI 1x HDMI 2.1
Display Port (s) 1x DisplayPort
1x Type-C DisplayPort
Thunderbolt™ 4 port, supporting DisplayPort 1.4 over USB Type-C, with a maximum resolution of 4K 120Hz / 8K 60Hz*
USB (s) 4x USB 2.0 (Rear)
4x USB 2.0 (Front)
2x USB 5Gbps Type A (Rear)
4x USB 5Gbps Type A (Front)
1x USB 10Gbps Type A (Rear)
1x USB 10Gbps Type C (Rear)
1x USB 20Gbps Type C (Front)
LAN Port (s) Realtek 8126 5Gbps LAN
Wireless Communication module Intel® Wi-Fi 7
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax/ be

Supports Bluetooth® 5.4**, MLO, 4KQAM
Supported Storage 4x M.2
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
4x SATA 6G
RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices
Audio 1x Front Audio (JAUD)
Internal I/O Ports 1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x Power Connector(PCIE_PWR 8pin)
1x CPU Fan
1x Combo Fan (Pump_Sys Fan)
5x System Fan
1x EZ Conn-header (JAF_1)
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Tuning Controller connector(JDASH)
3x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
4x USB 5Gbps Type A ports
1x USB 20Gbps Type C ports
TPM (Trusted Platform Module) 1x TPM pin header(Support TPM 2.0)

Warranty

Warranty 3 years

Description

MSI PRO Z890-P WIFI LGA 1851 ATX Motherboard

The MSI PRO Z890-P WIFI LGA 1851 ATX Motherboard is a premium high-performance solution built for professionals, creators, and enthusiasts who demand exceptional stability, connectivity, and power efficiency. Designed to support Intel Core Ultra (Series 2) processors on the latest LGA 1851 socket, it offers unmatched compatibility and next-gen performance. With its sleek silver aesthetic, it fits perfectly into both white and black PC builds, providing a modern and versatile look. Featuring a robust 16+1+1 Duet Rail Power System with 90A Smart Power Stages, dual 8-pin CPU power connectors, and an extended heatsink design, this motherboard ensures stable and efficient power delivery even during the most demanding workloads. MSI’s exclusive Core Boost and Memory Boost technologies further enhance performance by optimizing power management and data transfer, guaranteeing smooth operation for both productivity and gaming tasks.

The MSI PRO Z890-P WIFI offers industry-leading connectivity, making it a future-ready foundation for any high-end system. Equipped with Wi-Fi 7, 5G LAN, and Thunderbolt 4, it provides ultra-fast networking and seamless device integration. It supports up to 256GB of DDR5 memory across four DIMM slots with speeds reaching up to 9200+ MHz (OC), enabling superior multitasking and responsiveness. The PCIe 5.0 and M.2 Gen5 slots allow for the latest GPUs and NVMe storage solutions, while multiple USB 3.2 Gen 1 and Gen 2 ports ensure flexible and high-speed peripheral connectivity.

Designed for convenience, the motherboard includes MSI’s EZ DIY features such as pre-installed I/O shielding, EZ PCIe Release, and EZ M.2 Shield Frozr II, simplifying installation and upgrades. The advanced thermal architecture, featuring multiple heatsinks and optimized fan headers, keeps components cool for sustained high performance. Built for longevity and reliability, the MSI PRO Z890-P WIFI combines powerful hardware design, advanced cooling, and premium components to deliver consistent, top-tier results for demanding professional or creative applications.

Buy the MSI PRO Z890-P WIFI LGA 1851 ATX Motherboard from Tech Buy BD. In Bangladesh, you can get the latest MSI motherboards for your desktop PC. Order online or visit Tech Buy BD to get yours at the best price. The MSI PRO Z890-P WIFI LGA 1851 ATX Motherboard comes with a 3-year warranty.
