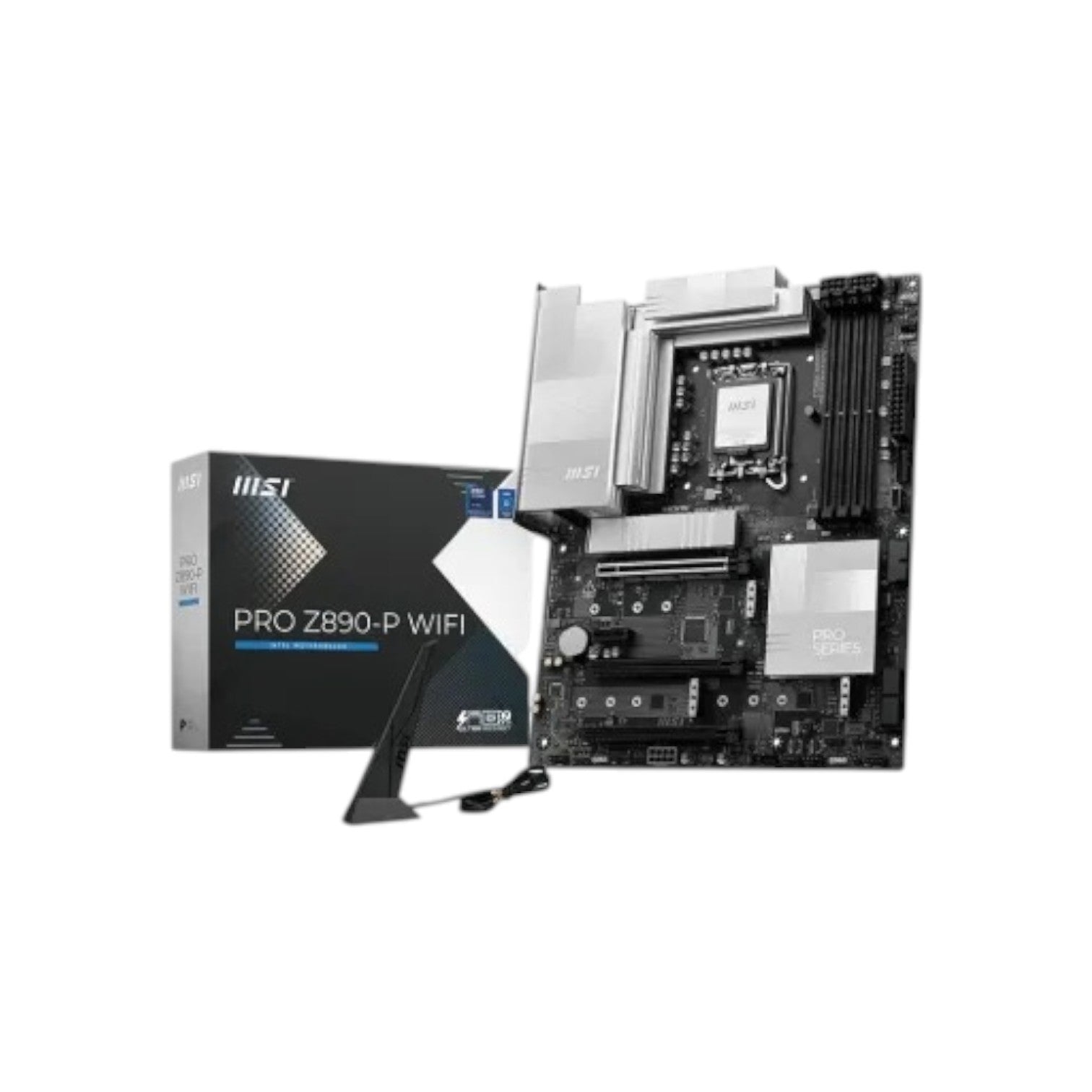

MSI PRO Z890-P LGA 1851 ATX Motherboard

MSI PRO Z890-P LGA 1851 ATX Motherboard

Brand: MSI (Intel)
SKU: PRO Z890-P
Availability: In stock

Key Features

Features: 4x M.2 Slot, 1x Realtek 8126 5Gbps LAN
Supported CPU: Intel Core Ultra Processors (Series 2), LGA 1851
Graphics Output: 1x HDMI, 1x DisplayPort, 1x Type-C DisplayPort
Supported RAM: 4x DDR5, Dual Channel 9200+ MT/s (OC), Max 256GB

Ask an expert
Tk 35,300
Tk 36,500
Tk 35,300
Subtotal: Tk 35,300
Description

Specification

Basic Information

Supported CPU Supports Intel Core Ultra Processors (Series 2)
Chipset INTEL Z890
Form Factor ATX (243.84mmx304.8mm)
Audio Realtek ALC897 Codec
7.1-Channel High Definition Audio

Expansion Slots

PCI 3x PCI-E x16 slot
1x PCI-E x1 slot
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
PCI_E4 Gen PCIe 4.0 supports up to x4 (From Chipset)
M.2 Socket 4x M.2
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices

Memory

Type DDR5
Slots 4x UDIMM
Supported Memory Memory Support 9200 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s
Max. overclocking frequency:
• 1DPC 1R Max speed up to 9200+ MT/s
• 1DPC 2R Max speed up to 7200+ MT/s
• 2DPC 1R Max speed up to 6400+ MT/s
• 2DPC 2R Max speed up to 5600+ MT/s
Supports Intel POR Speed and JEDEC Speed
Supports Memory Overclocking and Intel XMP 3.0
Supports Dual-Controller Dual-Channel mode
Supports Non-ECC, Un-buffered memory
Supports CUDIMM
Maximum Memory 256GB



Graphics

Graphics 1x HDMI
Support HDMI 2.1, maximum resolution of 4K 60Hz*
1x DisplayPort
Support DisplayPort 1.4, maximum resolution of 4K 60Hz
1x Type-C DisplayPort
Thunderbolt™ 4 port, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz



Connector & Ports

HDMI 1x HDMI 2.1
Display Port (s) 1x DisplayPort
1x Type-C DisplayPort
Thunderbolt 4 port, supporting DisplayPort 1.4 over USB Type-C, with a maximum resolution of 4K 120Hz / 8K 60Hz*
USB (s) 4x USB 2.0 (Rear)
4x USB 2.0 (Front)
2x USB 5Gbps Type A (Rear)
4x USB 5Gbps Type A (Front)
1x USB 10Gbps Type A (Rear)
1x USB 10Gbps Type C (Rear)
1x USB 20Gbps Type C (Front)
LAN Port (s) Realtek 8126 5Gbps LAN
Supported Storage 4x M.2
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
4x SATA 6G
RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices
Audio 1x Front Audio (JAUD)
Internal I/O Ports 1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x Power Connector(PCIE_PWR 8pin)
1x CPU Fan
1x Combo Fan (Pump_Sys Fan)
5x System Fan
1x EZ Conn-header (JAF_1)
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Tuning Controller connector(JDASH)
3x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
4x USB 5Gbps Type A ports
1x USB 20Gbps Type C ports



Others

Special Features 4x EZ Debug LED

Warranty

Warranty 3 years

Description

MSI PRO Z890-P LGA 1851 ATX Motherboard

The MSI PRO Z890-P LGA 1851 ATX Motherboard is a high-end and future-ready platform built to deliver exceptional performance, stability, and connectivity for professionals, gamers, and creators alike. Designed to support Intel Core Ultra (Series 2) processors on the advanced LGA 1851 socket, it ensures maximum efficiency and power for next-generation computing. Supporting DDR5 memory up to 9200+ MHz (OC) and a total capacity of 256GB, this motherboard guarantees superior multitasking, faster data transfer, and smooth performance under heavy workloads.

Powered by a robust 14+1+1+1 Duet Rail Power System with 55A DrMOS and dual 8-pin CPU power connectors, the MSI PRO Z890-P ensures stable and precise power delivery even under intense system demand. Its 6-layer PCB, made from 2oz thickened copper, enhances heat dissipation, durability, and power efficiency. The advanced thermal design, featuring an extended heatsink, MOSFET thermal pads rated for 7W/mK, and the EZ M.2 Shield Frozr II, helps maintain ideal temperatures for sustained high performance.

For connectivity, this MSI motherboard offers PCIe 5.0 slots and Lightning Gen 5 x4 M.2 for ultra-fast data speeds, along with a Thunderbolt 4 port delivering up to 40Gbps transfer rates and support for 8K displays. With four M.2 slots and four SATA 6Gb/s ports supporting both SATA and NVMe RAID, it provides flexible storage options for every professional or gamer. Networking is equally powerful, featuring a 5Gbps LAN port, Intel Wi-Fi 7, and Bluetooth 5.4 for stable, high-speed wired and wireless communication.

The MSI PRO Z890-P LGA 1851 ATX Motherboard also delivers top-tier audio with Audio Boost technology, offering crystal-clear, studio-quality sound. HDMI 2.1, DisplayPort 1.4, and Type-C DisplayPort outputs support up to 8K resolution for breathtaking visuals. A wide range of USB options, including 10Gbps Type-A and 20Gbps Type-C ports, ensures rapid and versatile connectivity. With support for RGB and addressable LED headers, TPM 2.0, and extensive fan control, it combines performance, aesthetics, and convenience in one powerful package.

Buy the MSI PRO Z890-P LGA 1851 ATX Motherboard from Tech Buy BD. In Bangladesh, you can get the latest MSI motherboards for your desktop PC. Order online or visit Tech Buy BD to get yours at the best price. The MSI PRO Z890-P LGA 1851 ATX Motherboard comes with a 3-year warranty.
