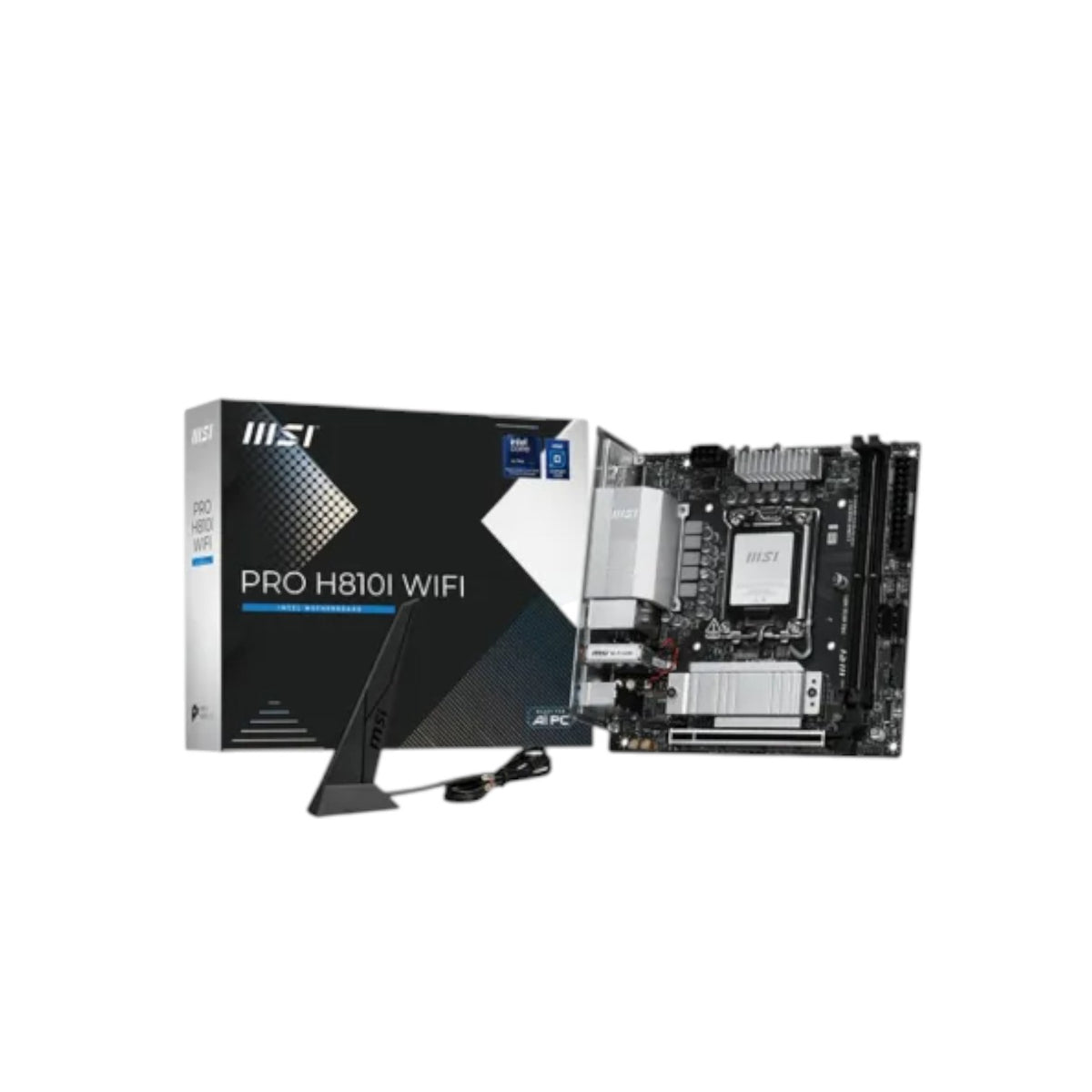

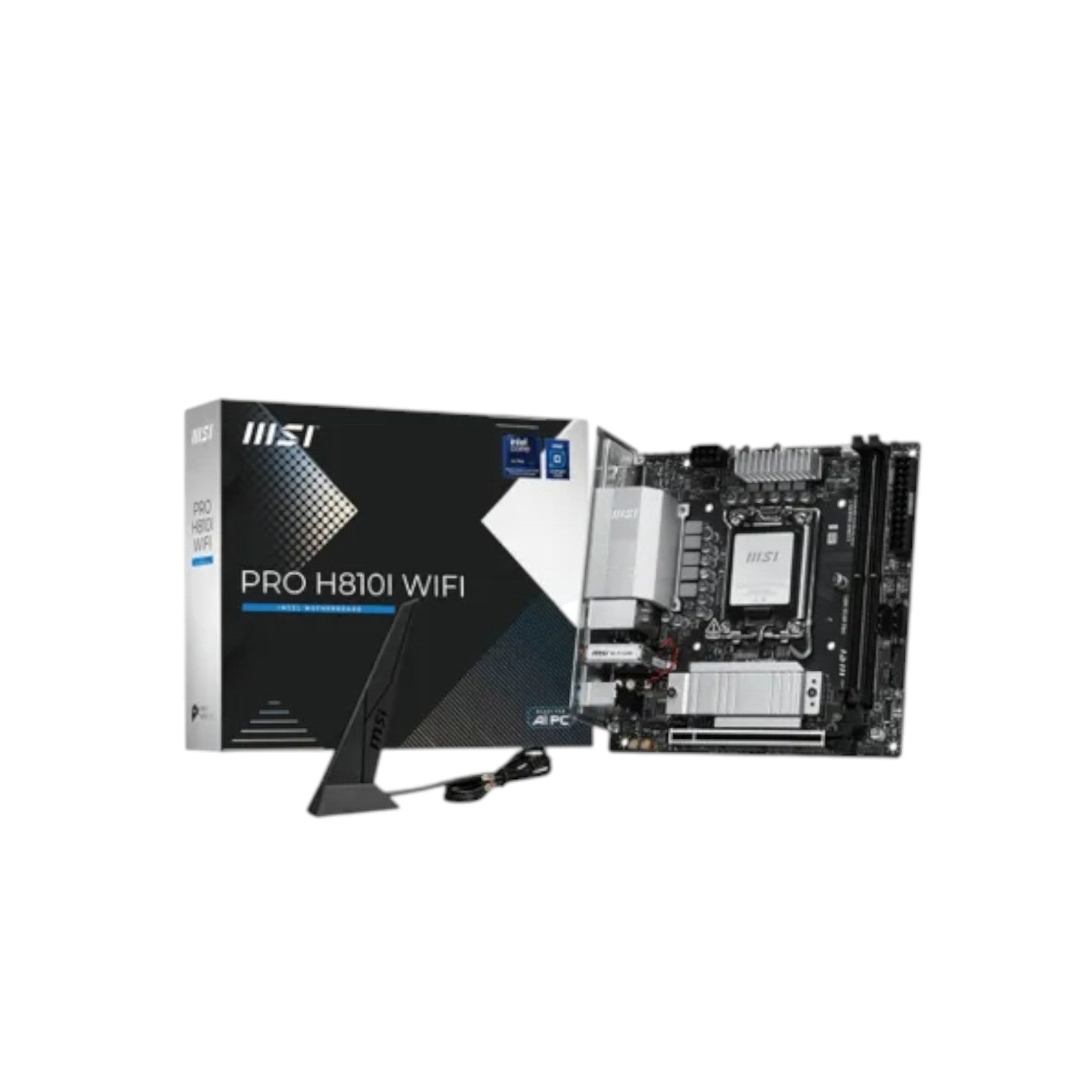

MSI PRO H810I WIFI LGA 1851 Mini-ITX Motherboard (MMSII5031)

Tk 18,900; ~~Tk 20,000~~; Tk 18,900
Unit price: per

Brand: MSI (Intel)

SKU: PRO H810I WIFI

Availability: In stock

Key Features

Graphics Output: 1x HDMI 2.1, 1x DisplayPort 1.4
Supported RAM: 2x DDR5 UDIMM, Up to 6400 MT/s, Max 128GB
Supported CPU: Intel Core Ultra Processors (Series 2), LGA 1851
Features: 1x M.2, Intel I226 2.5Gbps LAN, Wi-Fi 7, Bluetooth 5.4

Ask an expert

Subtotal: Tk 18,900

Quantity:

MSI PRO H810I WIFI LGA 1851 Mini-ITX Motherboard (MMSII5031)

~~Tk 20,000~~ Tk 18,900

Quantity:

MSI PRO H810I WIFI LGA 1851 Mini-ITX Motherboard (MMSII5031)

~~Tk 20,000~~ Tk 18,900

Description

Description

Specification

Basic Information

Supported CPU	Supports Intel Core Ultra Processors (Series 2) LGA 1851
Chipset	INTEL H810
Form Factor	Mini-ITX 170mmx170mm
Audio	Realtek ALC897 Codec 7.1-Channel High Definition Audio

Expansion Slots

Dimension	1x PCI-E x16 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
M.2 Socket	1x M.2 M.2_1 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280 devices

Memory

Type	DDR5
Slots	2
Supported Memory	Support 9200 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s Max. overclocking frequency: • 1DPC 1R Max speed up to 9200+ MT/s • 1DPC 2R Max speed up to 7200+ MT/s • 2DPC 1R Max speed up to 4800+ MT/s • 2DPC 2R Max speed up to 4800+ MT/s
Maximum Memory	128GB

Graphics

1x HDMI
Support HDMI 2.1, maximum resolution of 4K 60Hz
1x DisplayPort
Support DisplayPort 1.4, maximum resolution of 4K 60Hz

Connector & Ports

HDMI	1x HDMI 2.1
Display Port (s)	1x DisplayPort 1.4
USB (s)	2x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) 1x USB 10Gbps Type C (Front) 1x USB 20Gbps Type C (Rear)
LAN Port (s)	Intel I226 2.5Gbps LAN
Wireless Communication module	Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz (160MHz) up to 2.9Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth 5.4, MLO, 4KQAM
Supported Storage	1x M.2 M.2_1 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280 devices 2x SATA 6G
Audio	1x Front Audio (JAUD)
Internal I/O Ports	1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 1x System Fan 1x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Addressable V2 RGB LED connector (JARGB_V2) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports
TPM (Trusted Platform Module)	1x TPM pin header(Support TPM 2.0)

Others

Special Features

4x EZ Debug LED
1x EZ Memory Detection LED

Warranty

3 Years Warranty

Description

MSI PRO H810I WIFI LGA 1851 Mini-ITX Motherboard

The MSI PRO H810I WIFI LGA 1851 Mini-ITX Motherboard is a compact yet powerful solution designed for modern PC setups that demand next-generation performance and connectivity. Powered by the Intel H810 chipset, it supports Intel Core Ultra Processors (Series 2) on the LGA 1851 socket, ensuring long-term reliability for productivity, gaming, and multimedia applications.

This motherboard supports dual-channel DDR5 memory up to 128GB with speeds reaching 6400 MT/s, offering exceptional multitasking performance. With Intel XMP 3.0 support, users can easily overclock for faster data throughput. MSI’s Core Boost and Memory Boost technologies ensure stable power delivery and clean signal integrity, maintaining system efficiency under demanding workloads.

For cooling, MSI’s Frozr Guard design includes an extended heatsink, M.2 Shield Frozr, and MOSFET thermal pads rated at 7W/mK, ensuring optimal heat dissipation during intensive operations. The PCIe 5.0 x16 slot supports the latest GPUs, while a PCIe 4.0 x4 M.2 slot and two SATA 6Gb/s ports provide ample storage options.

Networking is future-ready, featuring Intel I226 2.5Gbps LAN and Wi-Fi 7 with Bluetooth 5.4, offering stable and ultra-fast connectivity up to 2.9Gbps. Display options include HDMI 2.1 and DisplayPort 1.4 outputs capable of 4K resolution at 60Hz, while the Realtek ALC897 audio codec delivers 7.1-channel HD sound for immersive audio experiences.

Connectivity options include a wide range of USB ports such as a 20Gbps Type-C on the rear, a 10Gbps Type-C on the front, multiple USB 5Gbps ports, and USB 2.0 ports for peripherals. Convenient features like EZ PCIe Clip II, EZ Debug LEDs, and EZ Memory Detection simplify installation and troubleshooting. RGB headers allow for visual customization to match any setup.

Compact, powerful, and packed with features, the MSI PRO H810I WIFI Mini-ITX Motherboard is an ideal choice for enthusiasts and professionals building high-performance small form factor systems.

Buy the MSI PRO H810I WIFI Mini-ITX Motherboard from Tech Buy BD. In Bangladesh, you can get the latest MSI motherboards for your desktop PC. Order online or visit Tech Buy BD to get yours at the best price. The MSI PRO H810I WIFI Mini-ITX Motherboard comes with a 3-year warranty.
