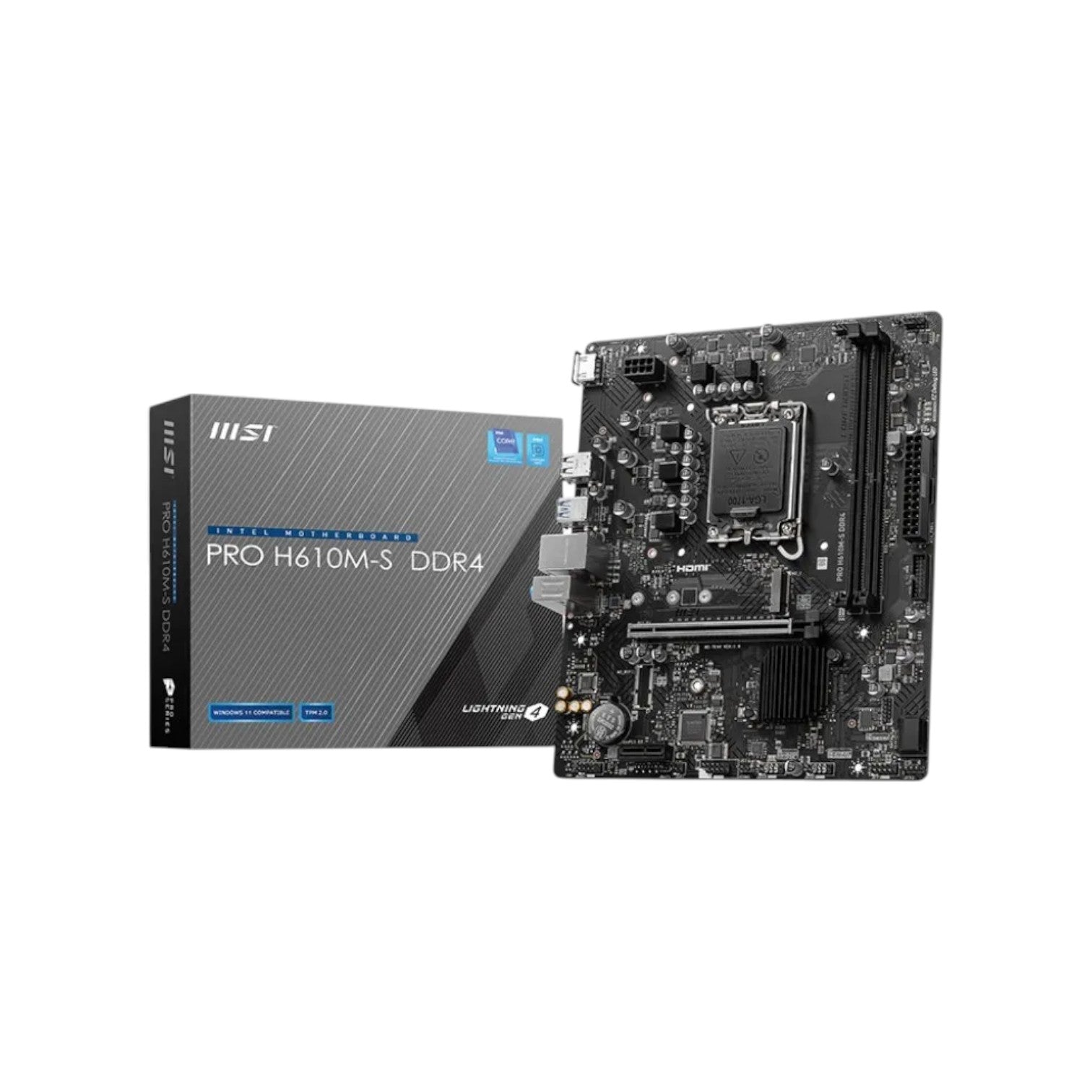

MSI PRO H610M-S DDR4 m-ATX Motherboard

Brand: MSI (Intel)
SKU: PRO H610M-S
Availability: In stock

Key Features

Graphics Output: 1x HDMI
Supported RAM: 2x DDR4, Max 96GB
Features: 1x M.2 slot, Realtek RTL8111H Gigabit LAN
Supported CPU: 14th/13th/12th Gen Intel Processors (LGA1700)

Tk 9,900
Tk 10,500
Tk 9,900
Subtotal: Tk 9,900

Specification

Basic Information

Supported CPU Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors
LGA 1700
Chipset Intel H610 Chipset
Form Factor mATX
200mmx236.16mm
Audio Realtek ALC897 Codec
7.1-Channel High Definition Audio
Special Features 4x EZ Debug LED

Expansion Slots

PCI 1x PCI-E x16 slot
1x PCI-E x1 slot
PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
M.2 Socket 1 x m.2

Memory

Type DDR4
Slots 1
Supported Memory 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Maximum Memory 64GB

Graphics

Graphics 1x HDMI
Support HDMI 1.4 with HDR, maximum resolution of 4K 30Hz

Connector & Ports

HDMI 1x HDMI 1.4 with HDR port
USB (s) 4x USB 2.0 (Rear)
4x USB 2.0 (Front)
2x USB 5Gbps Type A (Rear)
2x USB 5Gbps Type A (Front)
LAN Port (s) Realtek RTL8111H Gigabit LAN
Supported Storage 1x M.2
M.2_1 Source (From Chipset) supports up to PCIe 3.0 x4 , supports 2280/2260/2242 devices
2x SATA 6G
Audio Audio Connectors
Internal I/O Ports 1x Power Connector(ATX_PWR)
1x Power Connector(CPU_PWR)
1x CPU Fan
1x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Com Port (JCOM)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
TPM (Trusted Platform Module) 1x TPM pin header(Support TPM 2.0)

Warranty

Warranty 3 years

Description

MSI PRO H610M-S DDR4 m-ATX Motherboard

The MSI PRO H610M-S DDR4 m-ATX Motherboard is a dependable and versatile choice designed to meet the needs of users seeking stable performance for entry-level to mid-range PC builds. Supporting 14th, 13th, and 12th Gen Intel Core, Pentium Gold, and Celeron processors with the LGA 1700 socket, this motherboard ensures excellent compatibility and reliable performance for gaming, office, or multimedia setups.

Equipped with two DDR4 memory slots, it supports up to 64GB of RAM running at speeds up to 3200MHz, providing smooth multitasking and responsiveness for demanding applications. For display, the MSI PRO H610M-S includes an HDMI 1.4 port for high-definition output, offering crisp visuals and versatile connectivity for monitors or projectors.

Networking is powered by the Realtek RTL8111H Gigabit LAN, ensuring stable and fast wired internet connectivity for gaming, streaming, or productivity tasks. Expansion options include PCIe slots and multiple USB ports, providing flexibility for adding new components and peripherals.

Built with premium-quality components, this motherboard ensures long-term reliability and consistent performance. Its compact Micro-ATX form factor makes it ideal for space-saving builds without compromising on features. Whether you’re assembling a budget gaming system or a reliable workstation, the MSI PRO H610M-S DDR4 m-ATX Motherboard delivers solid functionality, stability, and value.

Buy the MSI PRO H610M-S DDR4 m-ATX Motherboard from Tech Buy BD. In Bangladesh, you can get the latest MSI motherboards for your desktop PC. Order online or visit Tech Buy BD to get yours at the best price. The MSI PRO H610M-S DDR4 m-ATX Motherboard comes with a 3-year warranty.
