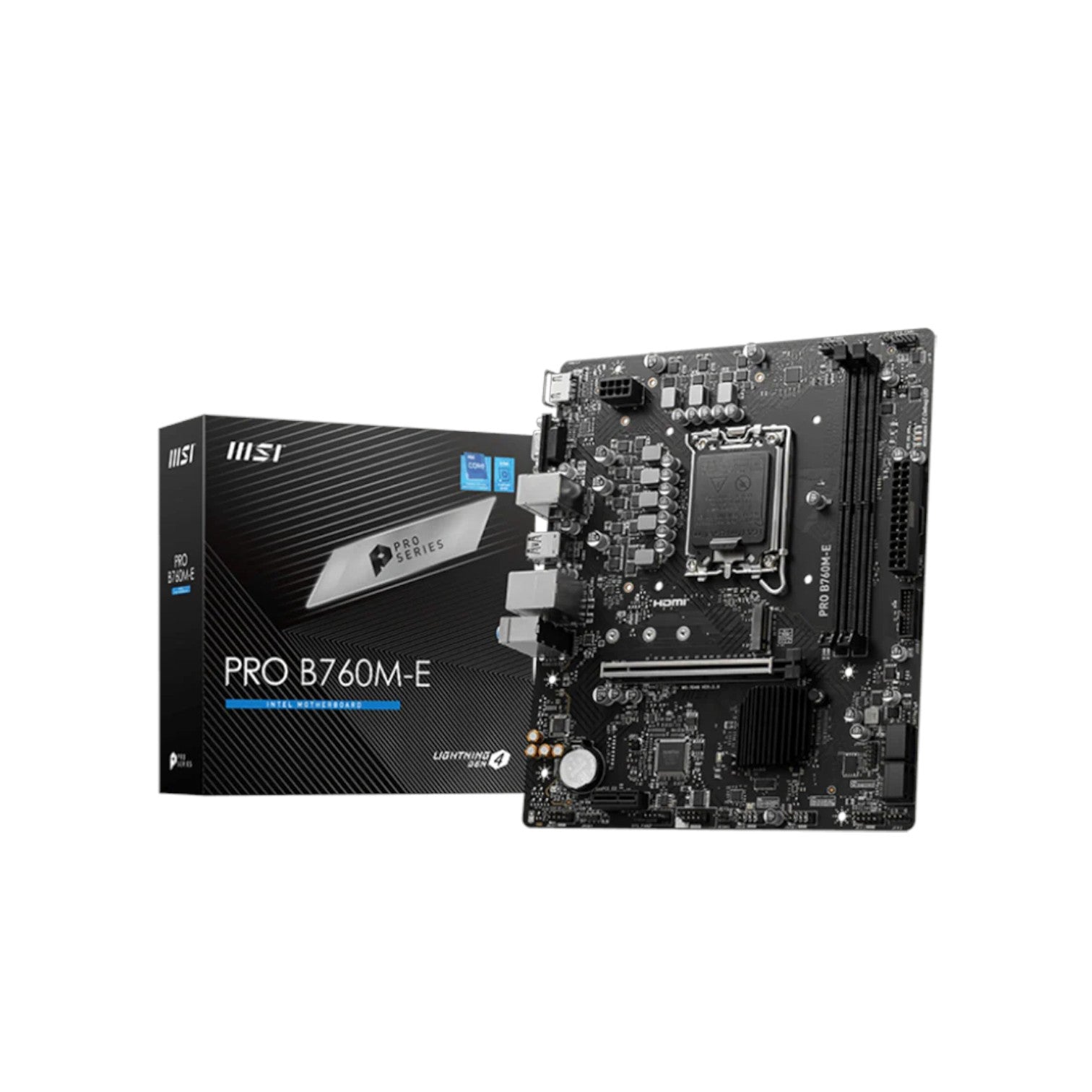

MSI PRO B760M-E DDR5 m-ATX Motherboard

Brand: MSI (Intel)
SKU: B760M-E
Availability: In stock

Key Features

Graphics Output: 1x HDMI, 1x VGA
Features: Realtek RTL8111H Gigabit LAN
Supported RAM: 2x DDR5, Maximum Memory Capacity 96GB
Supported CPU: 14th/13th/12th Gen Intel Processors (LGA1700)

Tk 13,400
Tk 13,900
Tk 13,400
Subtotal: Tk 13,400

Specification

Basic Information

Supported CPU Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors
LGA 1700
Chipset Intel H610 Chipset
Form Factor mATX
200mmx236.16mm
Audio Realtek ALC897 Codec
7.1-Channel High Definition Audio
Special Features 1x RGB LED connector(JRGB)

Expansion Slots

PCI 1x PCI-E x16 slot
1x PCI-E x1 slot
PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
M.2 Socket 1x M.2

Memory

Type DDR5
Slots 2x DIMM
Supported Memory Memory Support DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC)
Max. overclocking frequency:
• 1DPC 1R Max speed up to 6400+ MHz
• 1DPC 2R Max speed up to 5600+ MHz
Maximum Memory 96GB

Graphics

Graphics 1x HDMI
Support HDMI 1.4 with HDR, maximum resolution of 4K 30Hz*
1x VGA

Connector & Ports

HDMI 1x HDMI 1.4
USB (s) 4x USB 2.0 (Rear)
4x USB 2.0 (Front)
2x USB 3.2 Gen1 Type A (Rear)
2x USB 3.2 Gen1 Type A (Front)
LAN Port (s) Realtek RTL8111H Gigabit LAN
Supported Storage 1x M.2
M.2_1 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
4x SATA 6G
Audio Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Internal I/O Ports 1x Power Connector(ATX_PWR)
1x Power Connector(CPU_PWR)
1x CPU Fan
2x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Com Port (JCOM)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
2x USB 3.2 Gen1 Type A ports
TPM (Trusted Platform Module) 1x TPM pin header(Support TPM 2.0)

Warranty

Warranty 3 years

Description

MSI PRO B760M-E DDR5 m-ATX Motherboard

The MSI PRO B760M-E DDR5 m-ATX Motherboard is built to deliver next-level performance and reliability for modern computing. Designed to support Intel 14th, 13th, and 12th Generation Core processors, along with Pentium Gold and Celeron CPUs on the LGA 1700 socket, it provides a stable and efficient foundation for gaming, productivity, and content creation.

This motherboard features two DDR5 slots, supporting up to 96GB of memory with lightning-fast speeds for improved data transfer and responsiveness. The support for DDR5 ensures smoother multitasking and faster load times, making it ideal for users who demand high performance.

Connectivity is a key strength of the MSI PRO B760M-E, with an HDMI port providing crisp, high-quality display output for creative work and immersive gaming. It also includes Realtek RTL8111H Gigabit LAN for reliable, high-speed internet connectivity, ensuring stable performance for online gaming, streaming, and data-intensive tasks.

For audio, the motherboard comes equipped with 7.1-Channel High Definition Audio, offering crystal-clear and immersive sound. Whether you’re gaming, watching movies, or in a conference call, the sound experience is rich and precise.

Combining superior memory performance, robust connectivity, and immersive sound, the MSI PRO B760M-E DDR5 m-ATX Motherboard offers a strong balance of dependability and high-performance capabilities, making it perfect for enthusiasts and professionals alike.

Buy the MSI PRO B760M-E DDR5 m-ATX Motherboard from Tech Buy BD. In Bangladesh, you can get the latest MSI motherboards for your desktop PC. Order online or visit Tech Buy BD to get yours at the best price. The MSI PRO B760M-E DDR5 m-ATX Motherboard comes with a 3-year warranty.
