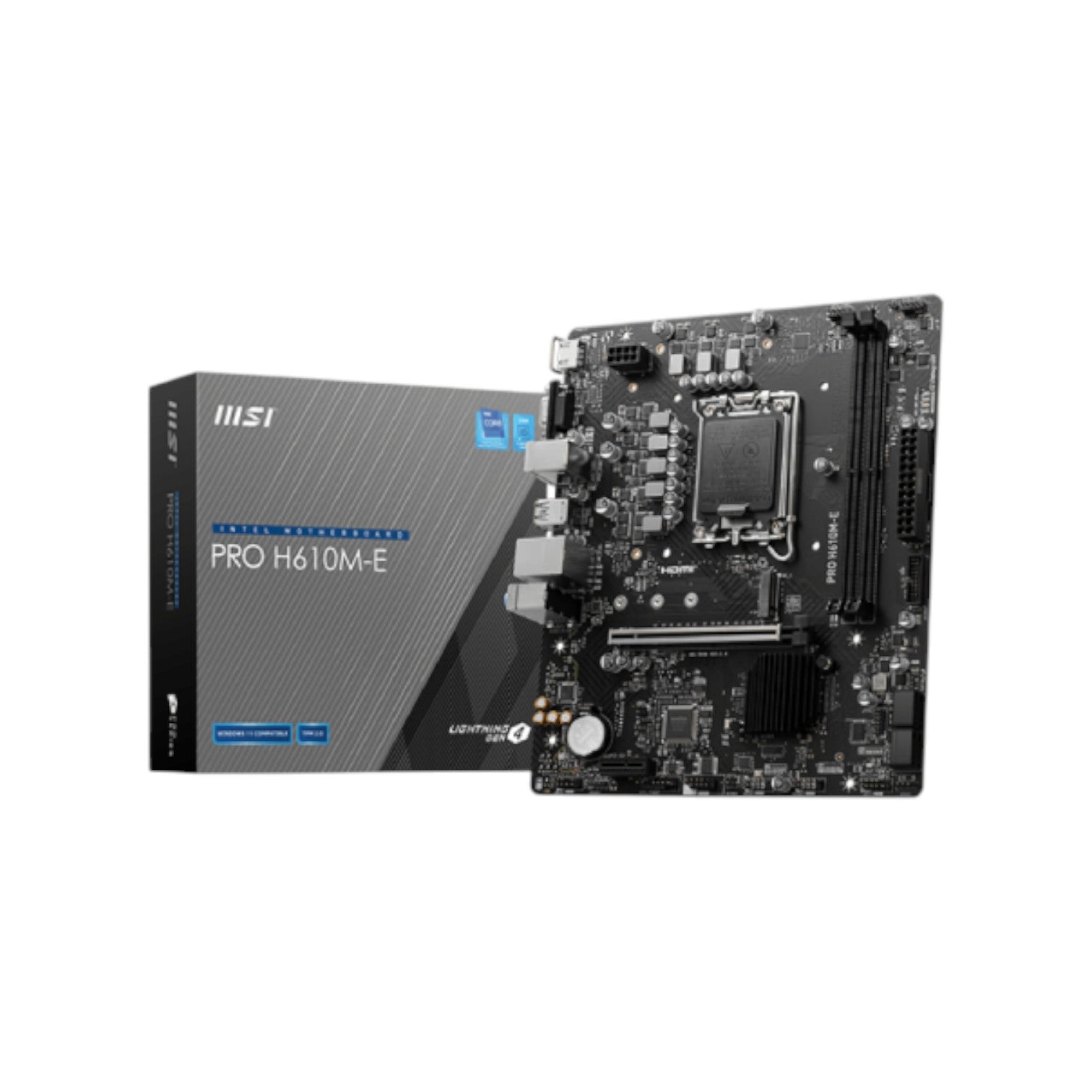

MSI PRO H610M-E DDR4 mATX Motherboard

Brand: MSI (Intel)
SKU: PRO H610M-E DDR4
Availability: In stock

Key Features

Graphics Output: 1x HDMI, 1x VGA
Supported RAM: 2x DDR4, Max 64GB
Features: 1x M.2 slot, Realtek RTL8111H Gigabit LAN
Supported CPU: 14th/13th/12th Gen Intel Processors (LGA1700)

Tk 9,900
Tk 10,500
Tk 9,900
Subtotal: Tk 9,900

Specification

Basic Information

Supported CPU Supports 14th/13th/12th Gen Intel Core Processors, Pentium Gold and Celeron Processors
LGA 1700
Chipset Intel H610 Chipset
Form Factor mATX
9.3 in. x 7.9 in. (23.6 cm x 20 cm)
Audio Realtek ALC897 Codec
7.1-Channel High-Definition Audio
Special Features 1x 4-pin RGB LED connector
4x EZ Debug LED

Expansion Slots

PCI 1x PCIe x16 slot (From CPU)
Supports up to PCIe 4.0 x16
1x PCIe x1 slot (From H610 chipset)
Supports PCIe 3.0 x1

Memory

Type DDR4
Slots 2
Supported Memory Supports 1R 2133/ 2666/ 3200 MHz (by JEDEC & POR)
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Maximum Memory 64GB

Graphics

Graphics supporting a maximum resolution of 4K 30Hz
supporting a maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz
Available only on processors featuring integrated graphics.
Graphics specifications may vary depending on the CPU installed.

Connector & Ports

HDMI 1x HDMI 1.4 with HDR port
DVI-D (s) 1x VGA
USB (s) 1x USB 3.2 Gen 1 5Gbps connector (From H610 chipset)
Supports additional 2 USB 3.2 Gen 1 5Gbps ports
2x USB 2.0 Type-A connectors (From Hub-GL850G)
Supports additional 4 USB 2.0 ports
LAN Port (s) 1x Realtek RTL8111H 1Gbps LAN controller
Supported Storage 1x M.2 slot (Key M) (from CPU)
Supports up to PCIe 3.0 x4
Supports 2242/ 2260/ 2280 storage devices
Audio 1x Front panel audio connector
Internal I/O Ports 1x 24-pin ATX main power connector
1x 8-pin +12V power connector
1x 4-pin CPU fan connector
2x 4-pin system fan connectors
1x Front panel audio connector
2x System panel connectors
1x Chassis Intrusion connector
1x Serial port connector
1x Clear CMOS jumper
TPM (Trusted Platform Module) 1x TPM module connector

Warranty

Warranty 3 years

Description

MSI PRO H610M-E DDR4 mATX Motherboard

The MSI PRO H610M-E DDR4 mATX Motherboard is a reliable and high-performance option designed for 12th, 13th, and 14th Gen Intel Core, Pentium Gold, and Celeron processors using the LGA 1700 socket. It supports DDR4 memory with speeds up to 3200MHz (MAX), ensuring smooth multitasking and improved system responsiveness for productivity and gaming.

Built with MSI’s Core Boost technology, this motherboard delivers precise and stable power to the CPU, unlocking better performance even for multi-core processors. The digital power design and premium PCB layout enhance stability and durability, making it ideal for both professionals and enthusiasts. Memory Boost technology ensures clean and stable data signals for improved compatibility and reliability across a wide range of DDR4 modules.

The MSI PRO H610M-E DDR4 mATX Motherboard features PCIe 4.0 support, enabling ultra-fast data transfer for modern graphics cards and NVMe SSDs. Audio Boost technology delivers studio-grade sound clarity, providing an immersive audio experience for gaming, movies, and music. Additionally, Steel Armor reinforcement protects the PCIe slot against bending and electromagnetic interference, enhancing long-term reliability.

Designed for durability and performance, this compact mATX board offers an excellent balance of features and value, making it suitable for home, office, or gaming builds.

Buy the MSI PRO H610M-E DDR4 mATX Motherboard from Tech Buy BD. In Bangladesh, you can get the latest MSI motherboards for your desktop PC. Order online or visit Tech Buy BD to get yours at the best price. The MSI PRO H610M-E DDR4 mATX Motherboard comes with a 3-year warranty.
