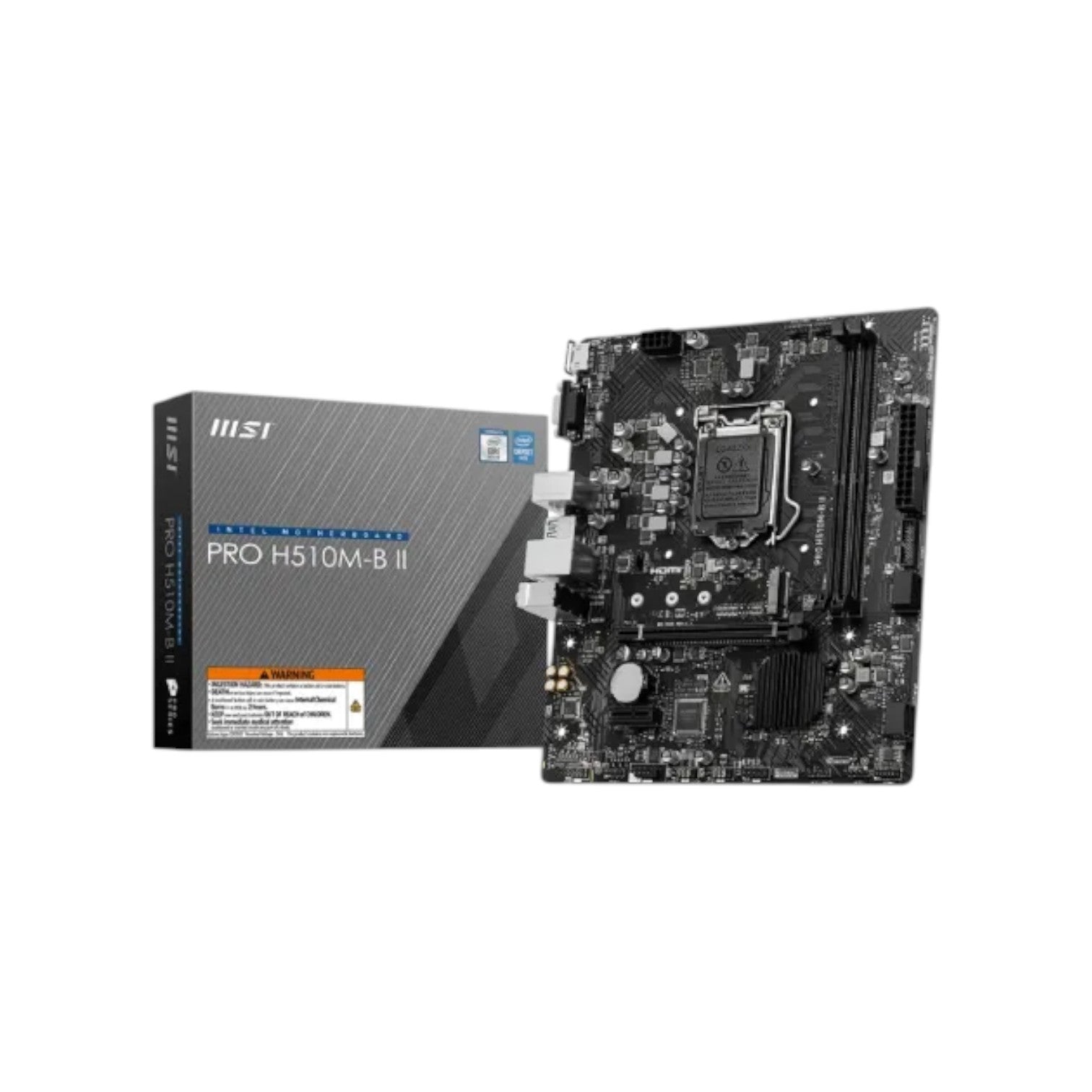

MSI PRO H510M-B II 10th Gen Micro-ATX Motherboard

Brand: MSI (Intel)
SKU: PRO H510M-B II
Availability: In stock

Key Features

Graphics Output: 1x HDMI, 1x VGA
Features: 1x M.2, Realtek 8111H Gigabit LAN
Supported RAM: 2x DDR4, Max 64GB up to 2933MHz
Supported CPU: 10th Gen Intel processors for LGA 1200

Tk 9,500
Tk 10,000
Tk 9,500
Subtotal: Tk 9,500

Specification

Basic Information

Supported CPU Supports 10th Gen Intel Core and Pentium Gold/Celeron processors for LGA 1200 Socket
Chipset INTEL H470
Form Factor mATX
202mmx236mm
Audio Realtek ALC897 Codec
7.1-Channel High Definition Audio

Expansion Slots

PCI 1x PCI-E x16 slot
1x PCI-E x1 slot
PCI_E1 Gen PCIe 3.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
M.2 Socket 1x M.2

Memory

Type DDR4
Slots 2
Supported Memory Memory Support 2933/ 2666/ 2400/ 2133 MHz
Supports 1R 2133/ 2666/ 2933 MHz for Intel® Core™ i9/ Core™ i7 CPU
Supports 1R 2133/ 2666 MHz for Intel® Core™ i5/ Core™ i3/ Pentium® Gold and Celeron® CPU
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel® Extreme Memory Profile (XMP)
Maximum Memory 64GB

Graphics

Graphics 1x HDMI
Support HDMI 1.4, maximum resolution of 4K 30Hz
1x VGA
Support VGA, maximum resolution of 2048x1536 50Hz, 1920x1200 60Hz

Connector & Ports

HDMI 1x HDMI 1.4
DVI-D (s) 1x VGA
USB (s) 4x USB 2.0 (Rear)
4x USB 2.0 (Front)
2x USB 3.2 Gen1 Type A (Rear)
2x USB 3.2 Gen1 Type A (Front)
LAN Port (s) Realtek 8111H Gigabit LAN
Supported Storage 1x M.2
M.2_1 Source (From Chipset) supports up to PCIe 3.0 x4 / SATA mode, supports 2280/2260/2242 devices
4x SATA 6G
Internal I/O Ports 1x Power Connector(ATX_PWR)
1x Power Connector(CPU_PWR)
1x CPU Fan
2x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Com Port (JCOM)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
4x USB 5Gbps Type A ports
TPM (Trusted Platform Module) 1x TPM pin header(Support TPM 2.0)
Others 4x EZ Debug LED

Warranty

Warranty 3 years

Description

MSI H310M PRO-VDH Intel 9th Gen Motherboard

The MSI H310M PRO-VDH Intel 9th Gen Motherboard is a dependable and budget-friendly motherboard designed for stability, performance, and everyday computing needs. Built on the Intel H310 chipset, it supports 9th and 8th Gen Intel Core, Pentium Gold, and Celeron processors using the LGA 1151 socket, making it a versatile choice for entry-level and mainstream desktop systems.

This compact micro-ATX motherboard supports up to 32GB of DDR4 memory running at speeds up to 2666 MHz through two DIMM slots, ensuring smooth multitasking and efficient system performance. It features a PCIe 3.0 x16 slot for dedicated graphics cards and two PCIe 2.0 x1 slots for additional expansion cards, providing flexibility for upgrades. Storage options include four SATA III ports for connecting SSDs and HDDs, delivering fast data transfer rates for optimal storage performance.

For visuals, the motherboard supports HDMI, DVI-D, and VGA outputs, allowing compatibility with a wide range of monitors. Audio quality is enhanced by Realtek 7.1 Channel HD Audio, ensuring clear and immersive sound. Networking is handled by a reliable Gigabit LAN connection, and users can easily add wireless connectivity with a compatible adapter if needed.

The MSI H310M PRO-VDH also includes useful MSI features like Core Boost for improved power delivery, Audio Boost for enhanced sound quality, EZ Debug LED for quick troubleshooting, and PCIe Steel Armor for added slot durability. These features make it a reliable foundation for home PCs, office workstations, and budget-friendly gaming systems.

Buy the MSI H310M PRO-VDH Intel 9th Gen Motherboard from Tech Buy BD. In Bangladesh, you can get the latest MSI motherboards for your desktop PC. Order online or visit Tech Buy BD to get yours at the best price. The MSI H310M PRO-VDH Motherboard comes with a 3-year warranty.
