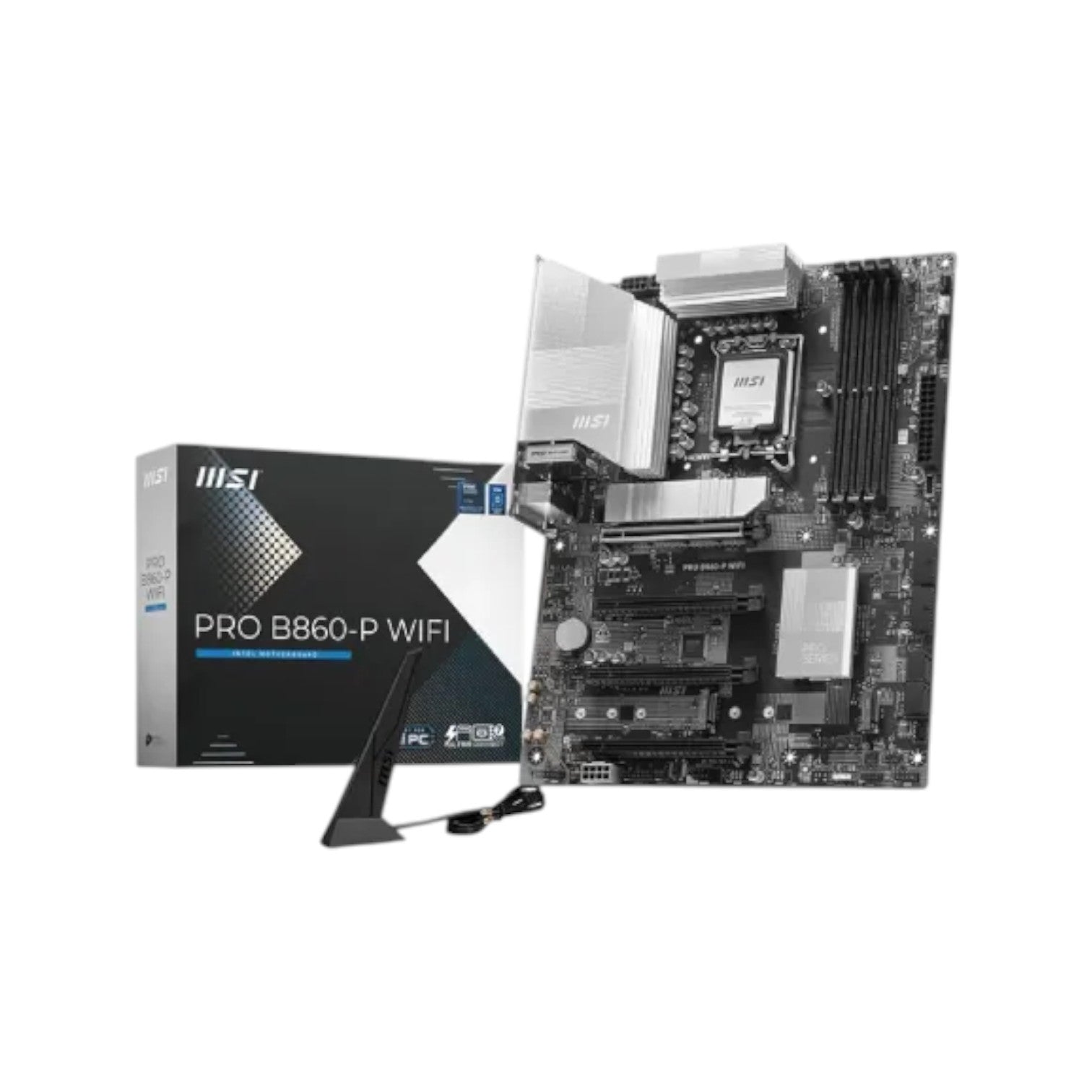

MSI PRO B860-P WIFI LGA 1851 ATX Motherboard

MSI PRO B860-P WIFI LGA 1851 ATX Motherboard

Brand: MSI (Intel)
SKU: B860-P WIFI
Availability: In stock

Key Features

Supported RAM: 4x DDR5, Max 256GB 8800- 6400 (OC) MT/s
Graphics Output: 1x HDMI, 1x DisplayPort, 1x Type-C DisplayPort
Features: 3x M.2, Realtek 8126 5Gbps LAN, Wi-Fi 7, Bluetooth 5.4
Supported CPU: Intel Core Ultra Processors (Series 2), LGA 1851

Ask an expert
Tk 27,600
Tk 28,200
Tk 27,600
Subtotal: Tk 27,600
Description

Specification

Basic Information

Supported CPU Supports Intel Core Ultra Processors (Series 2)
Chipset INTEL B860
Form Factor ATX (243.84mmx304.8mm)
Audio Realtek® ALC897 Codec
7.1-Channel High Definition Audio

Expansion Slots

PCI 4x PCI-E x16 slot
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
PCI_E4 Gen PCIe 4.0 supports up to x1 (From Chipset)
M.2 Socket 3x M.2



Memory

Type DDR5
Slots 4
Supported Memory 4x DDR5 UDIMM,
Memory Support 8800 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s
Max. overclocking frequency:
• 1DPC 1R Max speed up to 8800+ MT/s
• 1DPC 2R Max speed up to 7200+ MT/s
• 2DPC 1R Max speed up to 6400+ MT/s
• 2DPC 2R Max speed up to 5600+ MT/s
Maximum Memory Maximum Memory Capacity 256GB



Graphics

Graphics 1x HDMI
Support HDMI 2.1, maximum resolution of 4K 60Hz*
1x DisplayPort
Support DisplayPort 1.4, maximum resolution of 4K 60Hz*
1x Type-C DisplayPort
Thunderbolt 4 port, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz*



Connector & Ports

HDMI 1x HDMI 2.1
Display Port (s) 1x DisplayPort
1x Type-C DisplayPort
Thunderbolt 4 port, supporting DisplayPort 1.4 over USB Type-C, with a maximum resolution of 4K 120Hz / 8K 60Hz*
USB (s) 4x USB 2.0 (Rear)
4x USB 2.0 (Front)
2x USB 5Gbps Type A (Rear)
4x USB 5Gbps Type A (Front)
2x USB 10Gbps Type A (Rear)
1x USB 10Gbps Type C (Front)
LAN Port (s) Realtek 8126 5Gbps LAN
Wireless Communication module Intel Wi-Fi 7
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax/ be

Supports Bluetooth 5.4**, MLO, 4KQAM
Supported Storage 3x M.2
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280/2260 devices
4x SATA 6G
RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices
Audio 1x Front Audio (JAUD)
Internal I/O Ports 1x Thunderbolt5 card connector(JTBT5, support RTD3)
1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x Power Connector(PCIE_PWR 8pin)
1x CPU Fan
1x Combo Fan (Pump_Sys Fan)
4x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Com Port (JCOM)
1x Tuning Controller connector(JDASH)
2x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
4x USB 2.0 ports
4x USB 5Gbps Type A ports
1x USB 10Gbps Type C ports
TPM (Trusted Platform Module ) 1x TPM pin header(Support TPM 2.0)

Warranty

Warranty 3 Year warranty

Description

MSI PRO B860-P WIFI LGA 1851 ATX Motherboard

The MSI PRO B860-P WIFI LGA 1851 ATX Motherboard is a high-performance motherboard designed for gamers, creators, and professionals who want durable and reliable hardware. This MSI Intel motherboard, powered by the advanced Intel B860 chipset, supports the latest Intel Core Ultra Series 2 CPUs, delivering excellent performance. It offers impressive connectivity options, including Thunderbolt 4, PCIe 5.0, DDR5 memory support, and 5 GbE LAN, allowing fast data transfer and low-latency computing for smooth performance.

The MSI PRO B860-P WIFI features a 12+1+1+1 digital power system that provides stable power to high-end processors while supporting Dual Channel DDR5 memory with overclocking speeds up to 8600+ MT/s. Advanced cooling solutions, such as the M.2 Shield Frozr II and extended heatsinks, help maintain optimal thermal performance during heavy workloads. Integrated MSI AI Engine and Mystic Light features make system setup and management efficient and user-friendly. The EZ DIY features, including EZ M.2 Shield Frozr II, simplify installation and maintenance, making this MSI ATX motherboard suitable for both beginners and expert builders.

Overall, the MSI PRO B860-P WIFI LGA 1851 motherboard delivers outstanding performance, advanced features, and versatile connectivity, making it an excellent choice for anyone looking for a powerful and dependable MSI B860 Intel motherboard.

Buy MSI PRO B860-P WIFI LGA 1851 ATX Motherboard from Tech Buy BD
In Bangladesh, you can get the original MSI PRO B860-P WIFI LGA 1851 ATX Motherboard from Tech Buy BD. We offer a wide collection of the latest MSI motherboards for your desktop PC. Order online or visit your nearest Tech Buy BD shop to get yours at the lowest price. The MSI PRO B860-P WIFI LGA 1851 ATX Motherboard comes with a 3-year warranty.
