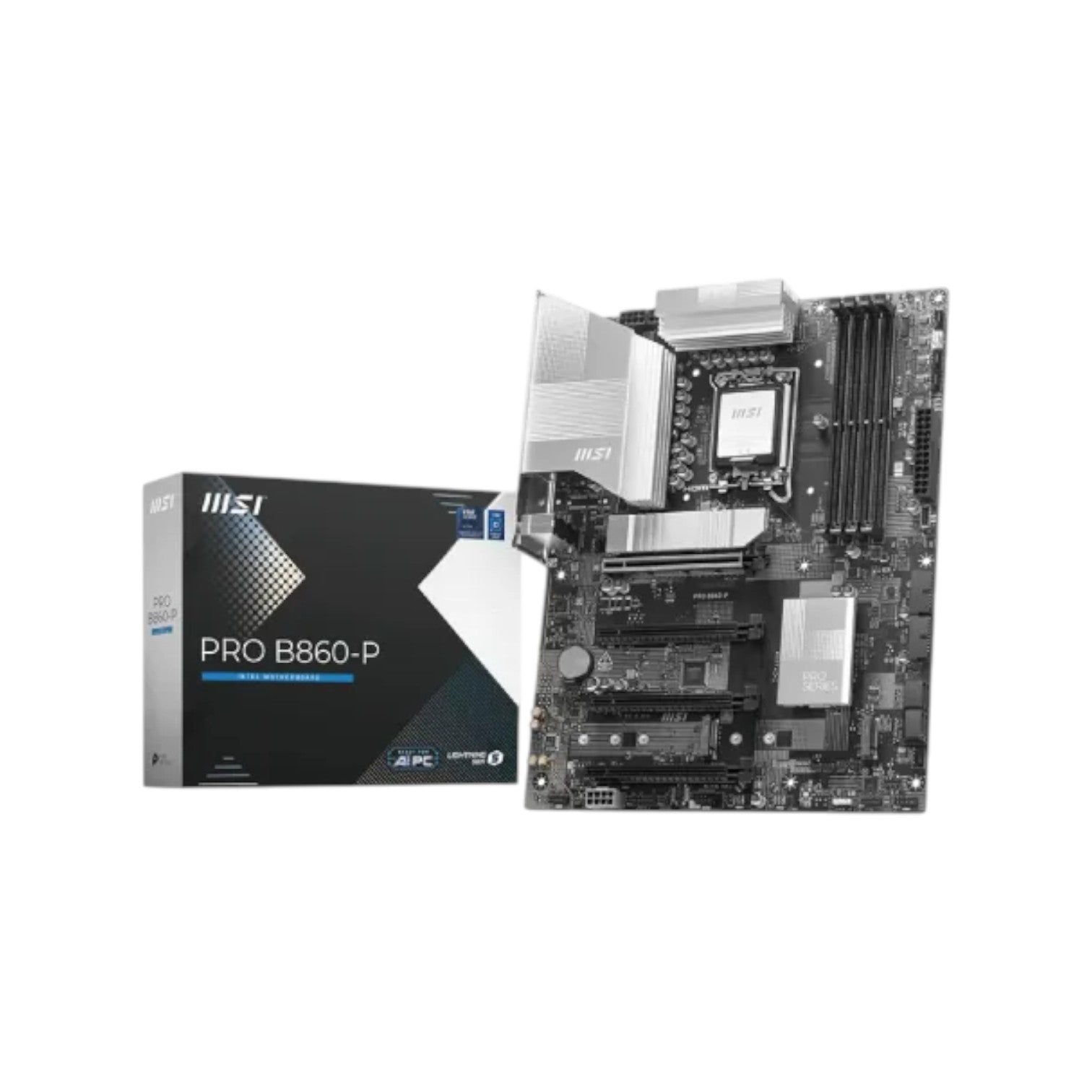

MSI PRO B860-P LGA 1851 ATX Motherboard

MSI PRO B860-P LGA 1851 ATX Motherboard

Brand: MSI (Intel)
SKU: B860-P
Availability: In stock

Key Features

Features: 3x M.2, Realtek 8126 5Gbps LAN
Supported RAM: 4x DDR5, Max 256GB 8800- 6400 (OC) MT/s
Supported CPU: Intel Core Ultra Processors (Series 2), LGA 1851
Graphics Output: 1x HDMI, 1x DisplayPort, 1x Type-C DisplayPort

Ask an expert
Tk 27,000
Tk 27,500
Tk 27,000
Subtotal: Tk 27,000
Description

Specification

Basic Information

Supported CPU Supports Intel Core Ultra Processors (Series 2)
Chipset INTEL B860
Form Factor ATX (243.84mmx304.8mm)
Audio Realtek® ALC897 Codec
7.1-Channel High Definition Audio

Expansion Slots

PCI 4x PCI-E x16 slot
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
PCI_E4 Gen PCIe 4.0 supports up to x1 (From Chipset)
M.2 Socket 3x M.2



Memory

Type DDR5
Slots 4
Supported Memory 4x DDR5 UDIMM,
Memory Support 8800 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s
Max. overclocking frequency:
• 1DPC 1R Max speed up to 8800+ MT/s
• 1DPC 2R Max speed up to 7200+ MT/s
• 2DPC 1R Max speed up to 6400+ MT/s
• 2DPC 2R Max speed up to 5600+ MT/s
Maximum Memory Maximum Memory Capacity 256GB



Graphics

Graphics 1x HDMI
Support HDMI 2.1, maximum resolution of 4K 60Hz*
1x DisplayPort
Support DisplayPort 1.4, maximum resolution of 4K 60Hz*
1x Type-C DisplayPort
Thunderbolt 4 port, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz*



Connector & Ports

HDMI 1x HDMI 2.1
Display Port (s) 1x DisplayPort
1x Type-C DisplayPort
Thunderbolt 4 port, supporting DisplayPort 1.4 over USB Type-C, with a maximum resolution of 4K 120Hz / 8K 60Hz*
USB (s) 4x USB 2.0 (Rear)
4x USB 2.0 (Front)
2x USB 5Gbps Type A (Rear)
4x USB 5Gbps Type A (Front)
2x USB 10Gbps Type A (Rear)
1x USB 10Gbps Type C (Front)
LAN Port (s) Realtek 8126 5Gbps LAN
Supported Storage 3x M.2
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280/2260 devices
4x SATA 6G
RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices
Audio 1x Front Audio (JAUD)
Internal I/O Ports 1x Thunderbolt5 card connector(JTBT5, support RTD3)
1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x Power Connector(PCIE_PWR 8pin)
1x CPU Fan
1x Combo Fan (Pump_Sys Fan)
4x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Com Port (JCOM)
1x Tuning Controller connector(JDASH)
2x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
4x USB 2.0 ports
4x USB 5Gbps Type A ports
1x USB 10Gbps Type C ports
TPM (Trusted Platform Module ) 1x TPM pin header(Support TPM 2.0)

Warranty

Warranty 3 Year warranty

Description

MSI PRO B860-P LGA 1851 ATX Motherboard

The MSI PRO B860-P LGA 1851 ATX Motherboard is a powerful and reliable option designed for gamers, creators, and professionals who demand high performance and stability. Built on the advanced Intel B860 chipset, it supports the latest Intel Core Ultra (Series 2) processors with the LGA 1851 socket, ensuring top-tier computing power for productivity, gaming, and creative workloads. Supporting dual-channel DDR5 memory with speeds up to 8600+ MHz (OC), this motherboard provides lightning-fast data transfer, efficient multitasking, and exceptional responsiveness for modern applications.

Equipped with a 12+1+1+1 digital power phase design, the MSI PRO B860-P delivers clean and consistent power to high-end processors, enhancing system reliability and overclocking potential. Its robust cooling system features expanded heatsinks and the M.2 Shield Frozr II, maintaining excellent thermal performance even during heavy workloads or extended gaming sessions.

The MSI PRO B860-P offers cutting-edge connectivity, including PCIe 5.0, Thunderbolt 4, and 5GbE LAN for ultra-fast data transfer and low-latency networking. With multiple M.2 slots and SATA 6Gb/s ports, it provides flexible and high-speed storage solutions. This MSI Intel motherboard also integrates the latest AI Engine for smart system optimization and Mystic Light for customizable RGB lighting effects, delivering a personalized and visually striking setup.

The EZ DIY features, such as the EZ M.2 Shield Frozr II and simplified layout, make installation and maintenance effortless, whether you’re a first-time builder or an experienced enthusiast. Combining performance, durability, and future-ready technologies, the MSI PRO B860-P LGA 1851 ATX Motherboard is an excellent foundation for any high-end desktop PC.

Buy the MSI PRO B860-P LGA 1851 ATX Motherboard from Tech Buy BD. In Bangladesh, you can get the latest MSI motherboards for your desktop PC. Order online or visit Tech Buy BD to get yours at the best price. The MSI PRO B860-P LGA 1851 ATX Motherboard comes with a 3-year warranty.
