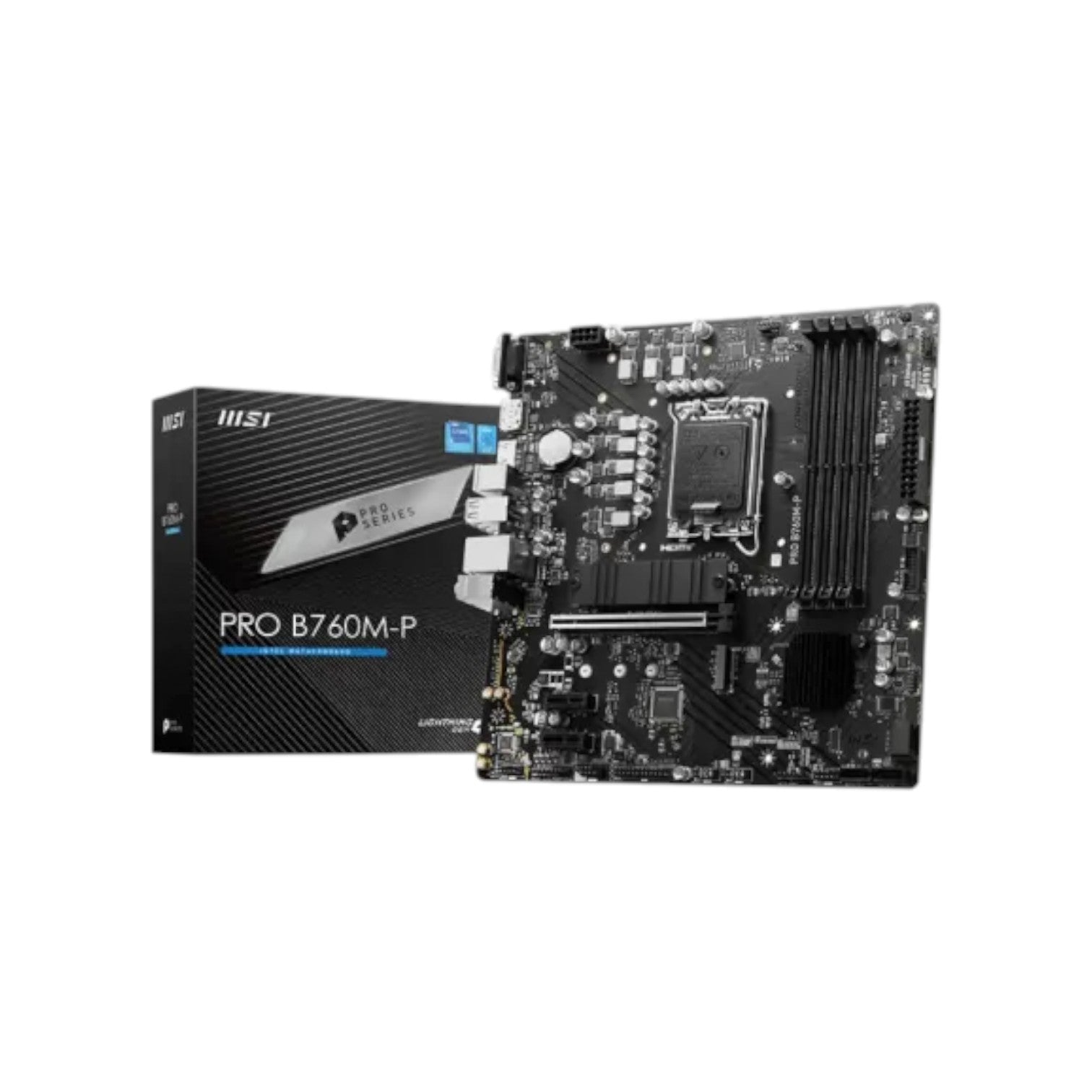

MSI PRO B760M-P DDR5 mATX Motherboard

MSI PRO B760M-P DDR5 mATX Motherboard

Brand: MSI (Intel)
SKU: PRO B760M-P
Availability: In stock

Key Features

Supported RAM: 4x DDR5, Max 192GB 6800+(OC)
Graphics Output: 1x HDMI, 1x DisplayPort, 1x VGA
Features: 2x M.2 slot, Realtek RTL8111H Gigabit LAN
Supported CPU: 14th/13th/12th Gen Intel Processors (LGA1700)

Ask an expert
Tk 15,300
Tk 13,500
Tk 15,300
Subtotal: Tk 15,300
Description

Specification

Basic Information

Supported CPU Supports 14th/13th/12th Gen Intel Core Processors, Pentium Gold and Celeron Processors
LGA 1700
Chipset INTEL B760
Form Factor mATX
243.84mmx243.84mm
Audio Realtek ALC897 Codec
7.1-Channel High Definition Audio

Expansion Slots

Dimension 1x PCI-E x16 slot
2x PCI-E x1 slot
PCI_E1 PCIe 4.0 supports up to x16 (From CPU)
PCI_E2 PCIe 4.0 supports up to x1 (From Chipset)
PCI_E3 PCIe 4.0 supports up to x1 (From Chipset)

Memory

Type DDR5
Slots 4
Supported Memory Memory Support DDR5 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
Max. overclocking frequency:
• 1DPC 1R Max speed up to 6800+ MHz
• 1DPC 2R Max speed up to 6400+ MHz
• 2DPC 1R Max speed up to 6000+ MHz
• 2DPC 2R Max speed up to 5600+ MHz

Supports Intel XMP 3.0 OC
Supports Dual-Controller Dual-Channel mode
Supports non-ECC, un-buffered memory
Maximum Memory 192GB



Graphics

Graphics 1x HDMI
Support HDMI 1.4, maximum resolution of 4K 30Hz*
1x DisplayPort
Support DP 1.4, maximum resolution of 4K 60Hz*
1x VGA
Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz



Connector & Ports

HDMI 1x HDMI
Display Port (s) 1x DisplayPort
VGA (s) 1x VGA
USB (s) 4x USB 2.0 (Rear)
4x USB 2.0 (Front)
1x USB 3.2 Gen1 Type A (Rear)
2x USB 3.2 Gen1 Type A (Front)
1x USB 3.2 Gen2 Type C (Rear)
LAN Port (s) Realtek RTL8111H Gigabit LAN
Supported Storage 2x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
4x SATA 6G
RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Audio Audio Connectors
Internal I/O Ports 1x Power Connector(ATX_PWR)
1x Power Connector(CPU_PWR)
1x CPU Fan
2x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Printer Port (JLPT)
1x Com Port (JCOM)
1x RGB LED connector(JRGB)
4x USB 2.0 ports
2x USB 3.2 Gen1 Type A ports
TPM (Trusted Platform Module) 1x TPM pin header(Support TPM 2.0)



Others

Special Features 4x EZ Debug LED

Warranty

Warranty 3 years

Description

MSI PRO B760M-P DDR5 mATX Motherboard

The MSI PRO B760M-P DDR5 mATX Motherboard is built to deliver exceptional performance, stability, and connectivity for modern Intel-based systems. Supporting 14th, 13th, and 12th Gen Intel Core, Pentium Gold, and Celeron processors on the LGA 1700 socket, this motherboard offers a powerful foundation for gaming, content creation, and productivity.

Equipped with four dual-channel DDR5 RAM slots, the board supports lightning-fast memory performance and increased bandwidth for smoother multitasking and demanding workloads. It also features two M.2 slots and four SATA III ports, allowing users to build expansive storage solutions for large projects and games. For expansion, the MSI PRO B760M-P includes two PCIe x16 slots and one PCIe x1 slot, accommodating powerful graphics cards and additional components with ease.

Connectivity is future-ready with built-in Wi-Fi 6 (802.11ax) and Bluetooth 5.3 for seamless wireless performance, alongside a 2.5 Gigabit Ethernet port for high-speed wired networking. Multiple USB 3.2 Gen 2 and Gen 2x2 ports ensure rapid data transfer, while USB 2.0 options support peripherals like keyboards and mice.

Engineered with a 12+1 Duet Rail Power System, 8-pin + 4-pin CPU connectors, and MSI’s Core Boost and Memory Boost technologies, the motherboard ensures stable power delivery and optimized CPU performance. Advanced features like Digital Power Design, Overvoltage Protection, and Load-Line Calibration enhance system reliability and overclocking potential.

Thermal management is handled by an Extended Heatsink Design, M.2 Shield Frozr, and Frozr AI Cooling, ensuring consistent cooling even during heavy workloads. Built with a premium PCB featuring 2oz thickened copper, it enhances durability, signal transmission, and heat dissipation. Steel Armor protection on PCIe slots prevents GPU sag and adds extra reinforcement.

Combining advanced power design, durable construction, and versatile connectivity, the MSI PRO B760M-P DDR5 mATX Motherboard is a perfect choice for builders who want dependable performance and cutting-edge features in a compact form factor.

Buy the MSI PRO B760M-P DDR5 mATX Motherboard from Tech Buy BD. In Bangladesh, you can get the latest MSI motherboards for your desktop PC. Order online or visit Tech Buy BD to get yours at the best price. The MSI PRO B760M-P DDR5 mATX Motherboard comes with a 3-year warranty.
