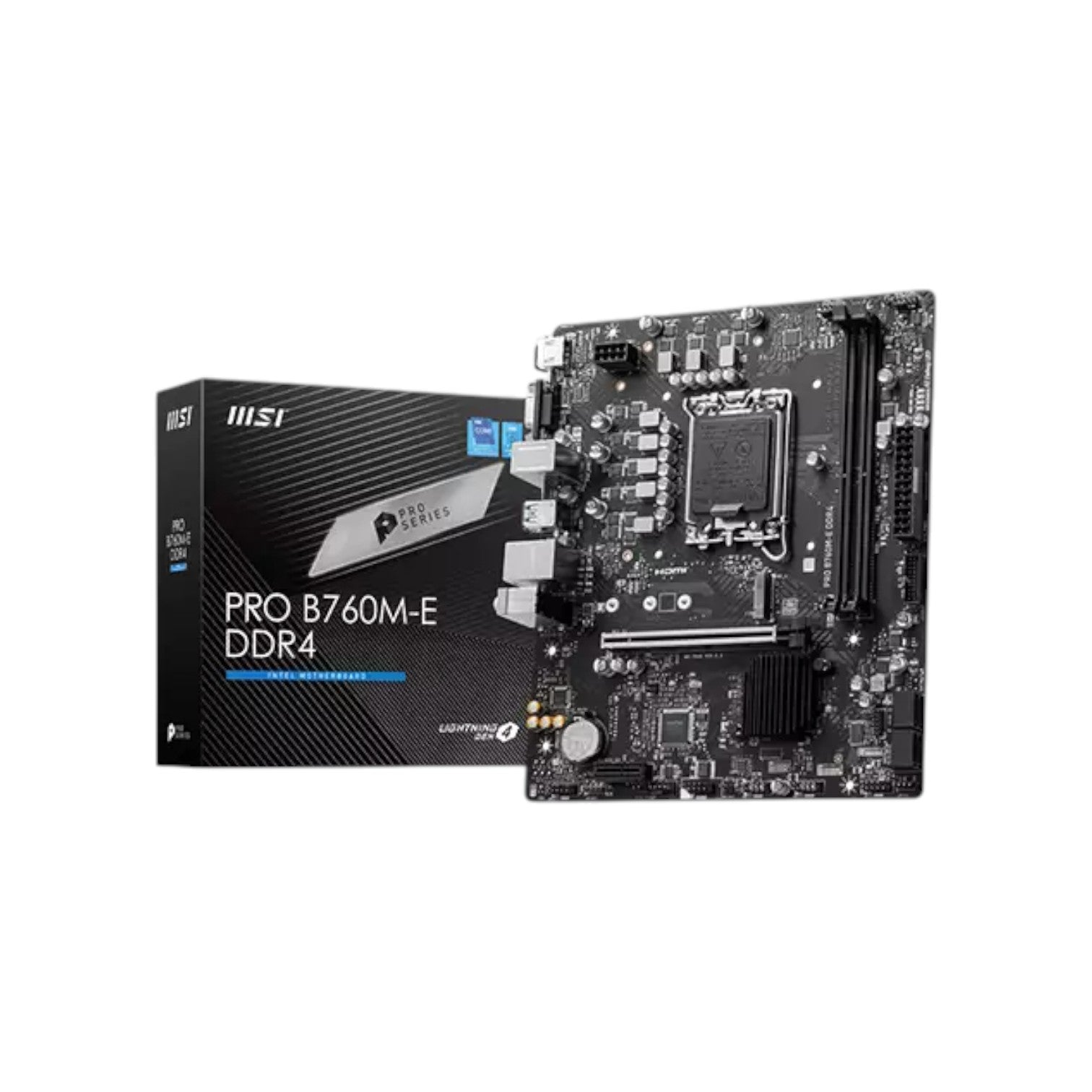

MSI PRO B760M-E DDR4 mATX Motherboard

MSI PRO B760M-E DDR4 mATX Motherboard

Brand: MSI (Intel)
SKU: PRO B760M-E DDR4
Availability: In stock

Key Features

Graphics Output: 1x HDMI, 1x VGA
Supported RAM: 2x DDR4, Max 128GB 4800(OC)
Supported RAM: 2x DDR4, Max 128GB 4800(OC)
Supported CPU: 14th/13th/12th Gen Intel Processors (LGA1700)

Ask an expert
Tk 13,000
Tk 13,500
Tk 13,000
Subtotal: Tk 13,000
Description

Specification

Basic Information

Supported CPU Supports 14th/13th/12th Gen Intel Core Processors, Pentium Gold and Celeron Processors
LGA 1700
Chipset INTEL B760
Form Factor mATX
200mmx236.16mm
Audio Realtek ALC897 Codec
7.1-Channel High-Definition Audio

Expansion Slots

PCI 1x PCI-E x16 slot
1x PCI-E x1 slot
PCI_E1 Gen PCIe 4.0 supports up to (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to (From Chipset)

Memory

Type DDR4
Slots 2
Supported Memory 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC)
Max. overclocking frequency:
• 1DPC 1R Max speed up to 4800+ MHz
• 1DPC 2R Max speed up to 4600+ MHz
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel Extreme Memory Profile (XMP)
Maximum Memory 64GB



Graphics

Graphics 1x HDMI
Support HDMI 1.4 with HDR, the maximum resolution of 4K 30Hz
1x VGA
Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz



Connector & Ports

HDMI 1x HDMI
VGA (s) 1x VGA
USB (s) 4x USB 2.0 (Rear)
4x USB 2.0 (Front)
2x USB 3.2 Gen1 Type A (Rear)
2x USB 3.2 Gen1 Type A (Front)
LAN Port (s) Realtek RTL8111H Gigabit LAN
Supported Storage 1x M.2
M.2_1 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
4x SATA 6G
RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Audio Audio Connectors
Internal I/O Ports 1x Power Connector(ATX_PWR)
1x Power Connector(CPU_PWR)
1x CPU Fan
2x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Com Port (JCOM)
1x RGB LED connector(JRGB)
2x USB 2.0 ports
1x USB 3.2 Gen1 Type A ports
TPM (Trusted Platform Module) 1x TPM pin header(Support TPM 2.0)



Others

Special Features 4x EZ Debug LED

Warranty

Warranty 3 years

Description

MSI PRO B760M-E DDR4 mATX Motherboard

The MSI PRO B760M-E DDR4 mATX Motherboard is a powerful and efficient foundation for modern Intel-based systems, offering a perfect blend of performance, reliability, and value. Designed with the LGA 1700 socket, it supports 14th, 13th, and 12th Generation Intel Core, Pentium Gold, and Celeron processors, ensuring compatibility across a wide range of builds.

Equipped with dual-channel DDR4 memory support, it delivers speeds of up to 4800+MHz (OC), enabling faster data handling and improved multitasking performance. Core Boost technology, combined with a premium digital power design, provides stable power delivery to support high-performance CPUs. Memory Boost ensures clean and reliable data transmission for maximum speed, stability, and compatibility, making it ideal for gaming and productivity tasks.

With PCIe 4.0 and Lightning Gen4 x4 M.2 support, the MSI PRO B760M-E DDR4 allows ultra-fast data transfer for NVMe SSDs and modern GPUs, enhancing system responsiveness and overall efficiency. The inclusion of AUDIO BOOST technology delivers studio-grade sound, ensuring a rich and immersive experience for gaming, movies, and music. Steel Armor reinforcement protects the VGA slots from bending and electromagnetic interference (EMI), ensuring durability and consistent performance.

Overall, the MSI PRO B760M-E DDR4 mATX Motherboard offers an excellent balance of advanced features and strong reliability, making it a great choice for gamers, creators, and professionals seeking performance without compromise.

Buy the MSI PRO B760M-E DDR4 mATX Motherboard from Tech Buy BD. In Bangladesh, you can get the latest MSI motherboards for your desktop PC. Order online or visit Tech Buy BD to get yours at the best price. The MSI PRO B760M-E DDR4 mATX Motherboard comes with a 3-year warranty.
