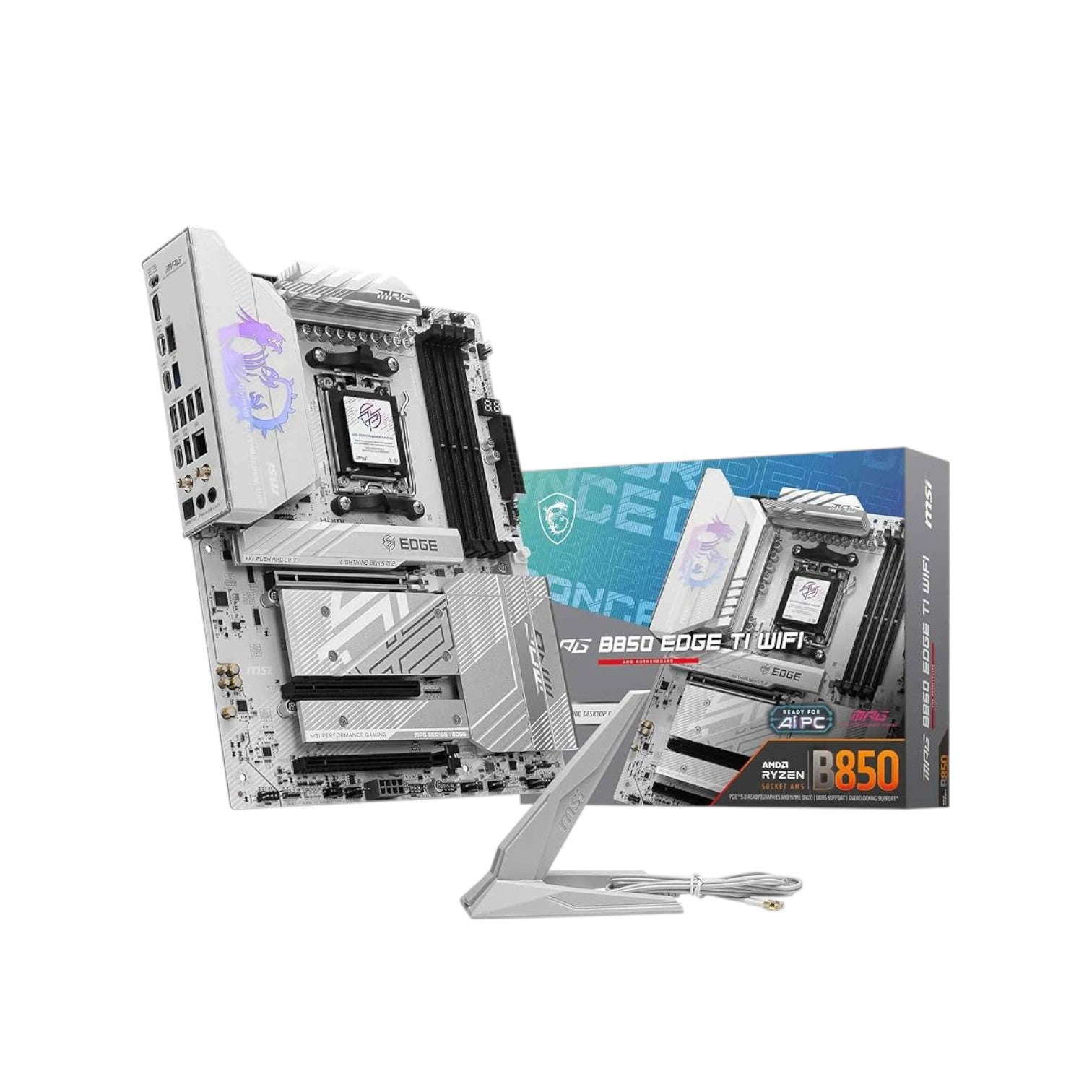

MSI MPG B850 EDGE TI WIFI AM5 ATX Motherboard (MMSIAMD5208)

Tk 40,400; ~~Tk 43,940~~; Tk 40,400
Unit price: per

Brand: MSI (AMD)

SKU: MPG B850 EDGE TI WIFI

Availability: In stock

Key Features

Graphics Output: 1x HDMI 2.1
Supported RAM: 4x DDR5, up to 256GB, 8400+ MT/s (OC)
Features: Realtek 8126 5G Ethernet, Wi-Fi 7, Bluetooth 5.4
Supported CPU: AMD Socket AM5 for AMD Ryzen 9000, 8000 & 7000 Series

Ask an expert

Subtotal: Tk 40,400

Quantity:

MSI MPG B850 EDGE TI WIFI AM5 ATX Motherboard (MMSIAMD5208)

~~Tk 43,940~~ Tk 40,400

Quantity:

MSI MPG B850 EDGE TI WIFI AM5 ATX Motherboard (MMSIAMD5208)

~~Tk 43,940~~ Tk 40,400

Description

Description

Specification

Basic Information

Supported CPU	AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors
Chipset	AMD B850
Form Factor	ATX Form Factor 304.8 x 243.84mm
Audio	Realtek ALC4080 7.1 Channel USB High-Performance Audio

Expansion Slots

PCI	Supports PCIe 5.0 x16 (For Ryzen 9000/ 7000 Series processors) Supports PCIe 4.0 x8 (For Ryzen 8700/ 8600/ 8400 Series processors) Supports PCIe 4.0 x4 (For Ryzen 8500/ 8300 Series processor)
M.2 Socket	4 x M.2

Memory

Type	DDR5
Slots	4 x UDIMM
Supported Memory	max. 256GB, DDR5 Support DDR5 8400 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s Ryzen 9000 Series Processors max. overclocking frequency: 1DPC 1R Max speed up to 8400+ MT/s 1DPC 2R Max speed up to 6400+ MT/s 2DPC 1R Max speed up to 6400+ MT/s 2DPC 2R Max speed up to 4800+ MT/s Supports AMD POR Speed and JEDEC Speed Supports Memory Overclocking and AMD EXPOTM Supports Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM, Clock Driver bypass mode only
Maximum Memory	256GB

Graphics

1 x HDMI port
Support HDMITM 2.1 with FRL port, supporting a maximum resolution of 8K 60Hz

Connector & Ports

HDMI	1x HDMI
Display Port (s)	1x DisplayPort
USB (s)	4x USB 2.0 (Rear) 4x USB 2.0 (Front) 1x USB 5Gbps Type A (Rear) 4x USB 5Gbps Type A (Front) 2x USB 10Gbps Type A (Rear) 3x USB 10Gbps Type C (Rear) 1x USB 20Gbps Type C (Front)
LAN Port (s)	1x Realtek 8126 5G LAN
Wireless Communication module	Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth 5.4, MLO, 4KQAM
Supported Storage	Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports M.2_1 Source (From CPU) supports up to PCIe 5.0 x4, supports 22110/2280 devices M.2_2 Source (From CPU) supports up to PCIe 5.0 x4, supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2, supports 2280/2260 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4, supports 2280/2260 devices 4x SATA 6G M.2_1 slot Supports up to PCIe 5.0 x4 (For Ryzen 9000/ 7000 Series processors) Supports up to PCIe 4.0 x4 (For Ryzen 8000 Series processors) M.2_2 slot Supports up to PCIe 5.0 x4 (For Ryzen 9000/ 7000 Series processors) Supports up to PCIe 4.0 x4 (For Ryzen 8700/ 8600 / 8400 Series processors) Supports up to PCIe 4.0 x2 (For Ryzen 8500/ 8300 Series processors)
RAID	Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices RAID 10 for M.2 NVMe storage devices is only supported by AMD Ryzen 9000/7000 series CPU
Audio	1 x Audio jacks
Internal I/O Ports	1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 6x System Fan 1x EZ Conn-header (JAF_2) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 20Gbps Type C ports
TPM (Trusted Platform Module )	1x TPM pin header(Support TPM 2.0)

Others

Special Features

4x EZ Debug LED
1x EZ Digit Debug LED
1x EZ Memory Detection LED

Warranty

3 Years Warranty

Description

MSI MPG B850 EDGE TI WIFI AM5 ATX Motherboard

The MSI MPG B850 EDGE TI WIFI AM5 ATX Motherboard is a high-performance MSI motherboard designed for gamers, creators, and enthusiasts seeking powerful computing with AMD Ryzen 9000, 8000, and 7000 Series desktop CPUs via the AM5 socket. It supports up to 256GB of DDR5 UDIMM memory at speeds from 5600 MT/s (JEDEC) to 8400 MT/s (OC), delivering smooth multitasking, gaming, and multimedia performance.

Memory features include AMD EXPO compatibility, dual-channel support, CUDIMM handling, and RAM overclocking. Storage and expansion are flexible with four M.2 slots (PCIe 5.0 and PCIe 4.0) and four SATA 6Gb/s ports, supporting RAID 0, 1, and 10 configurations (RAID 10 exclusive to Ryzen 9000/7000 CPUs). Audio is powered by the Realtek ALC4080 Codec for high-quality 7.1-channel sound, while networking includes 5G Realtek LAN, Wi-Fi 7, and Bluetooth 5.4.

Connectivity options are extensive, with multiple USB ports supporting 10Gbps and 20Gbps speeds, HDMI supporting up to 8K (CPU-dependent), and PCIe expansion slots for GPUs and other peripherals. The MSI MPG B850 EDGE TI WIFI AM5 ATX Motherboard combines cutting-edge performance, robust features, and future-proof design, making it ideal for high-end gaming and productivity systems.

Buy the MSI MPG B850 EDGE TI WIFI AM5 ATX Motherboard from Tech Buy BD
In Bangladesh, you can get the original MSI MPG B850 EDGE TI WIFI AM5 ATX Motherboard from Tech Buy BD. We have a large collection of the latest MSI motherboards available for your desktop. Order online or visit your nearest Tech Buy BD shop to get yours at the best price. The MSI MPG B850 EDGE TI WIFI AM5 ATX Motherboard comes with a 3-year warranty.
