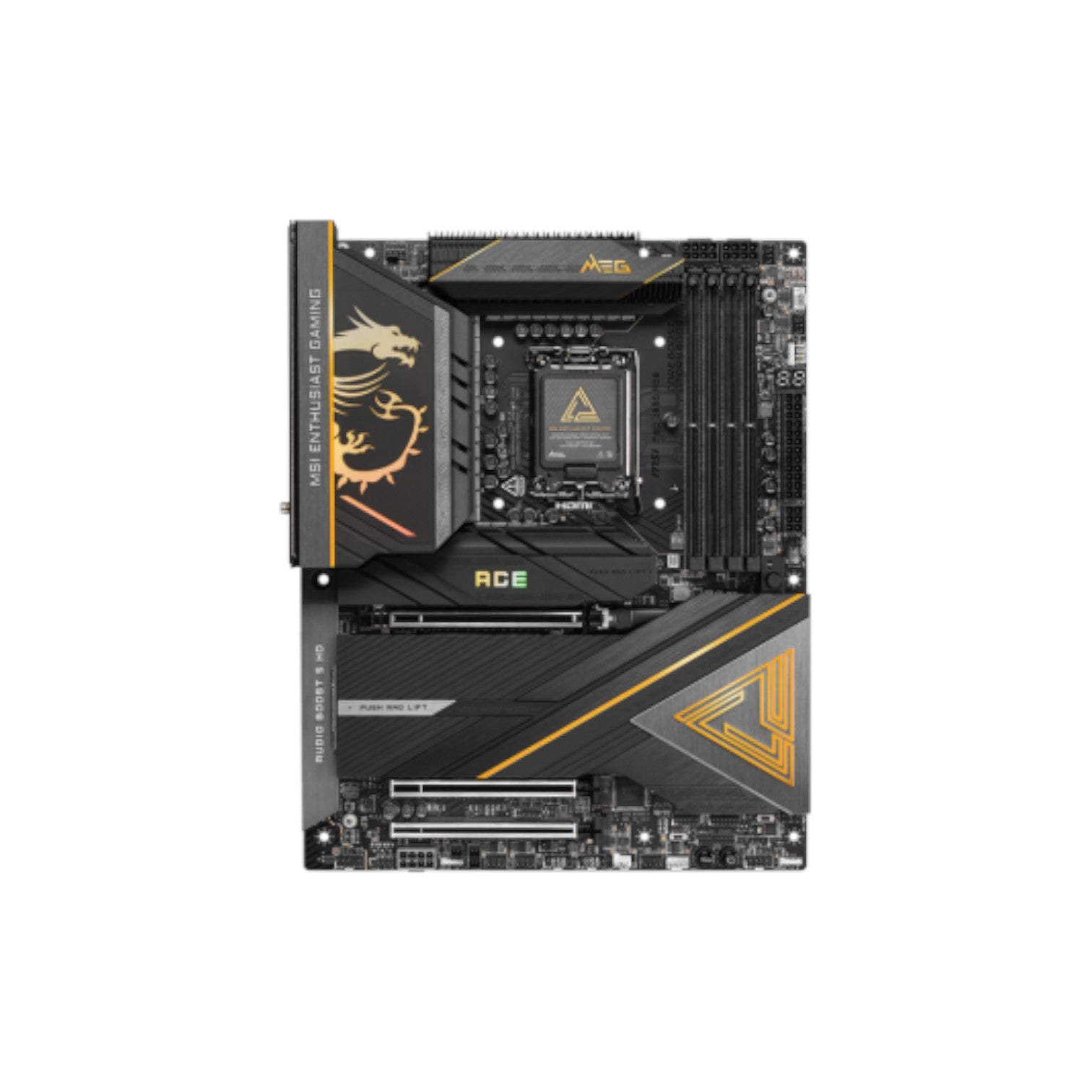

MSI MEG Z890 ACE LGA 1851 ATX Motherboard

MSI MEG Z890 ACE LGA 1851 ATX Motherboard

Brand: MSI (Intel)
SKU: MEG Z890 ACE
Availability: In stock

Key Features

Features: 5x M.2, Intel Wi-Fi 7
Graphics Output: 1x HDMI, 2x Type-C DisplayPort
Supported RAM: 4x DDR5, Max 256GB 9200 - 6400 (OC) MT/s
Supported CPU: Intel Core Ultra Processors (Series 2), LGA 1851

Ask an expert
Tk 103,900
Tk 105,000
Tk 103,900
Subtotal: Tk 103,900
Description

Specification

Basic Information

Supported CPU Supports Intel Core Ultra Processors (Series 2)
Chipset INTEL Z890
Form Factor ATX (243.84mmx304.8mm)
Audio Realtek ALC4082 Codec + ESS9219Q Combo DAC/HPA
7.1-Channel USB High-Performance Audio
Supports S/PDIF output
Supports up to 32-Bit/384 kHz playback on front panel

Expansion Slots

PCI 3x PCI-E x16 slot
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 5.0 supports up to x8 (From CPU)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)

• PCI_E1 support manual BIOS adjustment to X8+X8/X8+X4+X4
• PCI_E2 support manual BIOS adjustment to X4+X4

* PCI_E1 slot will run at x8 speed when PCI_E2 slot installing device.
** PCI_E1 slot will run at x8 speed and PCI_E2 slot will run at x4 speed when installing PCIe Gen 5 M.2 device in the M2_4 slot.
M.2 Socket 5x M.2

Memory

Type DDR5
Slots 4x DDR5 UDIMM, Maximum Memory
Supported Memory Support 9200 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s
Max. overclocking frequency:
• 1DPC 1R Max speed up to 9200+ MT/s
• 1DPC 2R Max speed up to 7200+ MT/s
• 2DPC 1R Max speed up to 4800+ MT/s
• 2DPC 2R Max speed up to 4800+ MT/s
Maximum Memory 256GB



Graphics

Graphics 1x HDMI™
Support HDMITM 2.1 with FRL port, maximum resolution of 8K 60Hz*
2x Type-C DisplayPort
Thundebolt™ 4 ports supporting DisplayPort 1.4 with HBR3 over USB Type-C, with a maximum resolution of 8K@60Hz*

* Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.



Connector & Ports

HDMI 1x HDMI 21
Display Port (s) 2x Type-C DisplayPort
Thundebolt 4 ports supporting DisplayPort 1.4 with HBR3 over USB Type-C, with a maximum resolution of 8K@60Hz*
USB (s) 4x USB 2.0 (Front)
4x USB 5Gbps Type A (Front)
11x USB 10Gbps Type A (Rear)
2x USB 10Gbps Type C (Rear)
1x USB 20Gbps Type C (Front)
* To achieve USB PD 60W fast charging for JUSBC1, the PD_PWR1 connector needs to be connected to the power supply unit.
LAN Port (s) 1x Marvell® AQC113CS 10Gbps LAN
Wireless Communication module Intel Killer BE1750x Wi-Fi 7
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax/ be

Supports Bluetooth 5.4**, MLO, 4KQAM
Supported Storage 5x M.2
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280 devices
M.2_5 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260 devices
4x SATA 6G

* M2_4 default from chipset, can support PCIe 5.0 x4 (From CPU) by manual BIOS adjustment.
** Please refer to the manual for M.2 SSD heatsink restrictions.
RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices
Audio 1x Front Audio (JAUD)
Internal I/O Ports 1x Thunderbolt5 card connector(JTBT5, support RTD3)
1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x Power Connector(PCIE_PWR 8pin)
1x Front Type-C Quick Charge Connector(PD_PWR1)
1x CPU Fan
2x Combo Fan (Pump_Sys Fan)
5x System Fan
1x EZ Conn-header (JAF_2)
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Water Flow connector
1x Slow Mode Booting Jumper(JSLOW)
1x Front Audio (JAUD)
2x Thermal Sensor connectors(T_SEN)
1x Tuning Controller connector(JDASH)
3x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
V-check point
4x USB 2.0 ports
4x USB 5Gbps Type A ports
1x USB 20Gbps Type C ports
TPM (Trusted Platform Module ) 1x TPM pin header(Support TPM 2.0)



Others

Special Features LED FEATURE
4x EZ Debug LED
1x EZ Digit Debug LED
1x EZ LED Control switch

Warranty

Warranty 3 years

Description

MSI MEG Z890 ACE LGA 1851 ATX Motherboard

The MSI MEG Z890 ACE LGA 1851 ATX Motherboard is a flagship masterpiece engineered for gamers, creators, and AI professionals who demand unmatched performance, stability, and precision. Built on the Intel Z890 chipset, it supports the latest Intel Core Ultra Processors (Series 2) with the LGA 1851 socket, delivering next-generation speed and efficiency. With dual-channel DDR5 support and overclocking capabilities reaching up to an astounding 9200+ MHz, this motherboard ensures cutting-edge performance for both gaming and intensive workloads. Powered by a robust 24+2+1+1 Duet Rail Power System and 110A Smart Power Stages, it offers rock-solid power delivery for extreme overclocking and sustained performance.

Crafted with premium-grade components, including an 8-layer PCB with 2oz thickened copper, the MEG Z890 ACE offers superior durability and signal stability. Its advanced cooling design features multiple extended heatsinks, high-conductivity MOSFET thermal pads, and M.2 Shield Frozr for optimized thermal performance even under heavy workloads. The MEG Z890 ACE is built for expansion, featuring PCIe 5.0 slots and M.2 Gen5 connectivity for the latest GPUs and ultra-fast NVMe storage. Thunderbolt 4 ports provide up to 40Gbps transfer speed and support 8K displays, while multiple USB 3.2 Gen 2 and Gen 2x2 ports ensure seamless peripheral connectivity.

Networking on this motherboard is truly next-gen, with integrated Intel Wi-Fi 7 and 5G Super LAN delivering lightning-fast, reliable, and low-latency connections for gaming and data-heavy applications. Audio quality is equally elite, with the Realtek ALC4082 codec and Audio Boost 5 technology offering immersive, studio-grade 7.1-channel sound. User-friendly EZ DIY features such as pre-installed I/O shielding, Debug LEDs, and EZ M.2 installation simplify the building process, making it ideal for both enthusiasts and professionals.

With its combination of futuristic design, uncompromising performance, and premium features, the MSI MEG Z890 ACE LGA 1851 ATX Motherboard stands as a true powerhouse for high-performance PC builds. Whether for gaming domination, AI computing, or content creation, it provides the ultimate platform for pushing performance boundaries.

Buy the MSI MEG Z890 ACE LGA 1851 ATX Motherboard from Tech Buy BD. In Bangladesh, you can get the latest MSI motherboards for your desktop PC. Order online or visit Tech Buy BD to get yours at the best price. The MSI MEG Z890 ACE LGA 1851 ATX Motherboard comes with a 3-year warranty.
