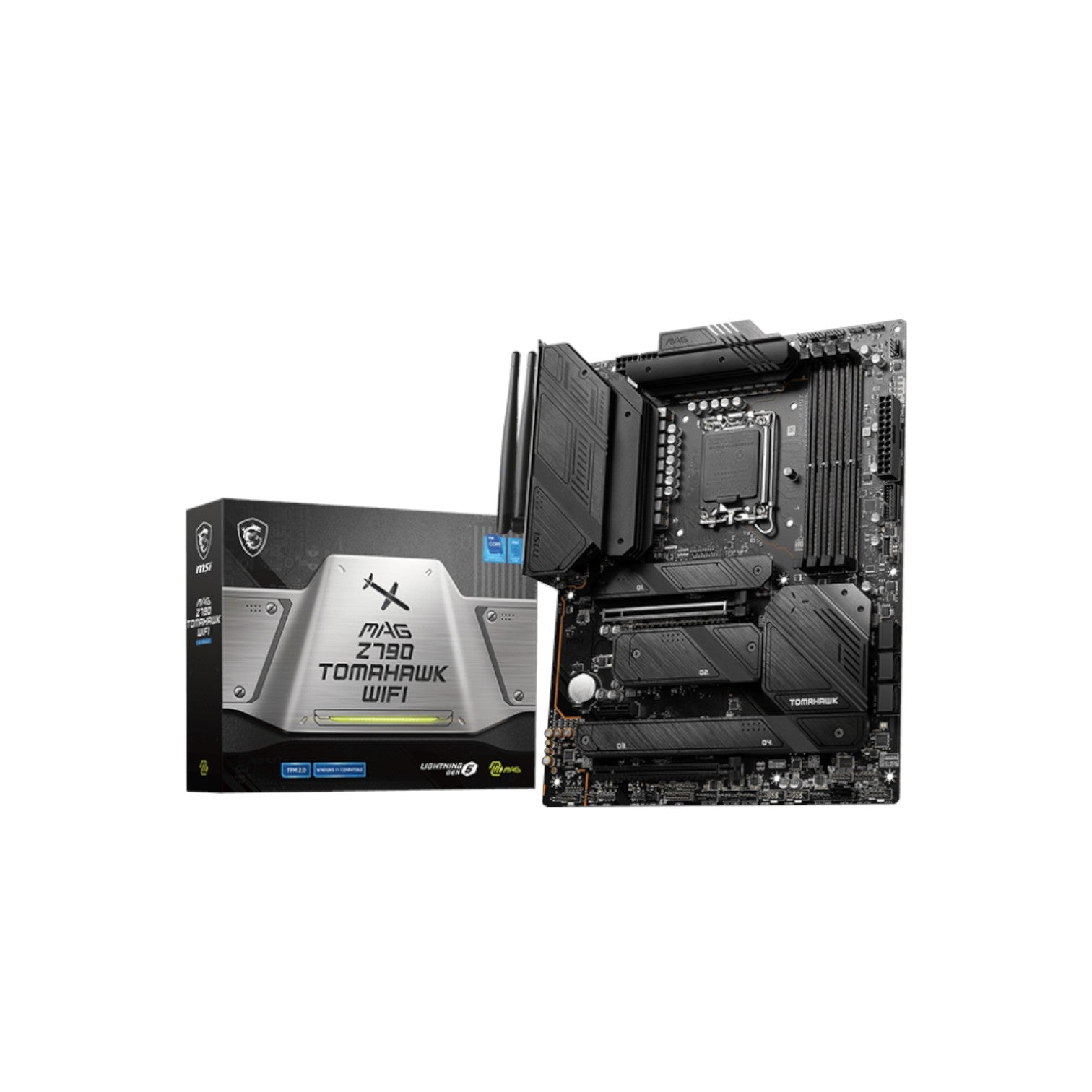

MSI MAG Z790 TOMAHAWK WIFI ATX Motherboard

MSI MAG Z790 TOMAHAWK WIFI ATX Motherboard

Brand: MSI (Intel)
SKU: MAG Z790 TOMAHAWK WIFI
Availability: In stock

Key Features

Graphics Output: 1x HDMI, 1x DisplayPort
Features: 2.5G LAN with Wi-Fi 6E Solution
Supported RAM: 4x DDR5, 7200+(OC), Max 192GB
Supported CPU: 14th/13th/12th Gen Core, Pentium Gold & Celeron Processor (LGA 1700)

Ask an expert
Tk 42,000
Tk 42,500
Tk 42,000
Subtotal: Tk 42,000
Description

Specification

Basic Information

Supported CPU Supports 14th/13th/12th Gen Intel Core Processors, Pentium Gold, and Celeron Processors
Processor socket LGA1700
Chipset Intel Z690 Chipset
Form Factor ATX
243.84mmx304.8mm
Audio Realtek ALC4080 Codec
7.1-Channel USB High Performance Audio
Supports S/PDIF output
Supports up to 32-Bit/384 kHz playback on front panel
Special Features LED FEATURE: 4x EZ Debug LED

Expansion Slots

PCI 2x PCI-E x16 slot
Supports x16/x4
1x PCI-E x1 slot
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
M.2 Socket 4x M.2 slots

Memory

Type DDR5
Slots 4 x DIMM
Supported Memory Memory Support 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
Max. overclocking frequency:
• 1DPC 1R Max speed up to 7200+ MHz
• 1DPC 2R Max speed up to 6600+ MHz
• 2DPC 1R Max speed up to 6400+ MHz
• 2DPC 2R Max speed up to 5600+ MHz
Supports Intel XMP3.0 OC
Supports Dual-Controller Dual-Channel mode
Supports non-ECC, un-buffered memory
Maximum Memory 192GB



Graphics

Graphics 1x HDMI
Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz
1x DisplayPort
Support DP 1.4, maximum resolution of 8K 60Hz*



Connector & Ports

HDMI 1x HDMI 2.1
Display Port (s) 1x DisplayPort 1.4
USB (s) 4x USB 2.0 (Front)
4x USB 3.2 Gen1 Type A (Rear)
2x USB 3.2 Gen1 Type A (Front)
4x USB 3.2 Gen2 Type A (Rear)
1x USB 3.2 Gen2 Type C (Rear)
1x USB 3.2 Gen2 Type C (Front)
1x USB 3.2 Gen2x2 Type C (Rear)
LAN Port (s) Intel 2.5Gbps LAN
Wireless Communication module Intel Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax

Supports Bluetooth® 5.3, FIPS, FISMA
Supported Storage 4x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
7x SATA 6G
RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices
Audio 1x Front Audio (JAUD)
Internal I/O Ports 1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
6x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x TBT connector (JTBT, supports RTD3)
1x Tuning Controller connector(JDASH)
3x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
4x USB 2.0 ports
2x USB 3.2 Gen1 Type A ports
1x USB 3.2 Gen2 Type C ports
TPM (Trusted Platform Module ) 1x TPM pin header(Support TPM 2.0)

Warranty

Warranty 3 years

Description

MSI MAG Z790 TOMAHAWK WIFI ATX Motherboard

The MSI MAG Z790 TOMAHAWK WIFI ATX Motherboard is a premium high-performance motherboard built to deliver outstanding stability, speed, and efficiency for gamers, creators, and professionals. Equipped with the Intel Z790 chipset and LGA 1700 socket, it supports 14th, 13th, and 12th Generation Intel Core, Pentium Gold, and Celeron processors, offering a powerful foundation for any modern desktop build. With four DDR5 slots supporting dual-channel memory and speeds of up to 7200 MHz (OC), it ensures lightning-fast data processing and multitasking performance. The motherboard features seven SATA III ports and four M.2 slots, providing flexible and high-speed storage options with RAID 0, 1, 5, and 10 configurations for both performance and redundancy.

The MSI MAG Z790 TOMAHAWK WIFI offers superior connectivity with PCIe 5.0 x16, PCIe 4.0 x16, and PCIe 3.0 x1 slots, allowing support for the latest GPUs and expansion cards. Networking is seamless with an Intel 2.5Gbps LAN and Wi-Fi 6E technology, ensuring high-speed and stable connections for gaming, streaming, and productivity. Bluetooth 5.2 provides smooth pairing with wireless peripherals, while the Realtek ALC4080 codec delivers immersive 7.1-channel HD audio for a premium entertainment and gaming experience.

Comprehensive connectivity options include USB 3.2 Gen 2x2 Type-C, multiple USB 3.2 Gen 1 and Gen 2 Type-A ports, and front-panel USB headers, allowing fast and flexible device connections. Video output options include HDMI and DisplayPort, supporting high-resolution displays with vibrant visuals. The motherboard’s robust thermal management is supported by extended heatsinks, high-quality MOSFET thermal pads, and optimized airflow, ensuring stable performance even under heavy workloads. Additional features such as RGB headers, TPM 2.0 support, chassis intrusion detection, and BIOS Flash and Clear CMOS buttons further enhance convenience and control.

Buy the MSI MAG Z790 TOMAHAWK WIFI ATX Motherboard from Tech Buy BD. In Bangladesh, you can get the latest MSI motherboards for your desktop PC. Order online or visit Tech Buy BD to get yours at the best price. The MSI MAG Z790 TOMAHAWK WIFI ATX Motherboard comes with a 3-year warranty.
