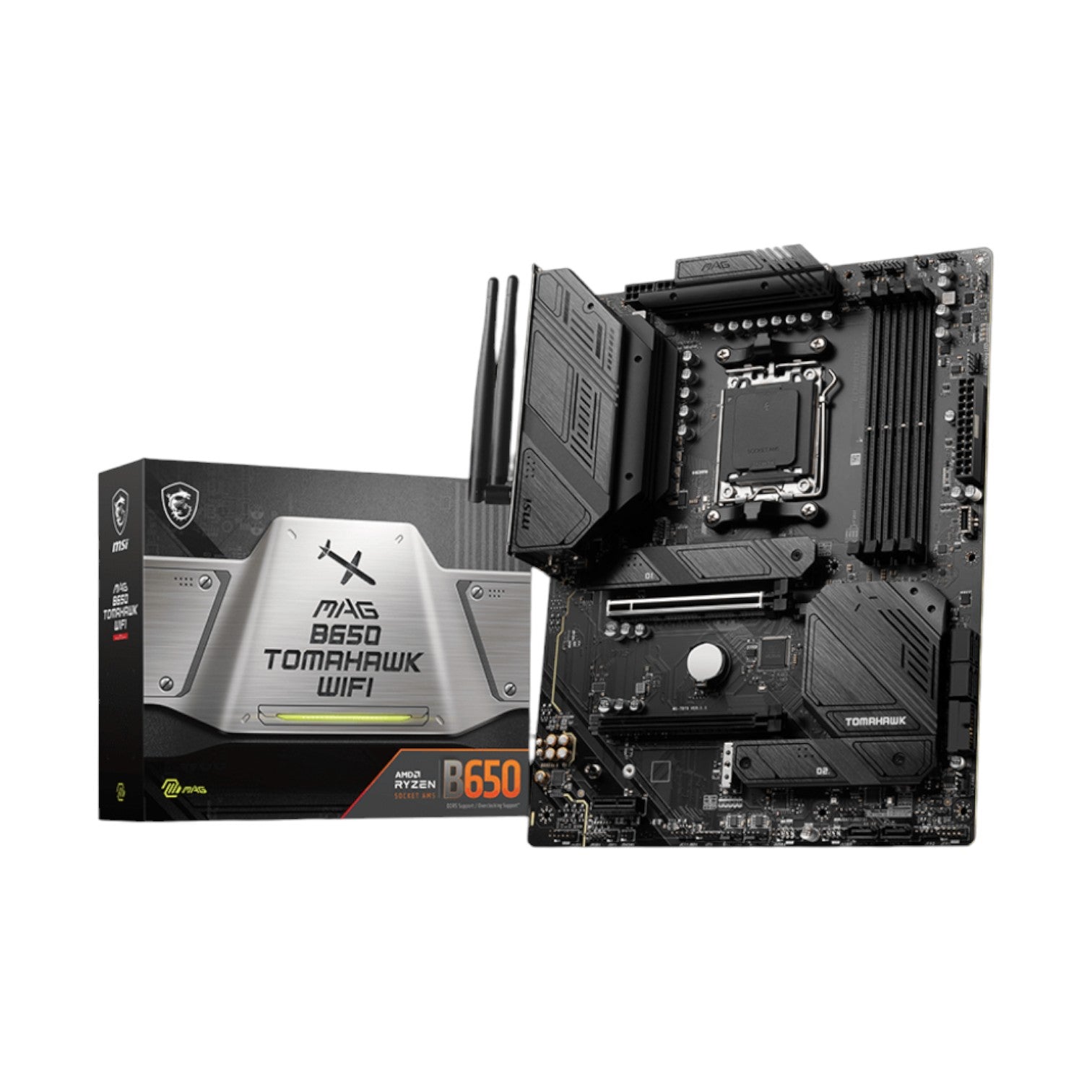

MSI MAG B650 TOMAHAWK WIFI DDR5 AMD AM5 ATX Motherboard

MSI MAG B650 TOMAHAWK WIFI DDR5 AMD AM5 ATX Motherboard

Brand: MSI (AMD)
SKU: MAG B650 TOMAHAWK WIFI
Availability: In stock

Key Features

Graphics Output: 1x HDMI, 1x Display Port
Supported RAM: 4x DDR5, up to 6400+(OC) MHz
Features: 2.5G LAN and Intel Wi-Fi 6E Solution
Supported CPU: Ryzen 9000/ 8000/ 7000 Series Processors for Socket AM5

Ask an expert
Tk 30,600
Tk 31,200
Tk 30,600
Subtotal: Tk 30,600
Description

Specification

Basic Information

Supported CPU Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors
Socket AM5
Chipset AMD B650
Form Factor ATX
243.84mmx304.8mm
Audio Realtek ALC4080 Codec
7.1-Channel High Performance Audio
Supports S/PDIF output
Supports up to 32-Bit/384 kHz playback on front panel

Expansion Slots

PCI

2x PCI-E x16 slot
Support x16/ x4
1x PCI-E x1 slot
PCI_E1 PCIe 4.0 supports up to x16 (From CPU)
PCI_E2 PCIe 4.0 supports up to x4 (From Chipset)
PCI_E3 PCIe 3.0 supports up to x1 (From Chipset)



Memory

Type DDR5
Slots 4x UDIMM
Supported Memory Memory Support DDR5 6600+(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz
Maximum Memory 128GB



Graphics

Graphics 1x HDMI
1x DisplayPort
Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz
Support DP 1.4, maximum resolution of 8K 60Hz



Connector & Ports

HDMI 1x HDMI
Display Port (s) 1x DisplayPort
USB (s) 2x USB 2.0 (Rear)
4x USB 2.0 (Front)
4x USB 3.2 Gen1 Type A (Rear)
2x USB 3.2 Gen1 Type A (Front)
3x USB 3.2 Gen2 Type A (Rear)
1x USB 3.2 Gen2 Type C (Front)
1x USB 3.2 Gen2x2 Type C (Rear)
LAN Port (s) Realtek RTL8125B 2.5Gbps LAN
Wireless Communication module AMD Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX
Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands
Supports 802.11 a/ b/ g/ n/ ac/ ax

Supports Bluetooth 5.2
Supported Storage 3x M.2 slot
M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_2 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_3 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
6x SATA 6G port
RAID Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices
Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
Audio Audio Connectors
Internal I/O Ports 1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
6x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Tuning Controller connector(JDASH)
2x Addressable V2 RGB LED connector (JARGB_V2)
2x RGB LED connector(JRGB)
4x USB 2.0
2x USB 3.2 Gen1 Type A
1x USB 3.2 Gen2 Type C
TPM (Trusted Platform Module )

1x TPM pin header(Support TPM 2.0)



Others

Special Features 4x EZ Debug LED

Warranty

Warranty 3 Years

Description

MSI MAG B650 TOMAHAWK WIFI DDR5 AMD AM5 ATX Motherboard

The MSI MAG B650 TOMAHAWK WIFI DDR5 AMD AM5 ATX Motherboard is engineered for gamers and creators who demand reliable performance, superior efficiency, and future-ready technology. Supporting AMD Ryzen 8000 and 7000 Series processors with up to 16 Zen 4 cores, this AM5 motherboard offers exceptional computing power and stability. It supports dual-channel DDR5 memory with a maximum capacity of 128GB and speeds up to 6400+ MHz (OC), ensuring faster data transfer, smoother multitasking, and improved overall system responsiveness.

Equipped with MSI’s Core Boost technology, the motherboard delivers precise and undistorted power to the CPU, optimizing both multi-core performance and overclocking potential. The thermal design includes an extended heatsink, 7W/mK MOSFET thermal pads, additional choke pads, and a double-sided M.2 Shield Frozr for consistent cooling and sustained performance during intensive workloads or gaming sessions. Built with a 6-layer PCB featuring 2oz thickened copper and server-grade materials, it ensures excellent power delivery and long-term durability.

For expansion, the MSI MAG B650 TOMAHAWK WIFI includes PCIe 4.0 slots and Lightning Gen 4 x4 M.2 support, allowing users to connect next-gen GPUs and ultra-fast NVMe SSDs. The M.2 Shield Frozr prevents SSD thermal throttling, ensuring stable high-speed performance. The rear I/O panel provides user-friendly features like one-click Turbo Mode activation, direct safe boot access, and an RGB light toggle switch.

Connectivity is another strong point of this motherboard. It offers seven USB-A 3.2 Gen 1 and Gen 2 ports with transfer speeds up to 10Gbps, along with a single USB-C 3.2 Gen 2x2 port supporting speeds up to 20Gbps. These versatile connections make it perfect for a variety of peripherals, including capture cards, storage devices, and high-speed audio interfaces.

The MSI MAG B650 TOMAHAWK WIFI DDR5 AMD AM5 ATX Motherboard is built for performance, durability, and ease of use, combining a solid power design with enhanced cooling and next-generation connectivity for a premium desktop experience.

Buy the MSI MAG B650 TOMAHAWK WIFI DDR5 AMD AM5 ATX Motherboard from Tech Buy BD
In Bangladesh, you can get the original MSI MAG B650 TOMAHAWK WIFI DDR5 AMD AM5 ATX Motherboard from Tech Buy BD. We have a large collection of the latest MSI motherboards available for your desktop PC. Order online or visit your nearest Tech Buy BD shop to get yours at the best price. The MSI MAG B650 TOMAHAWK WIFI DDR5 AMD AM5 ATX Motherboard comes with a 3-year warranty.
