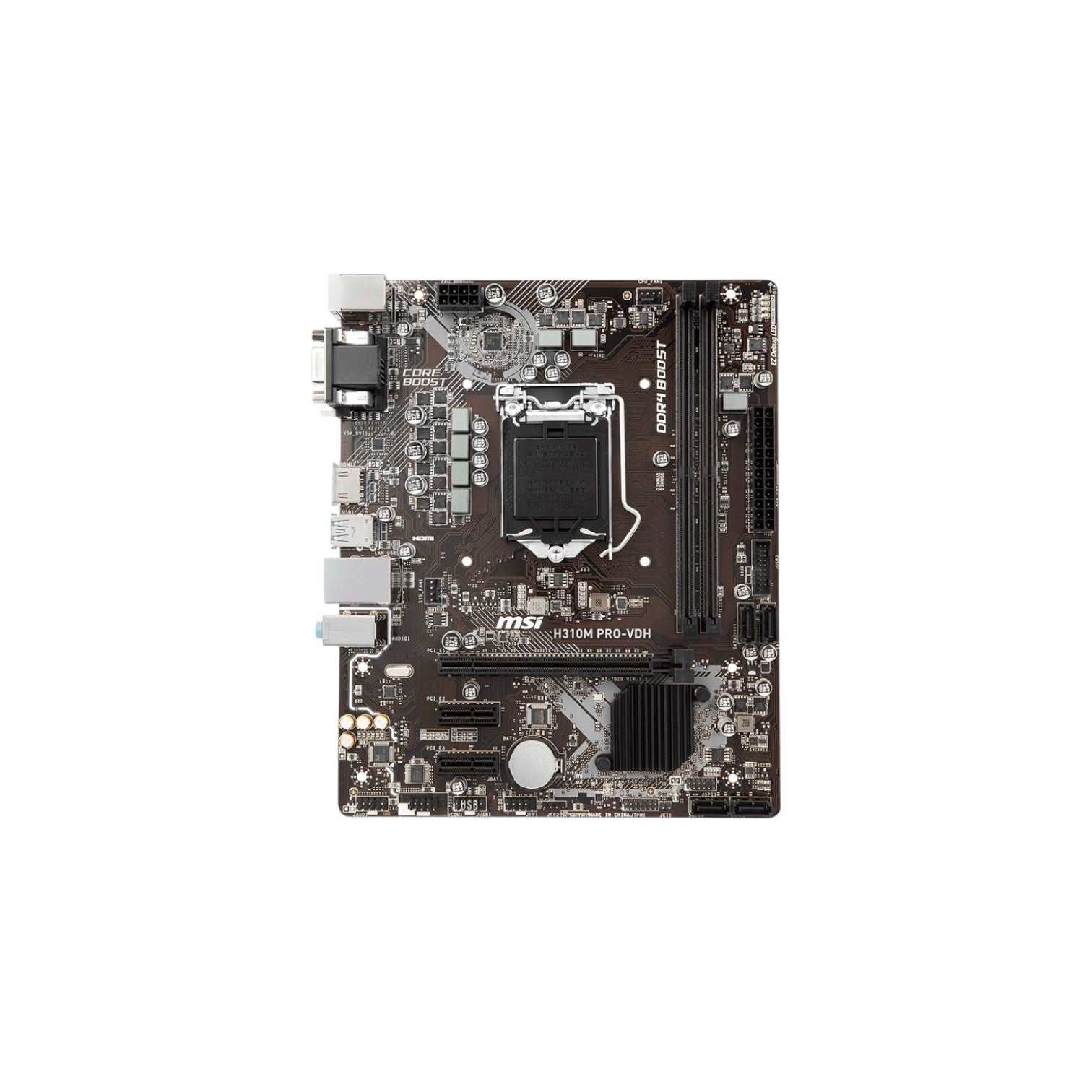

MSI H310M PRO-VDH Intel 9th Gen Motherboard

Brand: MSI (Intel)
SKU: MSI H310M PRO-VDH
Availability: In stock

Key Features

X-Boost & Core Boost
EZ Debug LED: For troubleshoot
Audio Boost: studio grade sound
Supports 9th / 8th Gen Intel Core / Pentium Gold / Celeron processors for LGA 1151

Tk 8,800
Tk 9,000
Tk 8,800
Subtotal: Tk 8,800

Specification

Basic Information

Supported CPU Supports 9th / 8th Gen Intel Core / Pentium Gold / Celeron processors for LGA 1151 socket
Chipset Intel H310 Chipset
Form Factor m-ATX Form Factor

Expansion Slots

PCI 1 x PCIe 3.0 x16 slot
2 x PCIe 2.0 x1 slots

Memory

Type Supports Dual-Channel mode
Slots 2 x DDR4 memory slots
Supported Memory Supports DDR4 2666/ 2400/ 2133 MHz (by JEDEC)
Supports DDR4 2666/ 2400/ 2133 MHz (by XMP OC)
Supports non-ECC, un-buffered memory
Supports Intel Extreme Memory Profile (XMP)
Maximum Memory 32GB

Graphics

Graphics 1 x VGA port, supports a maximum resolution of 2048x1536@50Hz, 2048x1280@60Hz, 1920x1200@60Hz
1 x DVI-D port, supports a maximum resolution of 1920x1200@60Hz
1 x HDMI™ port, supports a maximum resolution of 4096x2160@30H

Connector & Ports

HDMI 1 x HDMI port, supports a maximum resolution of 4096x2160@30H
DVI-D (s) 1 x DVI-D port, supports a maximum resolution of 1920x1200@60Hz
USB (s) 4 x USB 3.1 Gen1 (SuperSpeed USB) ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connector)
6 x USB 2.0 (High-speed USB) ports (4 ports on the back panel, 2 ports available through the internal USB connector)
LAN Port (s) 1 x RTL8111H Gigabit LAN controller
Supported Storage Intel H310 Chipset
4 x SATA 6Gb/s ports
Supports Intel® Rapid Storage Technology
Audio Realtek ALC 887/897 Codec

Warranty

Warranty 3 years

Description

MSI H310M PRO-VDH Intel 9th Gen Motherboard

The MSI H310M PRO-VDH Intel 9th Gen Motherboard is a dependable and budget-friendly motherboard designed for stability, performance, and everyday computing needs. Built on the Intel H310 chipset, it supports 9th and 8th Gen Intel Core, Pentium Gold, and Celeron processors using the LGA 1151 socket, making it a versatile choice for entry-level and mainstream desktop systems.

This compact micro-ATX motherboard supports up to 32GB of DDR4 memory running at speeds up to 2666 MHz through two DIMM slots, ensuring smooth multitasking and efficient system performance. It features a PCIe 3.0 x16 slot for dedicated graphics cards and two PCIe 2.0 x1 slots for additional expansion cards, providing flexibility for upgrades. Storage options include four SATA III ports for connecting SSDs and HDDs, delivering fast data transfer rates for optimal storage performance.

For visuals, the motherboard supports HDMI, DVI-D, and VGA outputs, allowing compatibility with a wide range of monitors. Audio quality is enhanced by Realtek 7.1 Channel HD Audio, ensuring clear and immersive sound. Networking is handled by a reliable Gigabit LAN connection, and users can easily add wireless connectivity with a compatible adapter if needed.

The MSI H310M PRO-VDH also includes useful MSI features like Core Boost for improved power delivery, Audio Boost for enhanced sound quality, EZ Debug LED for quick troubleshooting, and PCIe Steel Armor for added slot durability. These features make it a reliable foundation for home PCs, office workstations, and budget-friendly gaming systems.

Buy the MSI H310M PRO-VDH Intel 9th Gen Motherboard from Tech Buy BD. In Bangladesh, you can get the latest MSI motherboards for your desktop PC. Order online or visit Tech Buy BD to get yours at the best price. The MSI H310M PRO-VDH Motherboard comes with a 3-year warranty.
