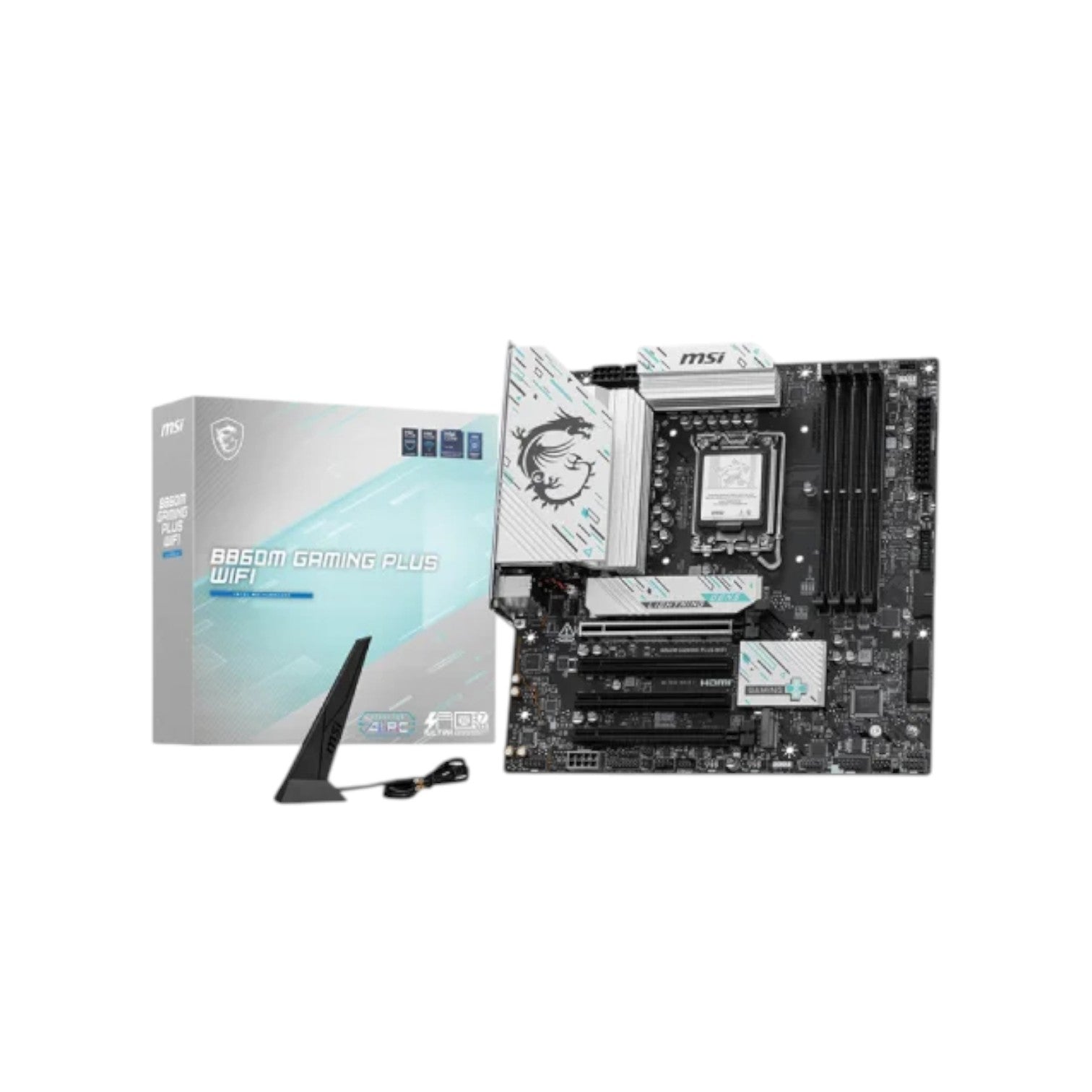

MSI B860 GAMING PLUS WIFI LGA 1851 ATX Motherboard

Brand: MSI (Intel)
SKU: B860 GAMING PLUS WIFI
Availability: In stock

Key Features

Supported RAM: 4x DDR5, Max 256GB, 8800+ MT/s (OC)
Supported CPU: Intel Core Ultra Processors (Series 2), LGA 1851
Graphics Output: 1x HDMI, 1x DisplayPort, 1x Type-C (Thunderbolt 4)
Features: 3x M.2, Intel Killer E5000 5Gbps LAN, Wi-Fi 7, Bluetooth 5.4

Tk 26,700
Tk 26,300
Tk 26,700
Subtotal: Tk 26,700

Specification

Basic Information

Supported CPU Supports Intel Core Ultra Processors (Series 2), LGA1851 Socket
Chipset INTEL B860
Form Factor ATX Form Factor
243.84mmx304.8mm
Audio Realtek ALC897 Codec
7.1-Channel High Definition Audio

Expansion Slots

PCI 4x PCI-E x16 slot
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
PCI_E4 Gen PCIe 4.0 supports up to x1 (From Chipset)
M.2 Socket 3x M.2

Memory

Type DDR5
Slots 4 x DIMM
Supported Memory Memory Support 8800 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s
Max. overclocking frequency:
• 1DPC 1R Max speed up to 8800+ MT/s
• 1DPC 2R Max speed up to 7200+ MT/s
• 2DPC 1R Max speed up to 6400+ MT/s
• 2DPC 2R Max speed up to 5600+ MT/s

Supports Intel POR Speed and JEDEC Speed
Supports Memory Overclocking and Intel XMP 3.0
Supports Dual-Controller Dual-Channel mode
Supports Non-ECC, Un-buffered memory
Supports CUDIMM

Maximum Memory

Maximum Memory Capacity 256GB



Graphics

Graphics

1x HDMI™
Support HDMI™ 2.1, maximum resolution of 4K 60Hz*
1x DisplayPort
Support DisplayPort 1.4, maximum resolution of 4K 60Hz*
1x Type-C DisplayPort
Thunderbolt™ 4 port, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz*
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.



Connector & Ports

HDMI 1x HDMI 2.1
Display Port (s) 1x DisplayPort 1.4a
USB (s) 4x USB 2.0 (Rear)
4x USB 2.0 (Front)
2x USB 5Gbps Type A (Rear)
4x USB 5Gbps Type A (Front)
2x USB 10Gbps Type A (Rear)
1x USB 10Gbps Type C (Front)
LAN Port (s) Intel Killer E5000 5Gbps LAN
Wireless Communication module Intel Killer BE1750x Wi-Fi 7
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax/ be

Supports Bluetooth 5.4**, MLO, 4KQAM
Supported Storage 3x M.2
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280/2260 devices
4x SATA 6G
RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Audio 1x Front Audio (JAUD)
Internal I/O Ports 1x Thunderbolt5 card connector(JTBT5, support RTD3)
1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x Power Connector(PCIE_PWR 8pin)
1x CPU Fan
1x Combo Fan (Pump_Sys Fan)
4x System Fan
1x EZ Conn-header (JAF_1)
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Com Port (JCOM)
1x Tuning Controller connector(JDASH)
2x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
4x USB 5Gbps Type A ports
1x USB 10Gbps Type C ports


Warranty

Warranty 3 Years Warranty

Description

MSI B860 GAMING PLUS WIFI LGA 1851 ATX Motherboard

The MSI B860 GAMING PLUS WIFI LGA 1851 ATX Motherboard is a next-generation gaming and productivity platform designed for users who demand exceptional performance, connectivity, and customization. Built on the Intel B860 chipset, it supports the latest Intel Core Ultra Processors through the LGA 1851 socket, delivering powerful computing performance for both gamers and professionals. Supporting DDR5 memory speeds up to 8600+ MHz across four UDIMM slots, it ensures ultra-fast data processing, multitasking efficiency, and stable overclocking capabilities.

This motherboard offers extensive storage flexibility with multiple M.2 slots, including a flagship PCIe 5.0 x4 slot for cutting-edge NVMe SSDs, additional PCIe 4.0 slots, and four SATA 6Gb/s connectors to accommodate diverse storage setups. For network connectivity, it features advanced Intel Wi-Fi 7 technology and a high-speed Realtek Intel Killer LAN port (up to 5Gbps), providing seamless online performance with minimal latency.

The MSI B860 GAMING PLUS WIFI ensures stable power delivery with its 12+1+1+1 phase VRM design, supported by MSI’s Core Boost technology and premium components. Efficient cooling is achieved through MSI’s enhanced heatsink architecture and EZ M.2 Shield Frozr II, keeping the system stable even under heavy loads. Connectivity is future-ready, with Thunderbolt 4 via USB Type-C, HDMI 2.1, and DisplayPort 1.4 offering multiple display options for high-resolution outputs and fast data transfers.

With a robust steel-reinforced PCIe slot design, RGB lighting customization, and a sleek gamer-oriented layout, this motherboard combines durability and style with top-tier performance. Whether building a high-end gaming rig or a professional workstation, the MSI B860 GAMING PLUS WIFI is engineered to deliver unmatched reliability and speed for next-gen computing.

Buy the MSI B860 GAMING PLUS WIFI LGA 1851 ATX Motherboard from Tech Buy BD. In Bangladesh, you can get the latest MSI motherboards for your desktop PC. Order online or visit Tech Buy BD to get yours at the best price. The MSI B860 GAMING PLUS WIFI LGA 1851 ATX Motherboard comes with a 3-year warranty.
