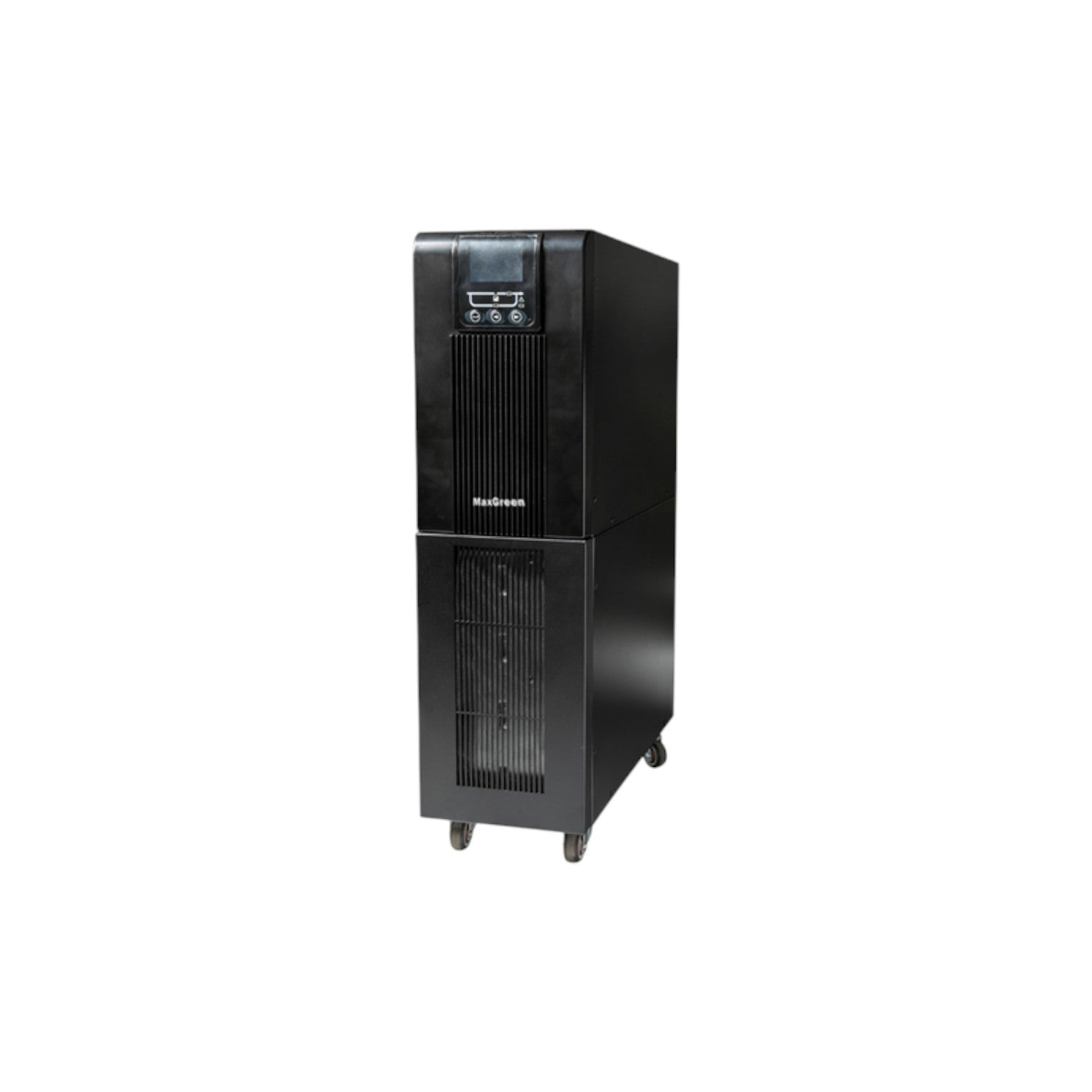

MaxGreen MGO-W6KS 6KVA Standard Backup High-Frequency Online UPS

Tk 93,000
Tk 101,450
Tk 93,000
Brand: MaxGreen
SKU: UPS-MG-W6KS-6KVA
Availability: In stock

Key Features

  • Model: MGO-W6KS
  • 220VAC single-phase three-wire
  • Input frequency range: 45Hz-65Hz
  • Battery Capacity: 12v 9Ah
  • Rated Power: 6KVA/5.4KW
Subtotal: Tk 93,000

Specification

Main Feature

Capacity 6KVA/5.4KW
12v 9Ah
Input Voltage Single-phase 120Vac-288Vac
Output Voltage 220Vac
Frequency (Battery Mode) Frequency precision 0.25%
Noise Level <55dB
Battery Battery brand: Always/Star/Equivalent
Battery Capacity: 12v 9Ah
Battery Qty: 16 units
Battery Cabinet: Internal Battery
Alarm Battery low-voltage, mains abnormal, overload, UPS fault, over-temperature protection
Others Charging capability: >6h for 90% re-charging of standard model
Rectifier Type: IGBT rectifier

Input Features

Frequency 45Hz-65Hz
Voltage Range Single-phase 120Vac-288Vac



Output Features

Backup Time Standard back up (15-30) min IT Load
Type of Wave Sine Wave, THD<3%
Rated power 6KVA/5.4KW

Warranty Information

Warranty 1 Year Warranty
Under the following conditions, the warranty would not be provided:
• UPS burning due to thunder, abnormal overload, insect entrance and others.
• If ambient temperature should not be maintained at 20 to 26 degrees Celsius with proper dehumidification. (24/7)
• If the product is placed in a dusty and damp place.
• In the absence of Generator connectivity Without proper battery charge, the warranty will be void.
• Battery swelling and overcharging due to the wrong system voltage setting of the UPS.

Description

MaxGreen MGO-W6KS 6KVA Standard Backup High-Frequency Online UPS

The MaxGreen MGO-W6KS 6KVA Standard Backup High-Frequency Online UPS is a powerful and professional-grade backup power solution designed for environments where uninterrupted and clean power is essential. With a rated capacity of 6KVA/5.4KW, it delivers robust performance for small to medium-sized businesses, IT setups, server rooms, medical equipment, and sensitive electronic systems. Its online double-conversion architecture ensures a stable, distortion-free sinewave output with zero transfer time, guaranteeing seamless power delivery during outages or voltage fluctuations.

Supporting a wide single-phase input voltage range of 120Vac to 288Vac and a frequency range of 45–65Hz, the MGO-W6KS ensures compatibility with varying power conditions. Its high power factor (≥0.99 for single-phase and >0.95 for three-phase) enhances energy efficiency and reduces electricity consumption. The UPS delivers a clean and stable 220Vac output, ensuring optimal protection for connected devices. Built with an IGBT rectifier, it provides superior performance, improved power quality, and long-term reliability.

This model includes an internal battery cabinet equipped with 16× 12V 9Ah sealed lead-acid batteries from Always/Star/Equivalent brands. The batteries offer dependable runtime of approximately 15–30 minutes depending on load and can recharge to 90% capacity in over 6 hours. Operating at a noise level of less than 55dB, the UPS is suitable for office, commercial, and controlled environments. With true online double-conversion and zero transfer time, it ensures that even momentary interruptions do not affect your equipment—making it ideal for mission-critical applications.

This product includes a 1-year warranty.
Warranty will not apply under the following conditions:
• Damage caused by thunder, overload, or insect intrusion
• Operation outside recommended 20–26°C temperature range
• Placement in dusty or damp environments
• Lack of generator connectivity or improper charging
• Battery swelling from incorrect voltage configuration

Price in Bangladesh: 93,000৳
Buy the MaxGreen MGO-W6KS 6KVA Standard Backup High-Frequency Online UPS from Tech Buy. Order online or visit your nearest showroom to get yours at the best price.
