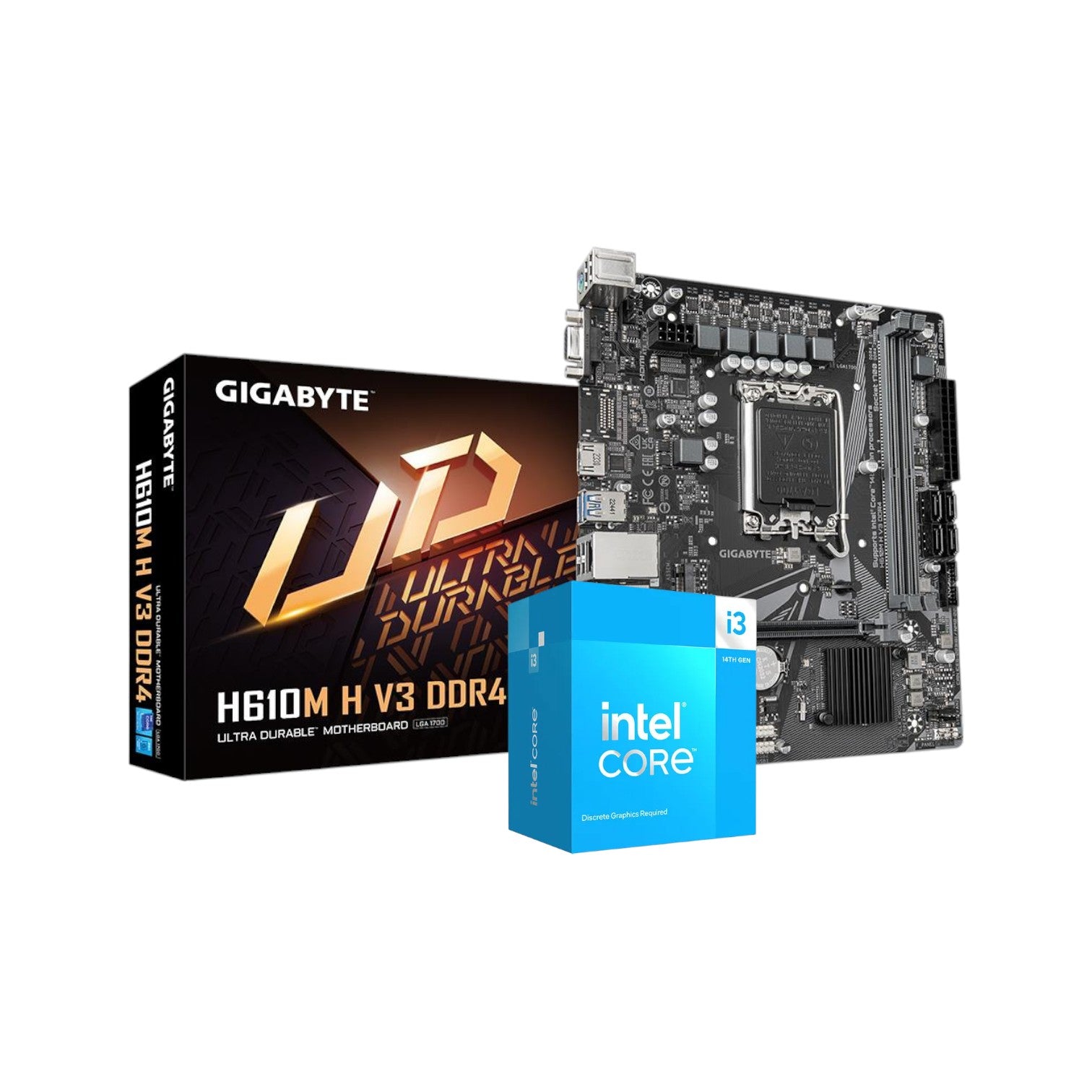

Intel Core i3 14100 14th Gen Raptor Lake Processor with GIGABYTE H610M H V3 DDR4 Micro ATX Motherboard

Brand: Intel
SKU: Core i3 14100 and H610M H V3 DDR4
Availability: In stock

Key Features

MAX Resolution: Max Resolution (HDMI)‡ 4096 x 2160 @ 60Hz, Max Resolution (DP)‡ 7680 x 4320 @ 60Hz
Max Resolution (eDP - Integrated Flat Panel)‡ 5120 x 3200 @ 120Hz.
Maximum Memory: Up to 64 GB (32 GB single DIMM capacity) of system memory

Tk 23,200
Tk 25,300
Tk 23,200
Subtotal: Tk 23,200

Specification

Processor

Model Intel Core i3 14100 14th Gen Raptor Lake Processor(Tray Box)
Base Frequency 3.5 GHz
Maximum Turbo Frequency 4.7 GHz
Cache 12 MB Intel Smart Cache
L2 Cache: 5 MB
Cores 4
Threads 8
Default TDP 110W
Maximum Size 192 GB
Maximum Speed 76.8 GB/s
Type Up to DDR5 4800 MT/s
Up to DDR4 3200 MT/s
Max Number of Channels 2
Processor Graphics Intel UHD Graphics 730
Max Dynamic Frequency 1.5 GHz
Max Resolution Max Resolution (HDMI)‡ 4096 x 2160 @ 60Hz
Max Resolution (DP)‡ 7680 x 4320 @ 60Hz
Max Resolution (eDP - Integrated Flat Panel)‡ 5120 x 3200 @ 120Hz
Manufacturing Warranty 3 Years warranty ( No warranty for Fan Or Cooler)

Motherboard

Model GIGABYTE H610M H V3 DDR4 Micro ATX Motherboard
Supported CPU LGA1700 socket: Support for 14th, 13th and 12th Generation Intel Core, Pentium Gold and Celeron Processors
L3 cache varies with CPU
Chipset Intel H610 Express Chipset
BIOS 1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor Micro ATX Form Factor; 22.3cm x 19.3cm
Audio Realtek Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
PCI CPU:
- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
Chipset:
- 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
Type DDR4
Slots 2 x DDR DIMM sockets
Supported Memory Support for DDR4 3200/3000/2933/2666/2400/2133 MT/s memory modules
2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Maximum Memory Up to 64 GB (32 GB single DIMM capacity) of system memory
Graphics Integrated Graphics Processor-Intel® HD Graphics support:
- 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.
** Support native HDMI 2.1 TMDS compatible ports.
HDMI 1 x HDMI 2.1 port
D-Sub (s) 1 x D-Sub port
USB (s) Chipset:
- 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
- 4 x USB 2.0/1.1 ports on the back panel
Chipset+USB 2.0 Hub:
- 4 x USB 2.0/1.1 ports available through the internal USB headers
LAN Port (s) Realtek GbE LAN chip (1 Gbps/100 Gbps/10 Mbps)
Supported Storage Chipset:
- 1 x M.2 connector (Socket 3, M key, type 2280/2260 PCIe 3.0 x4/x2 SSD
support)
- 4 x SATA 6Gb/s connectors
Audio 3 x audio jacks
Internal I/O Ports 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
2 x system fan headers
1 x M.2 Socket 3 connector
4 x SATA 6Gb/s connectors
1 x RGB LED strip header
1 x front panel header
1 x front panel audio header
1 x speaker header
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 / GC-TPM2.0 SPI V2 module only)
1 x serial port header
1 x Clear CMOS jumper
1 x chassis intrusion header
Back Panel Connectors
1 x PS/2 keyboard/mouse port
1 x D-Sub port
1 x HDMI port
2 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks
TPM (Trusted Platform Module ) 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 / GC-TPM2.0 SPI V2 module only)
Special Features Support for APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.


- @BIOS
- EasyTune
- Smart Backup
- System Information Viewer
Support for Q-Flash
Bundled Software Norton® Internet Security (OEM version)
LAN bandwidth management software
Manufacturing Warranty 3 Years

Description

Intel Core i3 14100 & GIGABYTE H610M H V3 DDR4 Essential PC Platform
This pairing of the Intel Core i3 14100 14th Gen Raptor Lake Processor and the GIGABYTE H610M H V3 DDR4 Micro ATX Motherboard provides a powerful and reliable foundation for improved productivity, gaming, and content creation. Built on the LGA 1700 socket, this platform delivers efficient performance and advanced features.
Intel Core i3 14100 14th Gen Raptor Lake Processor
The Intel Core i3 14100 is a 14th-generation desktop CPU based on Intel 7 technology, offering high power efficiency for the LGA 1700 socket.
Hybrid Core Design: Features an enhanced hybrid-core architecture with four 3.5 GHz Performance Cores and four low-voltage Efficiency Cores for seamless multitasking.
Performance: It comes with a 12MB cache and a Turbo Boost clock speed up to 4.7 GHz. The CPU is capable of overclocking to boost performance.
Intel Thread Director: This feature is built into the CPU cores and works with the operating system to dynamically and intelligently assign tasks to the appropriate core.
Memory & PCIe Support: Supports PCI Express 5.0 and up to 192GB of dual-channel DDR5 memory at 4800 MHz. It provides up to four PCIe 4.0 and sixteen PCIe 5.0 lanes, totaling 20 lanes for excellent data throughput.
Gaussian & Neural Accelerator 3.0 (GNA): This technology aids in noise reduction and improves background blurring during video conferencing.
Integrated Graphics: The integrated Intel UHD 730 Graphics supports high-quality images, capable of driving either one 8K monitor (7680 x 4320) or up to four 4K monitors (3840 x 2160).
GIGABYTE H610M H V3 DDR4 Micro ATX Motherboard
The GIGABYTE H610M H V3 DDR4 Micro ATX Motherboard is designed to deliver exceptional performance and reliability.
Processor Support: Features the LGA1700 socket for 14th, 13th, and 12th generation Intel Core, Pentium Gold, and Celeron processors.
Power & Memory: It has a robust 4+1+1 Hybrid Digital VRM design for stable power delivery. It supports dual-channel non-ECC unbuffered DDR4 memory with two DIMM slots, allowing for up to 64GB of RAM.
Connectivity & Storage: Includes a PCIe 4.0 x16 slot for enhanced graphics performance and a PCIe 3.0 x4 M.2 slot for high-speed NVMe SSDs. Connectivity options feature Realtek GbE LAN for reliable internet, and multiple display outputs like HDMI, DVI-D, and D-Sub ports.
Quality & Cooling: It incorporates anti-sulfur resistors and solid capacitors for durability, high-quality audio capacitors for an immersive sound experience, and Smart Fan 6 technology for efficient cooling.

Buy the original Intel Core i3 14100 14th Gen Raptor Lake Processor and GIGABYTE H610M H V3 DDR4 Micro ATX Motherboard from Tech Buy BD, the best shop in Bangladesh for processors and motherboards. We offer a large collection of the latest Intel Processors and GIGABYTE Motherboards for your Desktop PC. Order online or visit your nearest Tech Buy BD shop to get yours at the lowest price. The Intel Core i3 14100 14th Gen Processor and the GIGABYTE H610M H V3 DDR4 Motherboard each come with a 3-year warranty (Note: CPU warranty excludes the bundled fan or cooler).
