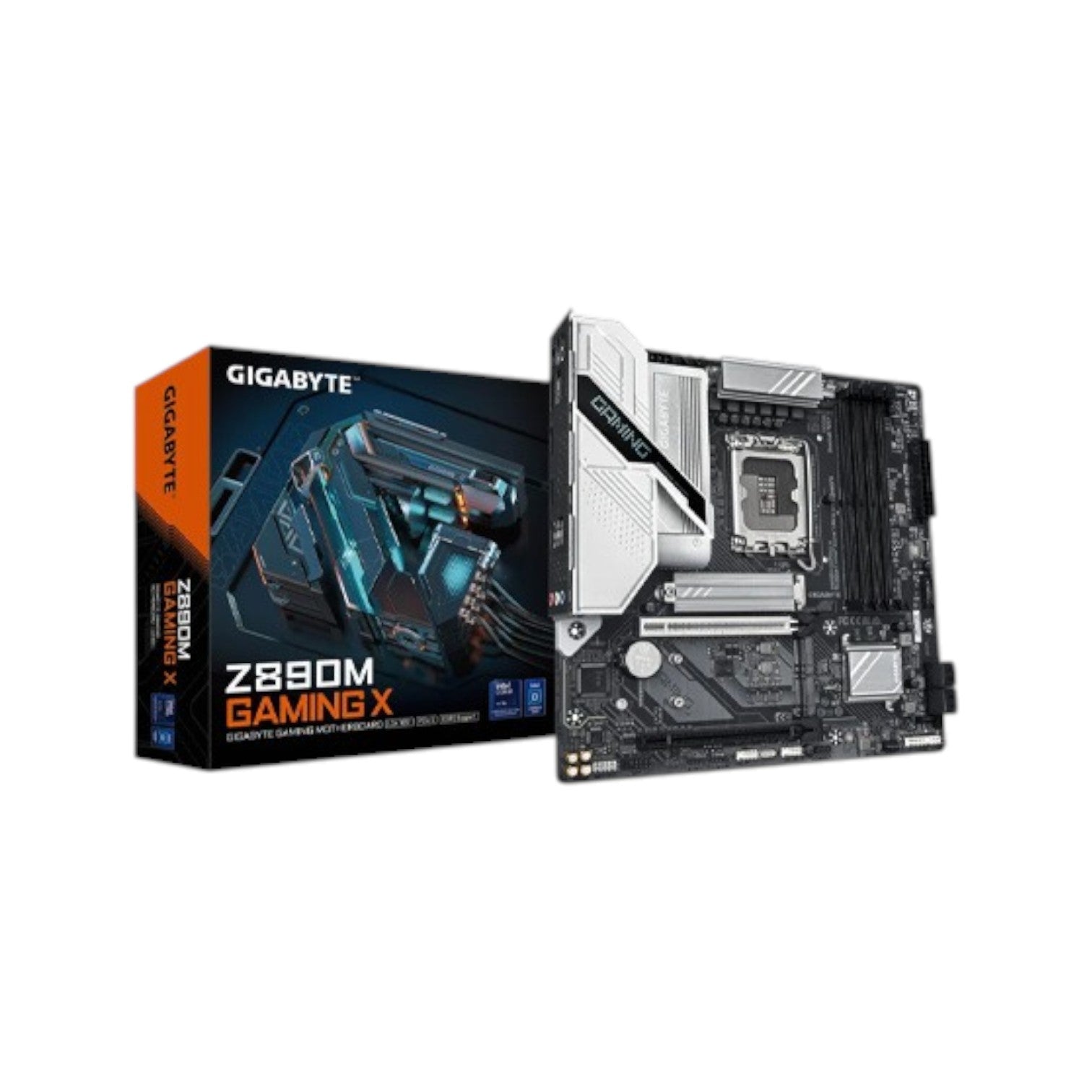

Gigabyte Z890M GAMING X LGA1851 Micro ATX Motherboard

Gigabyte Z890M GAMING X LGA1851 Micro ATX Motherboard

Brand: Gigabyte (Intel)
SKU: Z890M GAMING X
Availability: In stock

Key Features

Features: 3x M.2 slots, Realtek 2.5GbE LAN chip
Graphics Output: 1 x HDMI v2.1, 2x DisplayPort v2.1
Supported CPU: Intel Core Ultra Processors, LGA1851 socket
Supported RAM: 4x DDR5, Max 256GB, Supports Up to 9066(O.C)

Ask an expert
Tk 33,000
Tk 33,600
Tk 33,000
Subtotal: Tk 33,000
Description

Specification

Basic Information

Supported CPU LGA1851 socket: Support for Intel Core Ultra Processors
L3 cache varies with CPU
Chipset Intel Z890 Express Chipset
BIOS 1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor Micro ATX Form Factor; 24.4cm x 24.4cm
Audio Realtek Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel

Expansion Slots

PCI CPU:
- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.


Chipset:
- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
M.2 Socket CPU:
- 1 x M.2 connector (Socket 3, M key, type 2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support)(M2Q_SB)
- 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0x4/x2 SSD support) (M2N_SB)



Memory

Type DDR5
Slots 4 x DIMM
Supported Memory Support for DDR5 9066(O.C) / 8933(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 6200 / 6000 / 5800 / 5600MT/s memory modules.
4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity)of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Support CUDIMM memory module
Maximum Memory up to 256 GB (64 GB single DIMM capacity) of system memory



Graphics

Graphics Integrated Graphics Processor-Intel HD Graphics support:
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.
** Support for native HDMI 2.1 TMDS compatible ports.


- 2 x DisplayPorts, supporting a maximum resolution of 4096x2304@60 Hz
* Support for DisplayPort 2.1 version.



Connector & Ports

HDMI 1 x HDMI port
Display Port (s) 2 x DisplayPort
LAN Port (s) Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Supported Storage CPU:
- 1 x M.2 connector (Socket 3, M key, type 2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support)(M2Q_SB)
- 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0x4/x2 SSD support) (M2N_SB)
- 4 x SATA 6Gb/s connectors
RAID RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Audio 3 x audio jacks
1 x front panel audio header
Internal I/O Ports 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x CPU fan/water cooling pump header
1 x system fan header
1 x system fan/water cooling pump header
2 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
3 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header, with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
2 x Thunderbolt™ add-in card connectors
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
1 x serial port header
1 x Clear CMOS jumper
Back Panel Connectors
1 x PS/2 keyboard/mouse port
3 x USB 3.2 Gen 1 ports
2 x USB 2.0/1.1 ports
1 x HDMI port (Note)
2 x DisplayPorts (Note)
1 x RJ-45 port
3 x audio jacks
TPM (Trusted Platform Module ) 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)



Others

Special Features Support for GIGABYTE Control Center (GCC)
* Available applications in GCC may vary by motherboard model. Supported functionsof each application may also vary depending on motherboard specifications.


Support for Q-Flash
Support for Smart Backup
Bundled Software Norton Internet Security (OEM version)
LAN bandwidth management software

Warranty

Warranty 3 years

Description

Gigabyte Z890M GAMING X LGA1851 Micro ATX Motherboard

The Gigabyte Z890M GAMING X LGA1851 Micro ATX Motherboard is a powerhouse of performance and efficiency, engineered to support Intel Core Ultra processors with the latest LGA1851 socket. Powered by the Intel Z890 Express chipset, it combines advanced features, robust power design, and future-ready connectivity in a compact form factor, making it ideal for high-performance gaming and professional setups.

With support for DDR5 memory, the motherboard offers blazing-fast speeds from 6400MT/s up to 9066MT/s across four DIMM slots, supporting up to 256GB of system memory. It features a dual-channel architecture and is compatible with ECC and non-ECC un-buffered DIMMs, along with XMP profiles for easy overclocking. This ensures smooth multitasking, reduced latency, and exceptional system responsiveness even during the most demanding workloads.

For visuals, the Gigabyte Z890M GAMING X delivers superior integrated graphics capabilities with HDMI 2.1 and DisplayPort 2.1 outputs, supporting triple-display configurations at resolutions up to 4096x2304 @60Hz and HDCP 2.3 compliance. These features make it perfect for immersive gaming, creative tasks, and multi-monitor productivity.

Networking and audio are equally impressive, featuring a Realtek 2.5GbE LAN chip for ultra-fast and stable connectivity, and a Realtek High Definition Audio CODEC supporting 2/4/5.1/7.1-channel output for a rich, immersive sound experience.

For storage and expansion, the Gigabyte Z890M GAMING X includes one PCIe 5.0 x16 slot for high-end GPUs, one PCIe 4.0 x16 slot running at x4, and multiple M.2 connectors that support PCIe 4.0/5.0 NVMe SSDs for lightning-fast storage solutions. Additionally, it features four SATA 6Gb/s connectors that support RAID configurations, providing flexibility for high-capacity and secure data storage.

The motherboard offers a wide array of internal and external I/O options, including USB 3.2 Gen 1, USB Type-C, multiple fan headers for optimal cooling, addressable RGB lighting headers, and Thunderbolt add-in card support. Its intuitive AMI UEFI BIOS interface with Q-Flash functionality makes configuration and updates simple and efficient.

With a compact Micro ATX form factor (24.4cm x 24.4cm), the Gigabyte Z890M GAMING X offers exceptional performance without taking up much space, making it ideal for small yet powerful gaming rigs or professional workstations.

Combining premium build quality, cutting-edge performance, and extensive customization options, the Gigabyte Z890M GAMING X LGA1851 Micro ATX Motherboard is the perfect foundation for gamers and professionals who demand power, efficiency, and reliability in every task.

Buy the Gigabyte Z890M GAMING X LGA1851 Micro ATX Motherboard from Tech Buy BD for authentic products and the best prices in Bangladesh.
