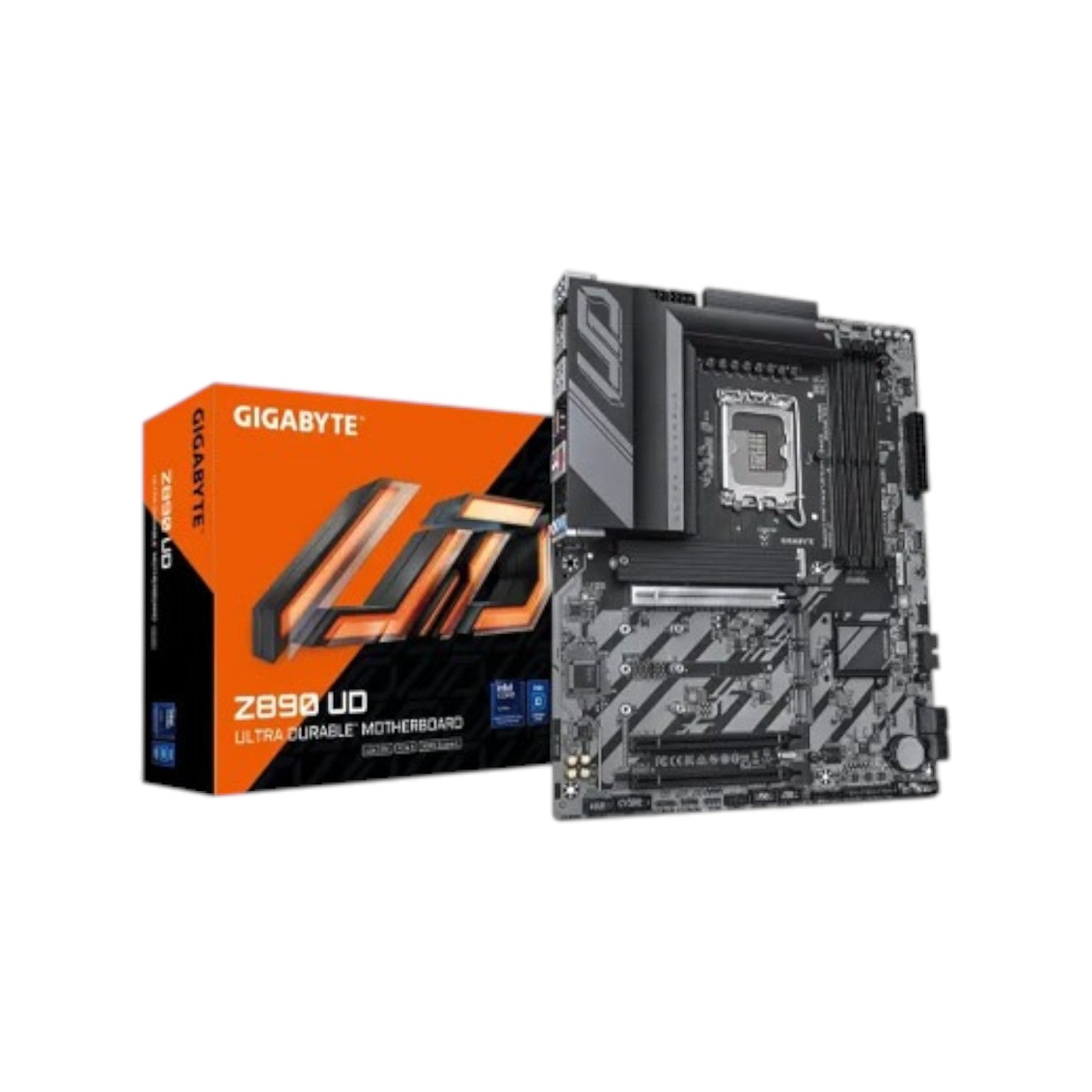

Gigabyte Z890 UD LGA 1851 ATX Motherboard

Gigabyte Z890 UD LGA 1851 ATX Motherboard

Brand: Gigabyte (Intel)
SKU: Z890 UD
Availability: In stock

Key Features

Graphics Output: 1x USB4 USB Type-C, 1x DisplayPort
Supported RAM: 4x DDR5, Max 256GB, Supports Up to 9200 (O.C)
Supported CPU: Intel Core Ultra Processors (Series 2), LGA1851 socket
Features: 4x M.2 slots, 2.5GbE LAN, USB4 Type-C with DP-Alt, DisplayPort

Ask an expert
Tk 32,000
Tk 32,600
Tk 32,000
Subtotal: Tk 32,000
Description

Specification

Basic Information

Supported CPU LGA1851 socket: Support for Intel Core Ultra Processors
L3 cache varies with CPU
Chipset Intel Z890 Express Chipset
BIOS 1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor ATX Form Factor; 30.5cm x 24.4cm
Audio Realtek Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel

Expansion Slots

PCI CPU:
- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
Chipset:
- 2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4_1, PCIEX4_2)
M.2 Socket CPU:
- 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0x4/x2 SSD support) (M2A_CPU)
- 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU)
Chipset:
- 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB)
- 1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0x4/x2 SSD support) (M2M_SB)



Memory

Type DDR5
Slots 4 x DIMM
Supported Memory Support for DDR5 9200(O.C) / 9066(O.C) / 8933(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 6200 / 6000 / 5800 / 5600MT/s memory modules.
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Support CUDIMM memory module
Maximum Memory up to 256 GB (64 GB single DIMM capacity) of system memory



Graphics

Graphics Integrated Graphics Processor-Intel® HD Graphics support:
- 1 x USB4® USB Type-C® port, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@144 Hz
* Support for DisplayPort 2.1 version
- 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz
* Support for DisplayPort 2.1 version



Connector & Ports

Display Port (s) 1 x DisplayPort
LAN Port (s) Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Supported Storage CPU:
- 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0x4/x2 SSD support) (M2A_CPU)
- 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU)
Chipset:
- 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB)
- 1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0x4/x2 SSD support) (M2M_SB)
- 4 x SATA 6Gb/s connectors
RAID RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Audio 3 x audio jacks
Internal I/O Ports 1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
1 x CPU fan header
1 x CPU fan/water cooling pump header
2 x system fan headers
2 x system fan/water cooling pump headers
3 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
4 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header, with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
2 x Thunderbolt™ add-in card connectors
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/ GC-TPM2.0 SPI V2 module only)
1 x serial port header
1 x power button
1 x reset button
1 x Q-Flash Plus button
1 x reset jumper
1 x Clear CMOS jumper
4 x USB 2.0/1.1 ports
1 x PS/2 keyboard/mouse port
1 x DisplayPort (Note)
4 x USB 3.2 Gen 1 ports
1 x USB4 USB Type-C port (DisplayPort (Note))
1 x USB 3.2 Gen 2 Type-A port (red)
1 x RJ-45 port
3 x audio jacks
TPM (Trusted Platform Module ) 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/ GC-TPM2.0 SPI V2 module only)



Others

Special Features Support for GIGABYTE Control Center (GCC)
* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
Support for Q-Flash
Support for Q-Flash Plus
Support for Smart Backup
Bundled Software Norton Internet Security (OEM version)
LAN bandwidth management software

Warranty

Warranty 3 years

Description

Gigabyte Z890 UD LGA 1851 ATX Motherboard

The Gigabyte Z890 UD LGA 1851 ATX Motherboard is a next-generation performance platform designed to harness the full potential of Intel Core Ultra processors. Built on the Intel Z890 chipset, it delivers exceptional power, speed, and reliability, making it ideal for gamers, creators, and professionals. Its durable 12+1+2 phase digital VRM architecture ensures stable and efficient power delivery for high-end computing and overclocking, while the Ultra Durable design guarantees long-lasting performance under demanding conditions.

This motherboard supports up to 256GB of DDR5 memory across four DIMM slots, with speeds reaching an impressive 9200MT/s (OC). With support for XMP profiles and ECC un-buffered DIMMs, users can enjoy enhanced system stability, faster performance, and superior multitasking capabilities. For storage, the Gigabyte Z890 UD features four M.2 slots—one with PCIe 5.0 x4 support—and four SATA 6Gb/s ports, providing lightning-fast storage and flexible RAID configurations.

Expansion is seamless with PCIe 5.0 and PCIe 4.0 slots designed for high-performance GPUs, NVMe SSDs, and other add-on cards. Thermal management is handled by advanced VRM Thermal Armor and M.2 Thermal Guards, ensuring optimal cooling and sustained performance. AI Perfdrive technology optimizes system performance automatically through intelligent BIOS presets, while Q-Flash Auto Scan simplifies BIOS updates. The BIOS also includes a user-friendly interface with multi-theme customization and AIO fan control for precision cooling.

Networking and connectivity are top-tier, featuring a 2.5GbE LAN port for ultra-fast, stable networking and USB4 Type-C with DisplayPort Alt Mode for next-generation data and video transmission. Additional USB 3.2 ports provide fast and flexible device connectivity. Integrated graphics support DisplayPort 2.1 and USB4 outputs with resolutions up to 3840x2160 at 144Hz, offering sharp and fluid visuals.

For audio, the Realtek High Definition Audio system supports 7.1-channel surround sound, delivering rich, immersive soundscapes customizable via audio software. The motherboard also includes hardware monitoring tools for voltage, temperature, and fan speed to ensure optimal system health. Enhanced with RGB lighting control, PCIe EZ-Latch for tool-free GPU installation, Thunderbolt add-in card support, and Norton Internet Security software, it offers both power and convenience in one complete package.

Combining performance, efficiency, and flexibility, the Gigabyte Z890 UD LGA 1851 ATX Motherboard is the perfect choice for anyone building a cutting-edge, future-ready PC.

Buy the Gigabyte Z890 UD LGA 1851 ATX Motherboard from Tech Buy BD for authentic products and the best prices in Bangladesh.
