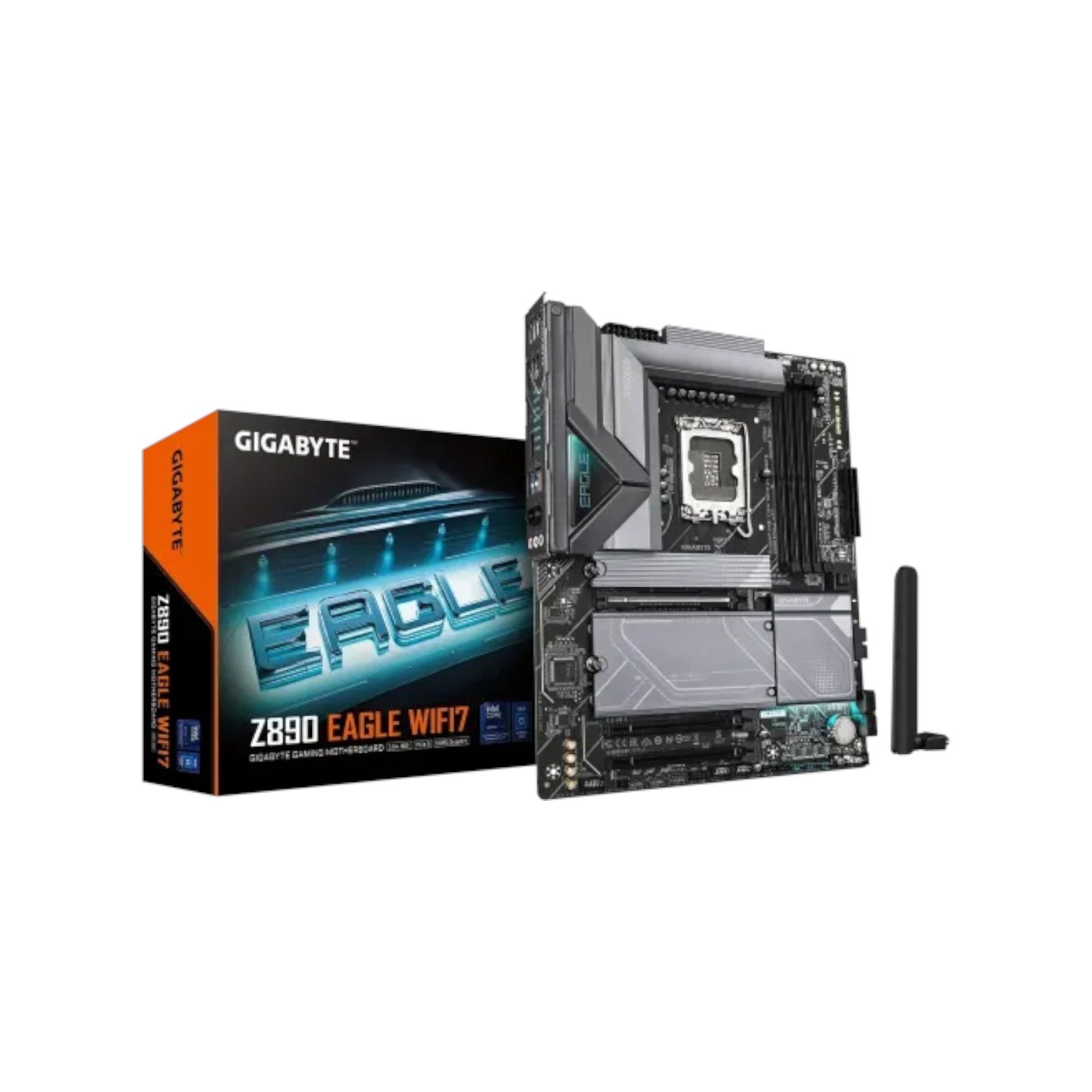

Gigabyte Z890 EAGLE WIFI7 LGA 1851 ATX Motherboard

Gigabyte Z890 EAGLE WIFI7 LGA 1851 ATX Motherboard

Brand: Gigabyte (Intel)
SKU: Z890 EAGLE WIFI7
Availability: In stock

Key Features

Features: 4x M.2, Intel Wi-Fi 7, Bluetooth 5.4
Supported RAM: 4x DDR5, Max 256GB,Supports Up to 9200(O.C)
Supported CPU: Intel Core Ultra Processors (Series 2), LGA 1851
Graphics Output: 1x DisplayPort, 1 x (USB4 Type-C port Supports DisplayPort),

Ask an expert
Tk 37,000
Tk 37,800
Tk 37,000
Subtotal: Tk 37,000
Description

Specification

Basic Information

Supported CPU Intel Core Ultra Processors(Series 2)
Chipset Intel Z890 Chipset
BIOS 1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor ATX Form Factor; 30.5cm x 24.4cm
Audio Realtek® Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

Expansion Slots

PCI CPU:
- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.

Chipset:
- 2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4_1/2)
M.2 Socket CPU:
- 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU)
- 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU)
Chipset:
- 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB)
- 1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB)

Memory

Type DDR5
Slots 4 x DIMM
Supported Memory Support for DDR5 9200(O.C) / 9066(O.C) / 8933(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 6200 / 6000 / 5800 / 5600MT/s memory modules.
Maximum Memory 256GB (64 GB single DIMM capacity) of system memory



Graphics

Graphics Integrated Graphics Processor-Intel® HD Graphics support:
- 1 x USB4® USB Type-C® port, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@144 Hz
* Support for DisplayPort 2.1 version


- 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz
* Support for DisplayPort 2.1 version

(Graphics specifications may vary depending on CPU support.)



Connector & Ports

Display Port (s) - 1 x USB4® USB Type-C® port, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@144 Hz
* Support for DisplayPort 2.1 version

- 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz
* Support for DisplayPort 2.1 version
LAN Port (s) Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module MediaTek Wi-Fi 7 MT7925 (PCB rev. 1.0)
- 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
- BLUETOOTH 5.4
- Support for 11be 160MHz wireless standard
Realtek® Wi-Fi 7 RTL8922AE (PCB rev. 1.1)
- 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
- BLUETOOTH 5.4
- Support for 11be 160MHz wireless standard
Supported Storage CPU:
- 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU)
- 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU)
Chipset:
- 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB)
- 1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB)
- 4 x SATA 6Gb/s connectors
RAID RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Audio 1 x front panel audio header
3 x audio jacks
Internal I/O Ports 1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
1 x CPU fan header
1 x CPU fan/water cooling pump header
3 x system fan headers
1 x system fan/water cooling pump header
3 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
4 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
2 x Thunderbolt™ add-in card connectors
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
1 x power button
1 x Q-Flash Plus button
1 x reset button
1 x reset jumper
1 x Clear CMOS jumper

Back Panel Connectors
1 x USB4® USB Type-C® port (DisplayPort (Note))
2 x USB 3.2 Gen 2 Type-A ports (red)
3 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x DisplayPort (Note)
2 x antenna connectors (2T2R)
1 x RJ-45 port
3 x audio jacks
TPM (Trusted Platform Module ) 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)



Others

Special Features Support for GIGABYTE Control Center (GCC)
* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

Support for Q-Flash
Support for Q-Flash Plus
Support for Smart Backup
Bundled Software Norton® Internet Security (OEM version)
LAN bandwidth management software

Warranty

Warranty 3 Year Warranty

Description

Gigabyte Z890 EAGLE WIFI7 LGA 1851 ATX Motherboard

The Gigabyte Z890 EAGLE WIFI7 LGA 1851 ATX Motherboard is a next-generation powerhouse engineered to harness the full potential of Intel’s latest Arrow Lake-S processors. Built on the Intel Z890 chipset, it offers unparalleled performance, stability, and connectivity for gamers, creators, and professionals. Designed with the new LGA1851 socket, this motherboard ensures compatibility with future-ready CPU technologies while delivering outstanding efficiency and speed for all workloads.

Supporting DDR5 memory, the Gigabyte Z890 EAGLE provides ultra-fast data transfer rates and seamless multitasking capabilities, making it ideal for gaming, rendering, and high-performance computing. It accommodates four DIMM slots for up to 256GB of DDR5 RAM, ensuring superior responsiveness and efficiency in every task. For storage, it features four M.2 slots, including one PCIe 5.0 x4 slot, enabling ultra-fast NVMe SSD performance for quicker boot times and blazing-fast data access.

Connectivity is a standout feature, with built-in Wi-Fi 7 and 2.5GbE LAN ensuring high-speed, low-latency networking for smooth online gameplay, video streaming, and large file transfers. The motherboard also includes USB4 Type-C with DisplayPort Alt Mode and a dedicated DisplayPort output, offering flexible options for connecting external monitors and high-bandwidth devices.

Thermal management is enhanced with GIGABYTE’s advanced VRM Thermal Armor and M.2 Thermal Guard, which efficiently dissipate heat to maintain peak system performance and durability under heavy loads. Audio performance is equally premium, featuring an ALC1220 codec paired with WIMA audiophile-grade capacitors for immersive, crystal-clear sound that enhances gaming and entertainment experiences.

DIY-friendly innovations such as EZ-Latch Plus and EZ-Latch Click simplify the installation of GPUs and M.2 drives, providing a tool-free setup experience perfect for both beginners and enthusiasts. The Gigabyte Z890 EAGLE WIFI7 also includes RGB lighting headers, fan control options, and Smart Fan 6 technology for customizable cooling and aesthetics.

Combining cutting-edge design, advanced connectivity, and superior thermal efficiency, the Gigabyte Z890 EAGLE WIFI7 LGA 1851 ATX Motherboard sets a new standard for performance and reliability. Whether for gaming, content creation, or professional work, it delivers the speed, stability, and expandability needed for a future-ready PC build.

Buy the Gigabyte Z890 EAGLE WIFI7 LGA 1851 ATX Motherboard from Tech Buy BD for authentic products and the best prices in Bangladesh.
