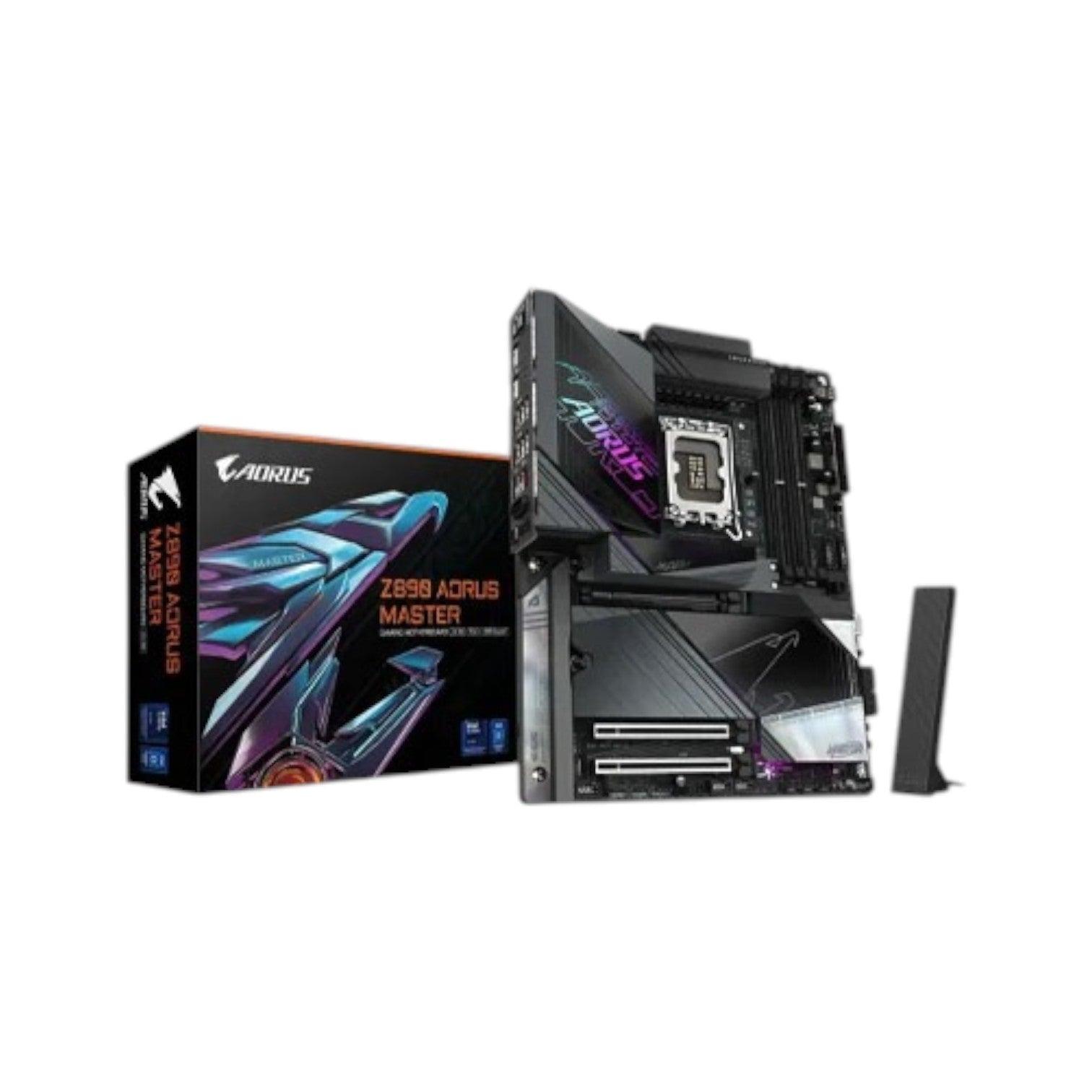

Gigabyte Z890 AORUS MASTER WiFi7 LGA 1851 ATX Motherboard

Gigabyte Z890 AORUS MASTER WiFi7 LGA 1851 ATX Motherboard

Brand: Gigabyte (Intel)
SKU: Z890 AORUS MASTER
Availability: In stock

Key Features

Features: 5x M.2, Intel Wi-Fi 7, Bluetooth 5.4
Supported CPU: Intel Core Ultra Processors (Series 2), LGA 1851
Supported RAM: 4x DDR5, Max 256GB,Supports Up to 9500(O.C)
Graphics Output: 1x HDMI, 1x DisplayPort, 2 x (USB4 Type-C port Supports DisplayPort),

Ask an expert
Tk 81,500
Tk 83,000
Tk 81,500
Subtotal: Tk 81,500
Description

Specification

Basic Information

Supported CPU Intel Core Ultra Processors(Series 2)
Chipset Intel Z890 Chipset
BIOS 1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor ATX Form Factor; 30.5cm x 24.4cm
Audio Realtek® ALC1220 CODEC
* The front panel line out jack supports DSD audio.


ESS ES9118 DAC chip
Support for DTS:X® Ultra
High Definition Audio
2/4/5.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 5.1-channel audio, access the audio software for audio settings.
Support for S/PDIF Out

Expansion Slots

PCI CPU:
- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
* The PCIEX16 slot shares bandwidth with the M2D_CPU connector. The PCIEX16 slot operates at up to x8 mode when a device is installed in the M2D_CPU connector.


Chipset:
- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x1 (PCIEX1)
M.2 Socket CPU:
- 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU)
- 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU)
- 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 5.0 x4/x2 SSD support) (M2D_CPU)
Chipset:
- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
- 1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB)

Memory

Type DDR5
Slots 4 x DIMM
Supported Memory Support for DDR5 9500(O.C) / 9466(O.C) / 9333(O.C) / 9200(O.C)/ 9066(O.C) / 8933(O.C) /8800(O.C) /8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 6200 / 6000 / 5800 / 5600MT/s memory modules.

Support for Extreme Memory Profile (XMP) memory modules
Support CUDIMM memory module
Maximum Memory 256GB (64 GB single DIMM capacity) of system memory



Graphics

Graphics Integrated Graphics Processor-Intel® HD Graphics support:
- 2 x Intel® Thunderbolt™ 4 connectors (USB4® USB Type-C® ports), supporting DisplayPort and Thunderbolt™ video outputs
When a Thunderbolt™ monitor is installed, the maximum resolution supported is 5120x2880@60 Hz with 24 bpp (single display output).
When a USB4® USB Type-C® monitor is installed, the maximum resolution supported is 3840x2160@240 Hz (single display output).
* Because of the limited I/O resources of the PC architecture, the number of Thunderbolt™ devices that can be used is dependent on the number of the PCI Express devices being installed. (Refer to Chapter 2-6, "Back Panel Connectors," for more information.)
* Support for DisplayPort 2.1 version and HDCP 2.3


- 1 x front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz
* Support for HDMI 1.4 version.

(Graphics specifications may vary depending on CPU support.)



Connector & Ports

HDMI 1 x front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz
Display Port (s) 2 x Intel® Thunderbolt™ 4 connectors (USB4® USB Type-C® ports), supporting DisplayPort and Thunderbolt™ video outputs
When a Thunderbolt™ monitor is installed, the maximum resolution supported is 5120x2880@60 Hz with 24 bpp (single display output).
When a USB4® USB Type-C® monitor is installed, the maximum resolution supported is 3840x2160@240 Hz (single display output).
LAN Port (s) Marvell® AQtion AQC113C 10GbE LAN chip
(10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module Intel® Wi-Fi 7 BE200NGW
- 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
- BLUETOOTH 5.4
- Support for 11be 320MHz wireless standard
(Actual data rate may vary depending on environment and equipment.)
* Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10.)
** Wi-Fi 7 channels on 6 GHz band availability depends on individual country's regulations.
Supported Storage CPU:
- 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU)
- 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU)
Chipset:
- 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB)
- 1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB)
- 4 x SATA 6Gb/s connectors
RAID RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Audio 1 x front panel audio header
2 x audio jacks
Internal I/O Ports 1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
1 x CPU fan header
1 x CPU fan/water cooling pump header
4 x system fan headers
4 x system fan/water cooling pump headers
4 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
5 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header, with USB 3.2 Gen 2x2 support
2 x USB 3.2 Gen 1 headers
2 x USB 2.0/1.1 headers
1 x noise detection header
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
1 x HDMI port (Note)
1 x power button
1 x reset button
1 x reset jumper
1 x Clear CMOS jumper
2 x temperature sensor headers
Voltage Measurement Points
TPM (Trusted Platform Module ) 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)



Others

Special Features Support for GIGABYTE Control Center (GCC)
* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
Support for Q-Flash
Support for Q-Flash Plus
Support for Smart Backup
Bundled Software Norton® Internet Security (OEM version)
LAN bandwidth management software

Warranty

Warranty 3 Year Warranty

Description

Gigabyte Z890 AORUS MASTER WiFi7 LGA 1851 ATX Motherboard

The Gigabyte Z890 AORUS MASTER WiFi7 LGA 1851 ATX Motherboard is built to deliver exceptional performance and cutting-edge connectivity for enthusiasts, gamers, and professionals. Featuring the latest LGA1851 socket for Intel Arrow Lake-S processors, it supports DDR5 RAM for ultra-fast data transfer and outstanding system responsiveness. With five M.2 slots, including two PCIe 5.0 x4 slots, it ensures blazing storage speeds, while Wi-Fi 7 and dual 10GbE LAN provide seamless high-speed networking for low-latency online gaming and data-intensive tasks. Its advanced cooling system, including VRM Thermal Armor Advanced and M.2 Thermal Guard XL, keeps the system cool under heavy loads, maintaining optimal performance and stability. For connectivity, it offers dual USB4 Type-C ports with DP-Alt mode, DisplayPort support, and a versatile array of USB interfaces for multiple devices. High-resolution audio is delivered through the integrated ALC1220 and ESS SABRE Hi-Fi 9118 DAC, ensuring crystal-clear, immersive sound. With user-friendly EZ-Latch Plus and EZ-Latch Click features for quick, tool-less PCIe and M.2 installation, it combines power, precision, and convenience in one platform. Designed for uncompromising performance, the Gigabyte Z890 AORUS MASTER WiFi7 LGA 1851 ATX Motherboard is the ultimate choice for next-generation gaming and professional builds. Buy the Gigabyte Z890 AORUS MASTER WiFi7 LGA 1851 ATX Motherboard from Tech Buy BD for authentic products and the best prices in Bangladesh.
