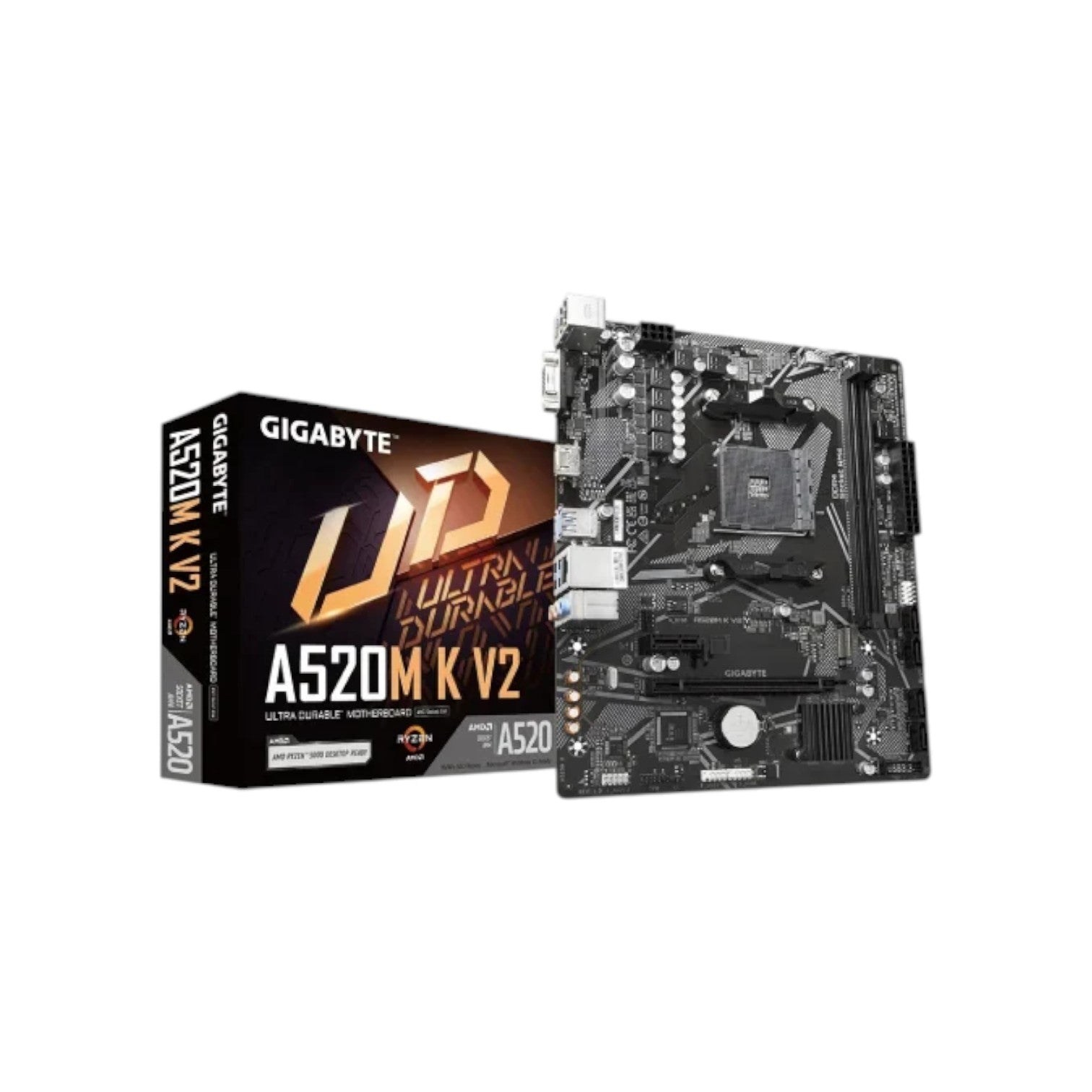

GIGABYTE A520M K V2 AM4 Micro ATX Motherboard (MGBAMD5635)

Tk 8,200; ~~Tk 8,500~~; Tk 8,200
Unit price: per

Brand: Gigabyte (AMD)

SKU: A520M K V2

Availability: In stock

Key Features

Graphics Output: 1 x HDMI, 1x D-Sub
Features: 1 x M.2 Slot, Realtek GbE LAN
Supported RAM: 2 x DDR4, up to 64GB, 5100(O.C.)
Supported CPU: Ryzen 5000/ 5000G/4000G/ 3000/3000G Series CPU for AM4 Socket

Ask an expert

Subtotal: Tk 8,200

Quantity:

GIGABYTE A520M K V2 AM4 Micro ATX Motherboard (MGBAMD5635)

~~Tk 8,500~~ Tk 8,200

Quantity:

GIGABYTE A520M K V2 AM4 Micro ATX Motherboard (MGBAMD5635)

~~Tk 8,500~~ Tk 8,200

Description

Description

Specification

Basic Information

Supported CPU	AMD Socket AM4, support for: AMD Ryzen™ 5000 G-Series Processors/ AMD Ryzen™ 5000 Series Processors/ AMD Ryzen™ 4000 G-Series Processors/ AMD Ryzen™ 3000 and Ryzen™ 3000 G-Series Processors
Chipset	AMD A520
BIOS	1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor	Micro ATX Form Factor; 23.3cm x 19.8cm
Audio	Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel

Expansion Slots

PCI	CPU: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16 Chipset: 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
M.2 Socket	1 x M.2 connector

Memory

Type	DDR4
Slots	2 x DIMM
Supported Memory	Support for DDR4 5100(O.C.) / 4800(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Maximum Memory	64 GB (32 GB single DIMM capacity)

Graphics

Graphics	Integrated Graphics Processor: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz Support for HDMI 2.0 version and HDCP 2.2.
Max Shared Memory	16 GB

Connector & Ports

HDMI	1 x HDMI port
USB (s)	CPU: 4 x USB 3.2 Gen 1 ports on the back panel Chipset: 2 x USB 3.2 Gen 1 ports available through the internal USB header 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
LAN Port (s)	Realtek GbE LAN chip (1 Gbps/ 100 Mbps)
Supported Storage	CPU: 1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 3.0 x4/x2 SSD support) Chipset: 4 x SATA 6Gb/s connectors
RAID	Support for RAID 0, RAID 1, and RAID 10
Internal I/O Ports	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x system fan header 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 1 x speaker header 1 x Clear CMOS jumper 1 x chassis intrusion header
TPM (Trusted Platform Module )	1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)

Others

Special Features	Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS EasyTune Smart Backup System Information Viewer Support for Q-Flash Support for Xpress Install
Bundled Software	Norton Internet Security (OEM version) LAN bandwidth management software

Warranty

03-Year Warranty

Description

GIGABYTE A520M K V2 AM4 Micro ATX Motherboard

The GIGABYTE A520M K V2 AM4 Micro ATX Motherboard is a compact yet powerful solution designed for AMD systems, offering excellent stability, efficiency, and performance. Built around the AMD A520 chipset, it supports a wide range of AMD Ryzen processors on the AM4 socket, ensuring smooth multitasking and dependable computing for both home and office setups. Its Micro ATX form factor makes it ideal for small to mid-sized PC builds while providing flexible expansion options through multiple PCIe slots and high-speed storage with M.2 NVMe support. The motherboard’s advanced power delivery system and efficient thermal design maintain stable operation under demanding workloads, while the user-friendly BIOS simplifies customization and tuning. Offering a balance of reliability and functionality, the GIGABYTE A520M K V2 is an excellent choice for users looking to build a cost-effective gaming PC or a productivity-focused workstation.

Buy the GIGABYTE A520M K V2 AM4 Micro ATX Motherboard from Tech Buy BD for authentic products and the best prices in Bangladesh.
