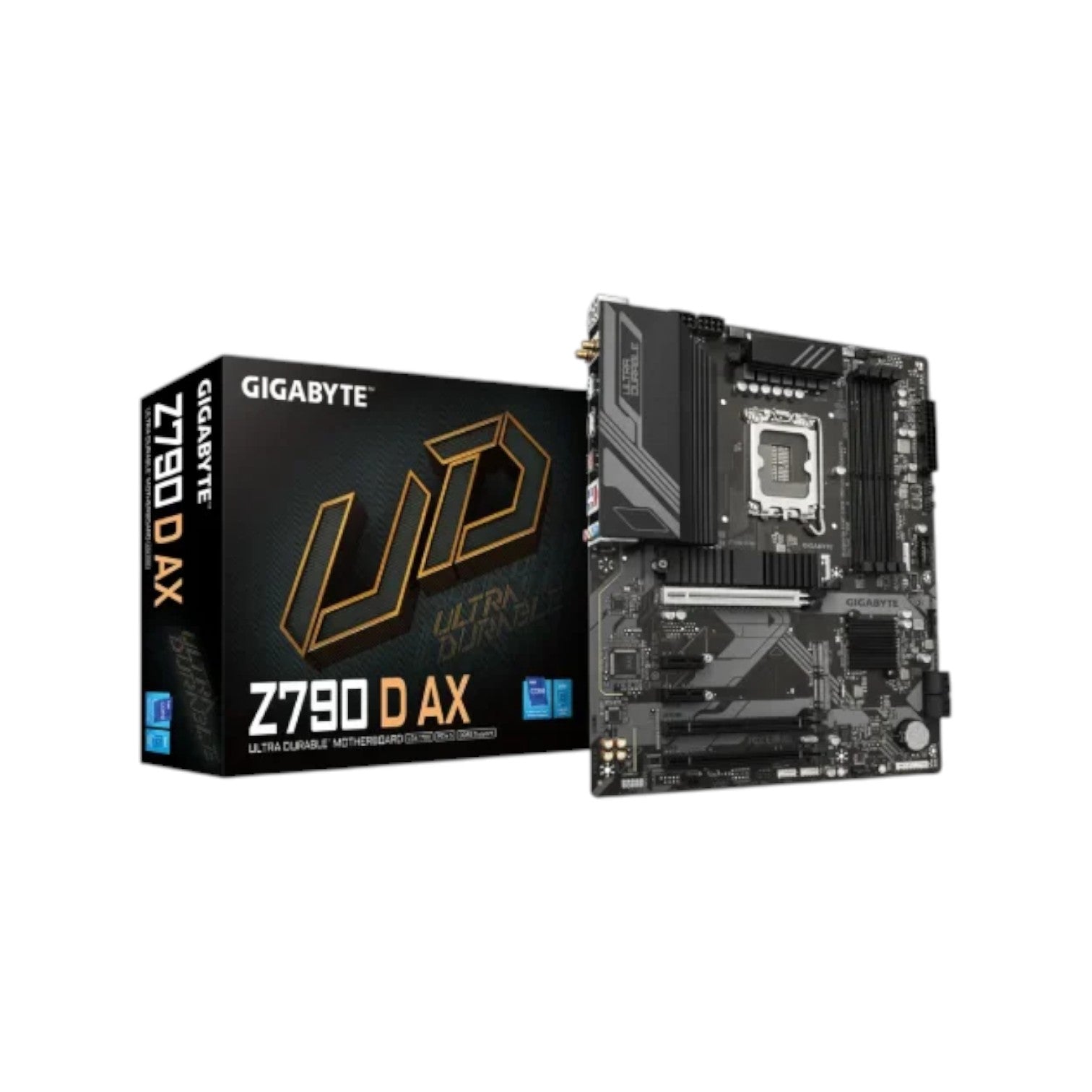

GIGABYTE Z790 D AX DDR5 ATX Motherboard

GIGABYTE Z790 D AX DDR5 ATX Motherboard

Brand: Gigabyte (Intel)
SKU: Z790 D AX
Availability: In stock

Key Features

Graphics Output: 1 x HDMI, 1 x DisplayPort
Features: 2.5GbE LAN, WiFi-6E, Bluetooth 5.3
Supported RAM: 4 x DDR5 DIMMs 7600(OC), up to 256 GB
Supported CPU: 14th Gen, 13th Gen & 12th Gen Processors (LGA1700)

Ask an expert
Tk 29,500
Tk 30,000
Tk 29,500
Subtotal: Tk 29,500
Description

Specification

Basic Information

Supported CPU LGA1700 socket: Support for the 14th, 13th and 12th Generation Intel Core, Pentium Gold and Celeron Processors
L3 cache varies with CPU
Chipset Intel Z790 Express Chipset
BIOS 1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor ATX Form Factor; 30.5cm x 24.4cm
Audio Realtek Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
Support for S/PDIF Out

Expansion Slots

PCI CPU:
1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
Chipset:
1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x1 (PCIEX1_4)
2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_2, PCIEX1_3)
Support for AMD CrossFire technology (PCIEX16 and PCIEX4)



Memory

Type DDR5
Slots 4 x DIMM sockets
Supported Memory 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 memory modules
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Maximum Memory 128GB (32 GB single DIMM capacity)



Graphics

Graphics Integrated Graphics Processor-Intel HD Graphics support:
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.0 version and HDCP 2.3.
1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
* Support for DisplayPort 1.2 version and HDCP 2.3



Connector & Ports

HDMI 1 x HDMI
Display Port (s) 1 x DisplayPort
USB (s) Chipset:
1 x USB Type-C port on the back panel, with USB 3.2 Gen 2x2 support
1 x USB Type-C port with USB 3.2 Gen 1 support, available through the internal USB header
1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
Chipset+2 USB 2.0 Hubs:
8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
LAN Port (s) Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module AMD Wi-Fi 6E RZ616 (MT7922A22M)
WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
BLUETOOTH 5.2
Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
Supported Storage CPU:
1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
2 x M.2 connectors (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB, M2P_SB)
6 x SATA 6Gb/s connectors
RAID RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Audio 3 x audio jacks
Internal I/O Ports 1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
1 x CPU fan header
1 x water cooling CPU fan header
3 x system fan headers
1 x system fan/water cooling pump header
2 x addressable LED strip headers
2 x RGB LED strip headers
3 x M.2 Socket 3 connectors
6 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB Type-C header, with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x serial port header
2 x Thunderbolt add-in card connectors
1 x reset button
1 x Q-Flash Plus button
1 x reset jumper
1 x Clear CMOS jumper
TPM (Trusted Platform Module ) 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)



Others

Special Features Support for GIGABYTE Control Center (GCC)
* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
Support for Q-Flash
Support for Q-Flash Plus
Support for Smart Backup
Bundled Software Norton Internet Security (OEM version)
LAN bandwidth management software

Warranty

Warranty 3 years

Description

GIGABYTE Z790 D AX DDR5 ATX Motherboard

The GIGABYTE Z790 D AX DDR5 ATX Motherboard is a premium, high-performance platform built for gamers, professionals, and PC enthusiasts who demand top-tier speed, stability, and expandability. Designed to support Intel’s 14th, 13th, and 12th Generation Core processors with the LGA1700 socket, it ensures exceptional compatibility and next-generation computing power. With full DDR5 memory support of up to 192GB across four dual-channel DIMM slots, this motherboard delivers ultra-fast data access and improved multitasking, making it perfect for gaming, content creation, and demanding workloads.

Powered by GIGABYTE’s renowned Ultra Durable architecture, the Z790 D AX offers a robust digital power design that ensures stable and consistent power delivery under heavy loads. This makes it an ideal choice for overclockers and performance-focused users who need reliable operation during intense processing tasks.

For expansion, the motherboard features a PCIe 5.0 x16 slot for future-ready GPUs, guaranteeing maximum bandwidth and performance. It also includes multiple M.2 slots with integrated thermal guards, providing high-speed NVMe SSD support while maintaining optimal temperatures for sustained peak performance.

Connectivity is one of its major strengths — equipped with Wi-Fi 6E and 2.5GbE LAN, it offers ultra-fast and reliable wired and wireless networking options for seamless gaming, streaming, and professional use. A wide range of USB ports, including high-speed USB interfaces, ensures compatibility with all modern peripherals and accessories.

The advanced Smart Fan 6 cooling system intelligently controls system temperatures with multiple sensors and hybrid fan headers, featuring a FAN STOP function for quiet operation. The Q-Flash Plus feature allows users to update the BIOS effortlessly without installing a CPU, RAM, or GPU, making maintenance and upgrades quick and simple.

Combining cutting-edge technology, efficient power delivery, and user-friendly design, the GIGABYTE Z790 D AX DDR5 ATX Motherboard offers everything needed for building a future-ready high-performance PC. It provides the perfect balance of speed, durability, and advanced connectivity for any modern setup.

Buy the GIGABYTE Z790 D AX DDR5 ATX Motherboard from Tech Buy BD for authentic products and the best prices in Bangladesh.
