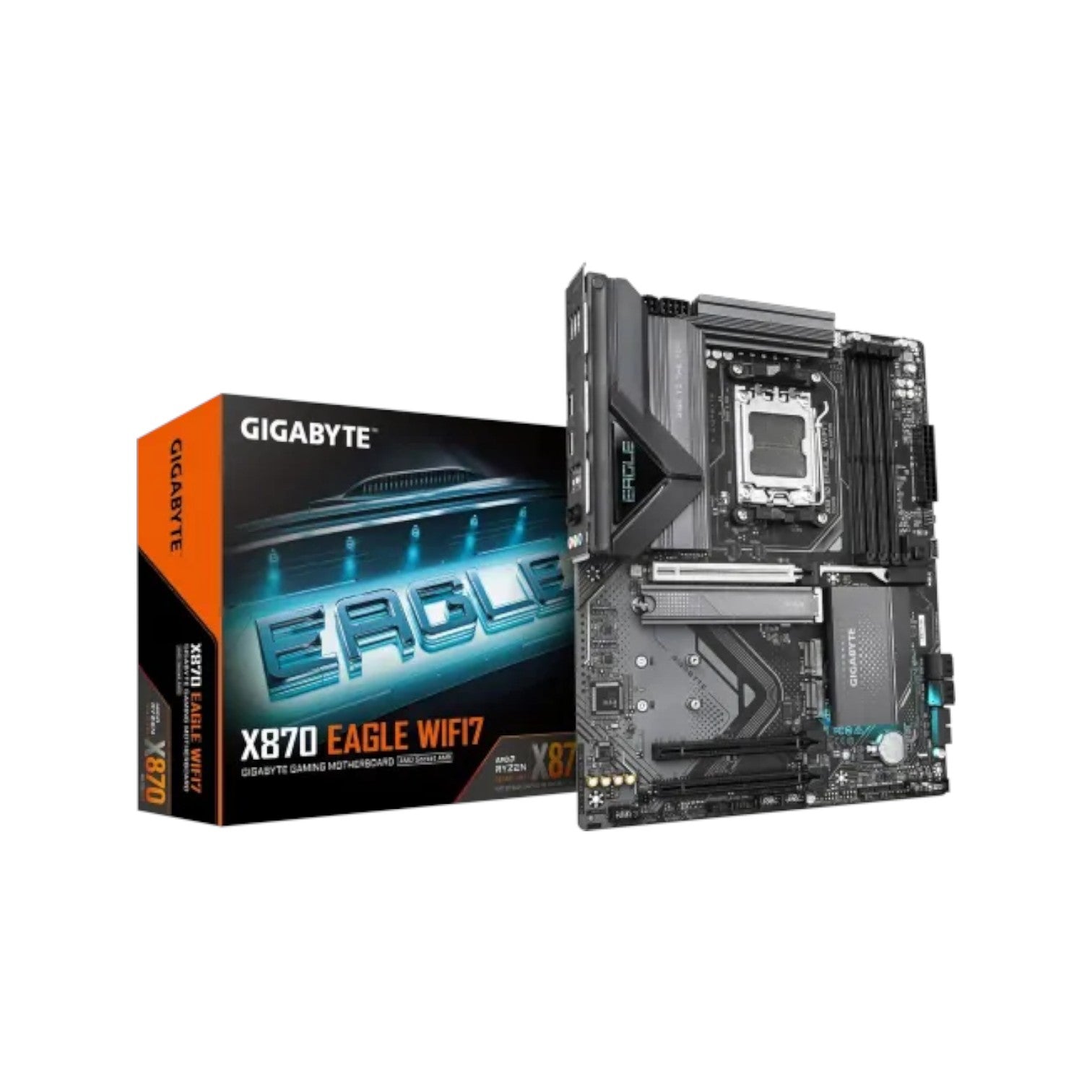

GIGABYTE X870 EAGLE WIFI7 DDR5 AMD AM5 ATX Motherboard

GIGABYTE X870 EAGLE WIFI7 DDR5 AMD AM5 ATX Motherboard

Brand: Gigabyte (AMD)
SKU: X870 EAGLE WIFI7
Availability: In stock

Key Features

Graphics Output: 1 x HDMI, 2 x USB4 (Type-C)
Supported RAM: 4x DDR5, Max 256GB, 8000(OC)
Features: Realtek 2.5GbE LAN, MediaTek Wi-Fi 7 MT7925
Supported CPU: Ryzen 9000/ 8000/ 7000 Series Processors for Socket AM5

Ask an expert
Tk 35,000
Tk 35,700
Tk 35,000
Subtotal: Tk 35,000
Description

Specification

Basic Information

Supported CPU AMD Socket AM5, support for AMD Ryzen 9000, 8000 & 7000 Series Processors
Chipset AMD X870
BIOS 1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor ATX Form Factor; 30.5cm x 24.4cm
Audio Realtek Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel

Expansion Slots

PCI 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
AMD Ryzen 900/7000 Series Processors support PCIe 5.0 x16 mode
AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
Chipset:
- 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1/2)

Memory

Type DDR5
Slots 4 DIMMs
Supported Memory Support for DDR5 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules
Dual channel memory architecture
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules

(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)
Maximum Memory up to 256 GB (64 GB single DIMM capacity) of system memory

Graphics

Graphics Integrated Graphics Processor with AMD Radeon™ Graphics support+ASMedia USB4® Controller:
- 2 x USB4® USB Type-C® ports, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@240 Hz
* Support for DisplayPort 1.4 version and HDR.


Integrated Graphics Processor with AMD Radeon™ Graphics support:
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version, HDCP 2.3, and HDR.
** Support native HDMI 2.1 TMDS compatible ports.

Connector & Ports

HDMI 1 x HDMI port
USB(s) CPU+ASMedia USB4® controller:
- 2 x USB4® USB Type-C® ports on the back panel
CPU:
- 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
- 1 x USB 3.2 Gen 1 port on the back panel
CPU+USB 2.0 Hub:
- 4 x USB 2.0/1.1 ports on the back panel
Chipset:
- 1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header
- 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
- 4 x USB 2.0/1.1 ports available through the internal USB headers
LAN Port(s) Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module AMD Wi-Fi 6E RZ616 (MT7922A22M)
WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
BLUETOOTH 5.2
Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
Supported Storage 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:
AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
AMD Ryzen™ 8000 Series- Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
AMD Ryzen™ 8000 Series- Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x2 SSDs
1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x4/x2 SSDs
* The M2B_SB connector shares bandwidth with the M2C_SB connector. The M2B_SB connector operates at up to x2 mode when a PCIe SSD is installed in the M2C_SB connector.
4 x SATA 6Gb/s connectors
RAID RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
* RAID 5 is only available on AMD Ryzen™ 9000 Series Processors.
RAID 0, RAID 1, and RAID 10 support for SATA storage devices
Audio Realtek Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
Internal I/O Ports 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x 4-pin ATX 12V power connector
1 x CPU fan header
1 x CPU fan/water cooling pump header
4 x system fan headers
3 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
4 x SATA 6Gb/s connectors
3 x M.2 Socket 3 connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header, with USB 3.2 Gen 2x2 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
1 x power button
1 x reset button
1 x reset jumper
1 x Clear CMOS jumper

Back Panel Connectors
1 x Q-Flash Plus button
2 x antenna connectors (2T2R)
1 x HDMI port*
2 x USB4® USB Type-C® ports (DisplayPort*)
1 x USB 3.2 Gen 2 Type-A port (red)
3 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks
TPM (Trusted Platform Module) 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)

Others

Special Features Support for GIGABYTE Control Center (GCC)
* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
Support for Q-Flash
Support for Q-Flash Plus
Support for Smart Backup
Bundled Software Norton Internet Security (OEM version)
LAN bandwidth management software

Warranty

Warranty 3 years



Description

GIGABYTE X870 EAGLE WIFI7 DDR5 AMD AM5 ATX Motherboard

The GIGABYTE X870 EAGLE WIFI7 DDR5 AMD AM5 ATX Motherboard is a high-performance powerhouse built for gamers, creators, and professionals who demand exceptional speed, stability, and future-ready technology. Supporting the latest AMD Ryzen 9000, 8000, and 7000 Series processors with the AM5 socket, it delivers outstanding computing performance for gaming and productivity. Equipped with a digital twin 14+2+2 phases VRM solution, this motherboard ensures reliable power delivery and excellent overclocking potential, making it ideal for users who want to push their hardware to the limit. With dual-channel DDR5 memory support and AMD EXPO compatibility, it enables faster data transfer rates and smooth multitasking performance. The EZ-Latch Plus design simplifies component installation, allowing tool-free upgrades for PCIe and M.2 slots. It features next-generation connectivity with USB4 Type-C, HDMI, and multiple high-speed USB ports for versatile peripheral integration. Networking is equally advanced, featuring Realtek 2.5GbE LAN and MediaTek Wi-Fi 7 MT7925 for ultra-fast and stable connections, perfect for gaming and streaming. Combining powerful performance, efficient cooling, and cutting-edge features, the GIGABYTE X870 EAGLE WIFI7 DDR5 AMD AM5 ATX Motherboard is built to deliver a seamless, future-proof computing experience.

Buy the GIGABYTE X870 EAGLE WIFI7 DDR5 AMD AM5 ATX Motherboard from Tech Buy BD for authentic products and the best prices in Bangladesh.
