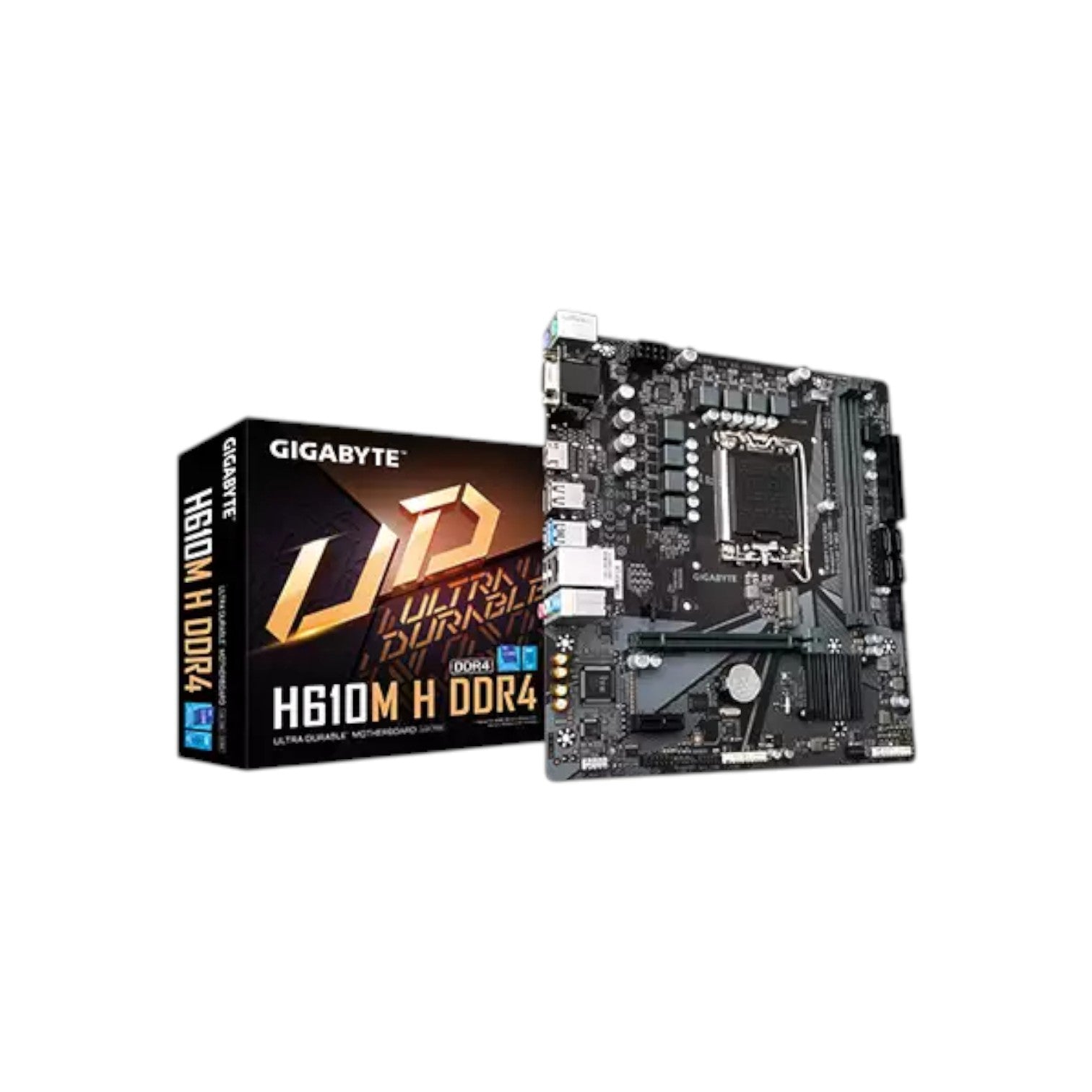

GIGABYTE H610M H DDR4 Micro ATX Motherboard

GIGABYTE H610M H DDR4 Micro ATX Motherboard

Brand: Gigabyte (Intel)
SKU: H610M H DDR4
Availability: In stock

Key Features

NVMe PCIe 3.0 x4 M.2
Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs
Intel GbE LAN with cFosSpeed Internet Accelerator Software
Supported CPU: 14th/13th/12th Gen Intel Processors (LGA1700)

Ask an expert
Tk 10,600
Tk 11,000
Tk 10,600
Subtotal: Tk 10,600
Description

Specification

Basic Information

Supported CPU LGA1700 socket: Support for 14th, 13th and 12th Generation Intel Core, Pentium Gold and Celeron Processors
L3 cache varies with CPU
Chipset Intel H610 Express Chipset
BIOS 1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor Micro ATX Form Factor; 23.0cm x 21.5cm
Audio Realtek Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel

Expansion Slots

PCI 1 x PCI Express x16 slot, running at x16
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
(The PCI Express x16 slot conforms to PCI Express 4.0 standard.)
1 x PCI Express x1 slot
(The PCI Express x1 slot conforms to PCI Express 3.0 standard.)

Memory

Type DDR4
Slots 2 x DDR DIMM sockets
Supported Memory 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MHz memory modules
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Maximum Memory Up to 64 GB (32 GB single DIMM capacity) of system memory



Graphics

Graphics Integrated Graphics Processor-Intel HD Graphics support:
1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.
** Support native HDMI 2.1 TMDS compatible ports



Connector & Ports

HDMI 1 x HDMI 2.0 port
D-Sub (s) 1 x D-Sub port
USB (s) Chipset:
4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
4 x USB 2.0/1.1 ports on the back panel

Chipset+USB 2.0 Hub:
4 x USB 2.0/1.1 ports available through the internal USB headers
LAN Port (s) Intel GbE LAN chip (1 Gbps/100 Mbps)
Supported Storage Chipset:
1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 3.0 x4/x2 SSD support)
4 x SATA 6Gb/s connectors
Audio 3 x audio jacks
Internal I/O Ports 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x M.2 Socket 3 connector
4 x SATA 6Gb/s connectors
1 x CPU fan header
2 x system fan headers
1 x RGB LED strip header
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
1 x serial port header
1 x Clear CMOS jumper
TPM (Trusted Platform Module ) 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)

Others

Special Features Support for APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
@BIOS
Ambient LED
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
Smart Backup
System Information Viewer
Support for Q-Flash
Support for Xpress Install
Bundled Software Norton Internet Security (OEM version)
LAN bandwidth management software

Warranty

Warranty 3 years

Description

GIGABYTE H610M H DDR4 Micro ATX Motherboard

The GIGABYTE H610M H DDR4 Micro ATX Motherboard is designed to deliver stable performance and reliability for everyday computing and gaming builds. Supporting 14th, 13th, and 12th Generation Intel Core, Pentium Gold, and Celeron processors through the LGA1700 socket, it ensures compatibility with a wide range of CPUs. Featuring a 6+1+1 Hybrid Digital VRM design with solid capacitors, this motherboard provides efficient and stable power delivery, improving transient response and reducing voltage fluctuations for enhanced CPU performance.

With dual-channel DDR4 memory support across two DIMM slots, the H610M H DDR4 supports up to 64GB of RAM, ensuring smooth multitasking and fast data access. It comes equipped with a Realtek 8118 Gaming LAN chip, offering automatic bandwidth allocation for optimal network performance and reduced latency during online gaming or streaming.

For visuals, the motherboard includes HDMI and D-Sub ports, allowing multiple display configurations with high-definition output. The Smart Fan 6 technology ensures efficient thermal management with multiple temperature sensors and hybrid fan headers that include a Fan Stop feature for silent operation when cooling is not needed. Additionally, solid-plated ATX 12V 8-pin power connectors enhance durability and ensure a stable power supply during CPU-intensive workloads.

Compact yet capable, the GIGABYTE H610M H DDR4 Micro ATX Motherboard is an excellent choice for users looking to build a modern and cost-effective desktop system with reliable performance and essential connectivity features.

Buy the GIGABYTE H610M H DDR4 Micro ATX Motherboard from Tech Buy BD. In Bangladesh, you can get the latest GIGABYTE motherboards for your desktop PC. Order online or visit Tech Buy BD to get yours at the best price. The GIGABYTE H610M H DDR4 Micro ATX Motherboard comes with a 3-year warranty.
