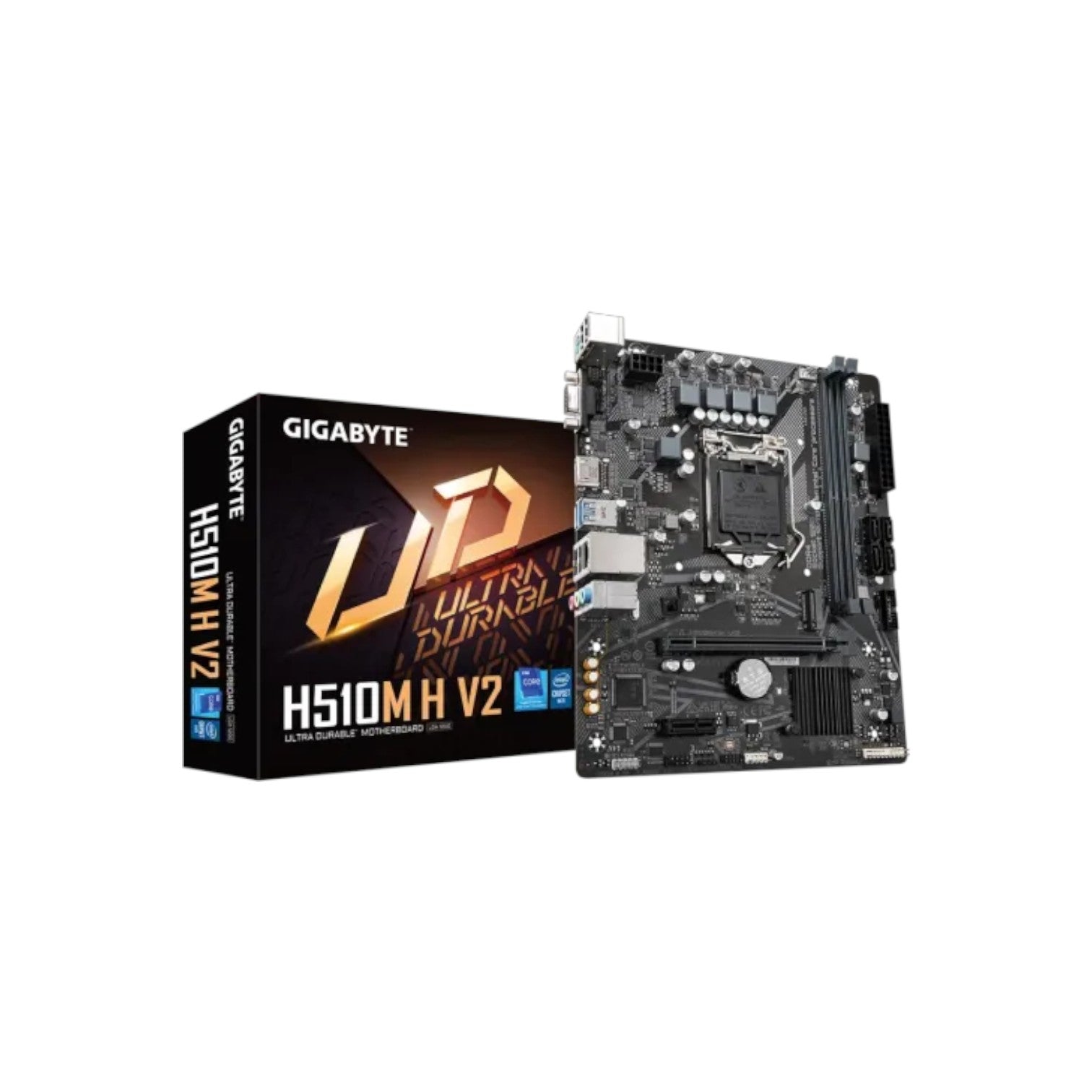

GIGABYTE H510M H V2 11th/10th Gen Micro ATX Motherboard

GIGABYTE H510M H V2 11th/10th Gen Micro ATX Motherboard

Brand: Gigabyte (Intel)
SKU: H510M H V2
Availability: Out Of Stock

Key Features

CEC 2019 Ready
2 x DIMM, Max. 32GB DDR4
Chipset: Intel H310 Express Chipset
Supports 9th and 8th Gen Intel Core Processors

Ask an expert
Tk 9,400
Tk 9,700
Tk 9,400
Subtotal: Tk 9,400
Description

Specification

Basic Information

Supported CPU LGA1200 package:
11th/10th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors / Intel Core i3 processors/ Intel Pentium processors / Intel Celeron processors
L3 cache varies with CPU
Chipset Intel H470 Express Chipset
BIOS 1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor Micro ATX Form Factor: 22.6cm x 18.5cm
Audio Realtek Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel

Expansion Slots

PCI CPU:
1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16
Chipset:
1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1

Memory

Type DDR4
Slots 2 x DIMM
Supported Memory 10th Generation Intel Core i9/i7 processors:
Support for DDR4 2933/2666/2400/2133 MHz memory modules
10th Generation Intel Core i5/i3/Pentium/Celeron processors:
Support for DDR4 2666/2400/2133 MHz memory modules
2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
(Please refer to "Memory Support List" for more information.)
Maximum Memory 64GB (32 GB single DIMM capacity)



Graphics

Graphics Integrated Graphics Processor-Intel HD Graphics support:
1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
* Support for HDMI 1.4 version and HDCP 2.3.
1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
* Support for HDMI 1.4 version and HDCP 2.3.



Connector & Ports

HDMI 1 x HDMI port
D-Sub (s) 1 x D-Sub port
USB (s) Chipset:
4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
LAN Port (s) Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
Supported Storage 1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 3.0 x4/x2 SSD support)
4 x SATA 6Gb/s connectors
RAID RAID 0, RAID 1, RAID5, and RAID 10 support for NVMe SSD storage devices
Internal I/O Ports Internal I/O Connectors:

1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x system fan header
1 x RGB LED strip header
1 x M.2 Socket 3 connector
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
1 x USB 2.0/1.1 header
1 x serial port header
1 x Clear CMOS jumper

Back Panel Connectors
1 x PS/2 keyboard/mouse port
1 x D-Sub port
1 x HDMI port
TPM (Trusted Platform Module ) 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)

Others

Special Features Support for APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
@BIOS
Ambient LED
EasyTune
Smart Backup
System Information Viewer
Support for Q-Flash
Support for Xpress Install
Bundled Software Norton Internet Security (OEM version)
LAN bandwidth management software

Warranty

Warranty 3 years

Description

GIGABYTE H510M H V2 11th/10th Gen Micro ATX Motherboard

The GIGABYTE H510M H V2 11th/10th Gen Micro ATX Motherboard is designed to deliver reliable performance and efficiency for modern computing setups. Supporting both 10th and 11th Generation Intel Core processors, it provides a solid foundation for home, office, or entry-level gaming PCs. With a Dual Channel Non-ECC Unbuffered DDR4 memory configuration and two DIMM slots, it ensures smooth multitasking and faster memory performance for everyday tasks and applications.

This motherboard includes a versatile display setup with one D-Sub and one HDMI port, enabling users to connect multiple monitors for enhanced productivity and entertainment. The inclusion of an NVMe PCIe Gen3 x4 2280 M.2 connector ensures ultra-fast data transfer speeds and quick application loading times, while the GbE LAN with bandwidth management enhances network performance for seamless browsing, streaming, and gaming experiences.

For cooling and system stability, the GIGABYTE H510M H V2 features Smart Fan 5 technology, which uses multiple temperature sensors and hybrid fan headers with Fan Stop functionality, ensuring optimized thermal performance and quiet operation. Audio enthusiasts will appreciate its 8-channel HD Audio system with high-quality audio capacitors, providing rich and immersive sound.

Durability is a key highlight of this motherboard, featuring Anti-Sulfur resistors and high-quality components that enhance longevity and reliability under varying environmental conditions. The GIGABYTE APP Center further simplifies system customization and management, offering easy access to essential utilities. Compact yet capable, the GIGABYTE H510M H V2 is a dependable choice for users seeking stability, efficiency, and performance in a micro ATX form factor.

Buy the GIGABYTE H510M H V2 11th/10th Gen Micro ATX Motherboard from Tech Buy BD. In Bangladesh, you can get the latest GIGABYTE motherboards for your desktop PC. Order online or visit Tech Buy BD to get yours at the best price. The GIGABYTE H510M H V2 11th/10th Gen Micro ATX Motherboard comes with a 3-year warranty.
