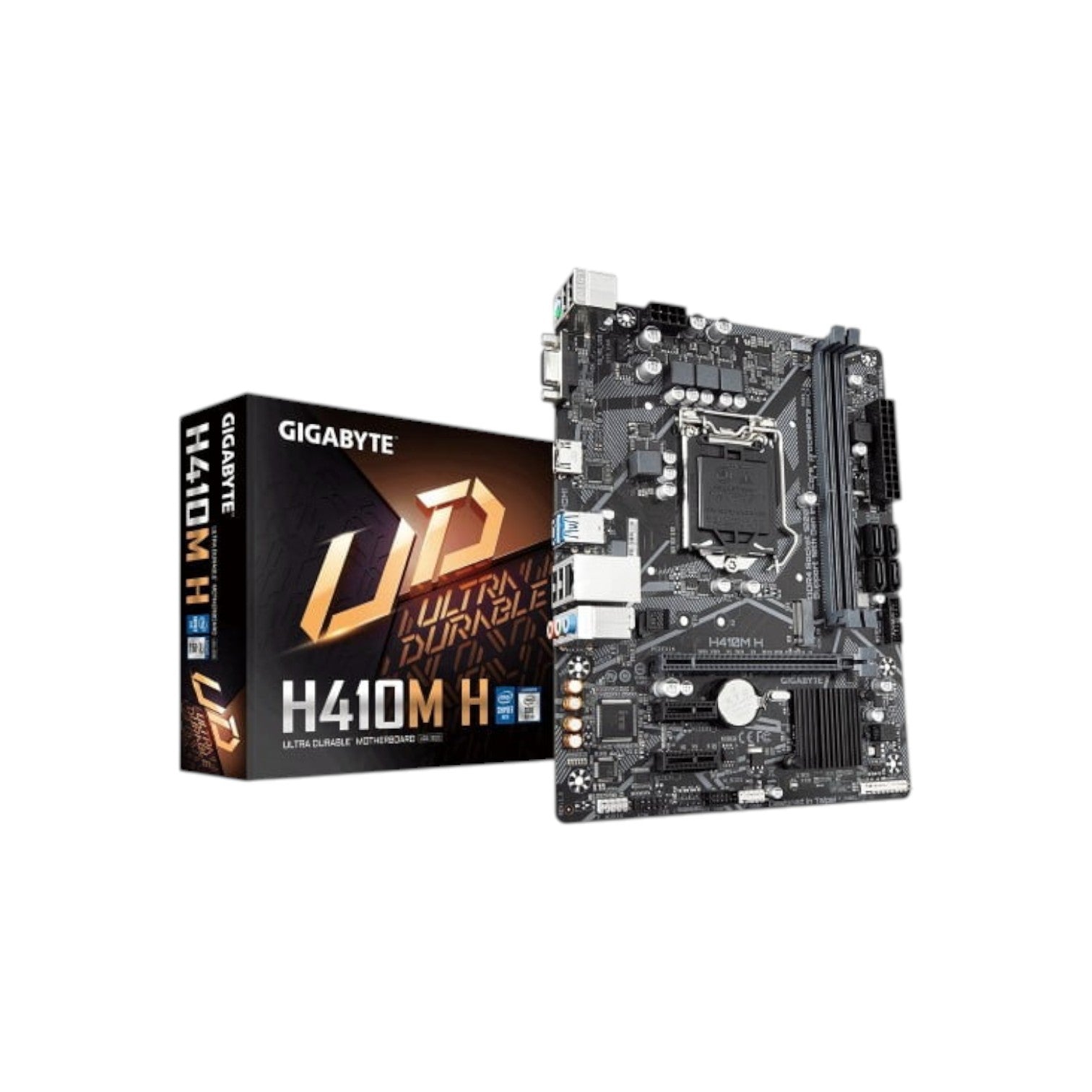

Gigabyte H410M H 10th Gen Micro ATX Motherboard

SKU: H410M H
Availability: Out Of Stock

Key Features

8-Channel HD Audio
Smart Fan 5 features
Anti-Sulfur Resistors Design
Intel Socket LGA1200 for 10th Gen Processors

Tk 9,000
Tk 9,500
Tk 9,000
Subtotal: Tk 9,000

Specification

Basic Information

Supported CPU Support for 10th Generation Intel Core i9 processors/ Intel Core i7 processors/ Intel Core i5 processors/ Intel Core i3 processors/ Intel Pentium processors/ Intel Celeron processors in the LGA1200 package
L3 cache varies with CPU
Chipset Intel H410 Express Chipset
BIOS 1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor Micro ATX Form Factor; 22.6cm x 17.4cm

Expansion Slots

PCI 1 x PCI Express x16 slot, running at x16
2 x PCI Express x1 slots
M.2 Socket 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x2 SSD support)

Memory

Type Dual-channel architecture
Slots 2 x DDR4 DIMM
Supported Memory Intel® Core™ i9/i7 processors:
Support for DDR4 2933/ 2666/ 2400/ 2133 MHz memory modules
Intel Core i5/ i3/ Pentium /Celeron processors:
Support for DDR4 2666/ 2400/ 2133 MHz memory modules
Maximum Memory 64 GB



Graphics

Graphics Integrated Graphics Processor-Intel HD Graphics support:
1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
1 x HDMI ports, supporting a maximum resolution of 4096x2160@30 Hz
Max Shared Memory 512MB



Connector & Ports

HDMI 1 x HDMI ports, supporting a maximum resolution of 4096x2160@30 Hz
D-Sub (s) 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
USB (s) 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
LAN Port (s) Realtek GbE LAN chip (1000 Mbit/100 Mbit)
Supported Storage 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x2 SSD support)
4 x SATA 6Gb/s connectors
Audio Realtek ALC887 codec
High Definition Audio
2/4/5.1/7.1-channel
Internal I/O Ports 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x system fan header
1 x RGB LED strip header
4 x SATA 6Gb/s connectors
1 x M.2 Socket 3 connector
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
1 x USB 2.0/1.1 header
1 x serial port header
1 x Clear CMOS jumper
TPM (Trusted Platform Module ) 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)

Others

Special Features Support for APP Center
@BIOS
Ambient LED
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
Smart Backup
System Information Viewer
Support for Q-Flash
Support for Xpress Install
Bundled Software Support for Windows 10 64-bit

Warranty

Warranty 3 years

Description

Gigabyte H410M H 10th Gen Micro ATX Motherboard

The Gigabyte H410M H 10th Gen Micro ATX Motherboard is a durable and feature-rich solution built to deliver stable performance for 10th Generation Intel Core processors. Designed for mainstream users and gamers alike, this motherboard combines reliability, efficient cooling, and advanced network technology to provide a smooth computing experience. Featuring the Intel H410 chipset, it supports Intel Core i9, i7, i5, i3, Pentium Gold, and Celeron processors on the LGA 1200 socket, ensuring solid performance for both work and play.

This motherboard comes equipped with Realtek 8118 Gaming LAN, a high-performance network controller with automatic bandwidth allocation that prioritizes gaming and critical applications to ensure low latency and stable connections. Storage performance is enhanced with support for M.2 SSDs, allowing faster data transfer and system responsiveness. With Smart Fan 5 technology, users can monitor temperature sensors across the system and adjust fan speeds dynamically for optimal cooling. It also features hybrid fan headers supporting both PWM and Voltage mode fans, making it compatible with modern liquid cooling solutions. The Fan Stop function allows complete silence when system temperatures drop below a set threshold, providing efficient and quiet operation.

The Gigabyte H410M H Motherboard incorporates premium audio components, including high-end capacitors for high-fidelity sound and an audio noise guard design that isolates sensitive analog audio circuitry, minimizing interference for immersive sound quality. Built with Ultra Durable components, it features an Anti-Sulfur design to prevent corrosion, Anti-Surge ICs to protect against power fluctuations, and Glass Fabric PCB technology that resists humidity by reducing moisture penetration. These features collectively enhance system longevity and reliability, even in challenging environments.

With energy-efficient Low RDS(on) MOSFETs, this motherboard minimizes heat and power loss, ensuring environmentally friendly performance without sacrificing stability. The redesigned Gigabyte BIOS provides a modern, intuitive interface, making system setup and optimization easier for all users. Compact yet powerful, the Gigabyte H410M H is ideal for users building reliable, efficient, and cost-effective PCs for gaming, office, or home use.

Buy the Gigabyte H410M H 10th Gen Micro ATX Motherboard from Tech Buy BD. In Bangladesh, you can get the latest Gigabyte motherboards for your desktop PC. Order online or visit Tech Buy BD to get yours at the best price. The Gigabyte H410M H 10th Gen Micro ATX Motherboard comes with a 3-year warranty.
