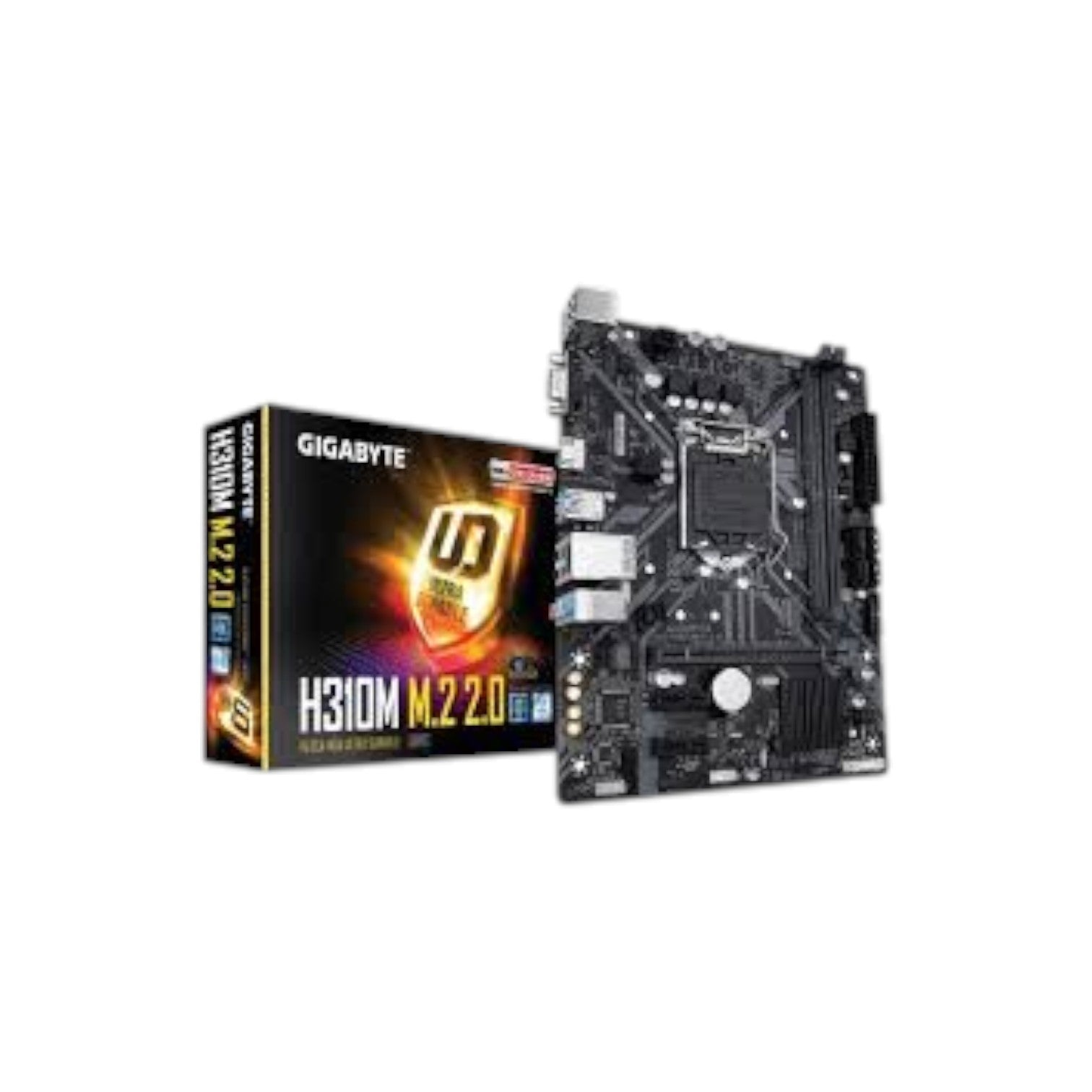

Gigabyte H310M M.2 9th Gen Micro ATX Motherboard

Gigabyte H310M M.2 9th Gen Micro ATX Motherboard

Brand: Gigabyte (Intel)
SKU: H310M
Availability: In stock

Key Features

CEC 2019 Ready
2 x DIMM, Max. 32GB DDR4
Chipset: Intel H310 Express Chipset
Supports 9th and 8th Gen Intel Core Processors

Ask an expert
Tk 9,600
Tk 9,900
Tk 9,600
Subtotal: Tk 9,600
Description

Specification

Basic Information

Supported CPU Support for 9th and 8th Generation Intel Core i9 processors/Intel Core i7 processors/Intel Core i5 processors/Intel Core i3 processors/Intel Pentium processors/Intel Celeron processors in the LGA1151 package
L3 cache varies with CPU
Chipset Intel H310 Express Chipset
BIOS 1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor Micro ATX Form Factor; 22.6cm x 17.4cm

Expansion Slots

PCI 1 x PCI Express x16 slot, running at x16
(The PCIEX16 slot conforms to PCI Express 3.0 standard.)
2 x PCI Express x1 slots
(The PCI Express x1 slots conform to PCI Express 2.0 standard.)
M.2 Socket 1 x M.2 connector (Socket 3, M key, type 2260/2280 SATA and PCIe x2 SSD support)

Memory

Type Dual-channel memory architecture
Slots 2 x DDR4 DIMM
Supported Memory Support for DDR4 2666/2400/2133 MHz memory modules
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Maximum Memory 32 GB



Graphics

Graphics Integrated Graphics Processor-Intel HD Graphics support:
1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
Max Shared Memory 1 GB



Connector & Ports

HDMI 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
Support for HDMI 1.4 version and HDCP 2.2.
D-Sub (s) 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
USB (s) 4 x USB 3.1 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
LAN Port (s) Realtek GbE LAN chip (10/100/1000 Mbit)
Supported Storage 1 x M.2 connector (Socket 3, M key, type 2260/2280 SATA and PCIe x2 SSD support)
4 x SATA 6Gb/s connectors
Audio Realtek ALC887 codec
High Definition Audio
2/4/5.1/7.1-channel
Internal I/O Ports 1 x 24-pin ATX main power connector
1 x 4-pin ATX 12V power connector
4 x SATA 6Gb/s connectors
1 x CPU fan header
1 x system fan header
1 x front panel header
1 x front panel audio header
1 x USB 3.1 Gen 1 header
1 x USB 2.0/1.1 header
1 x Clear CMOS jumper
TPM (Trusted Platform Module ) 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)

Others

Special Features Support for APP Center
@BIOS
AutoGreen
Cloud Station
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
Platform Power Management
Smart Backup
Smart Keyboard
System Information Viewer
USB Blocker
Support for Q-Flash
Support for Xpress Install

Warranty

Warranty 3 years

Description

Gigabyte H310M M.2 9th Gen Micro ATX Motherboard

The Gigabyte H310M M.2 9th Gen Micro ATX Motherboard is a compact yet powerful solution designed to deliver efficient performance for 8th and 9th Generation Intel Core processors. Built with reliability and user convenience in mind, this motherboard combines speed, durability, and advanced cooling control to provide an optimal PC-building experience. Equipped with the Realtek 8118 Gaming LAN, it ensures high network performance with automatic bandwidth allocation, prioritizing gaming and essential applications for the smoothest online experience.

Designed for enthusiasts, this Gigabyte motherboard features M.2 technology for fast storage, allowing users to maximize system responsiveness and load speeds. With Smart Fan 5, users can monitor multiple temperature sensors across the system and adjust fan speeds dynamically for efficient cooling. It also includes hybrid fan headers that support both PWM and Voltage mode fans, making it fully compatible with liquid cooling setups. The Fan Stop feature allows complete silence when temperatures drop below a chosen threshold, ensuring balanced performance and quiet operation.

The Gigabyte H310M M.2 Motherboard delivers exceptional audio clarity with high-end audio capacitors and an audio noise guard that isolates sensitive sound components from PCB interference, ensuring an immersive sound experience. Built with Glass Fabric PCB technology, it provides resistance against humidity, preventing moisture from damaging the board. Additionally, anti-surge ICs protect against electrical spikes, ensuring long-term stability and safety.

With Gigabyte’s redesigned BIOS interface, setup and configuration are simpler than ever, offering users an intuitive and efficient experience. Compact yet feature-rich, the Gigabyte H310M M.2 9th Gen Micro ATX Motherboard is a reliable choice for users looking to build a stable, durable, and high-performing PC for gaming, office, or home use.

Buy the Gigabyte H310M M.2 9th Gen Micro ATX Motherboard from Tech Buy BD. In Bangladesh, you can get the latest Gigabyte motherboards for your desktop PC. Order online or visit Tech Buy BD to get yours at the best price. The Gigabyte H310M M.2 9th Gen Micro ATX Motherboard comes with a 3-year warranty.
