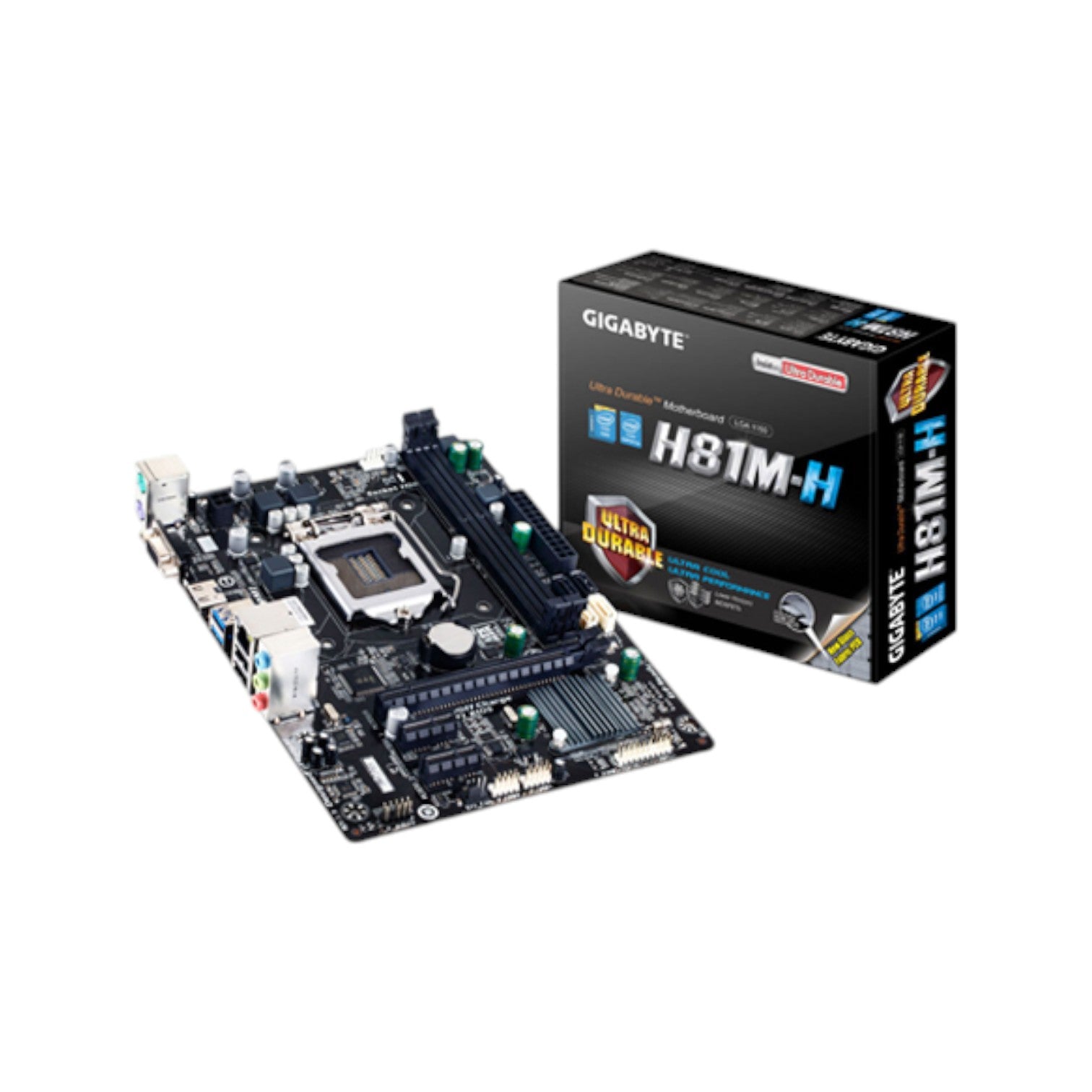

GIGABYTE GA-H81M-H 4th Gen Micro ATX Motherboard

SKU: GA-H81M-H
Availability: In stock

Key Features

Graphics Output: 1 x D-Sub, 1 x HDMI
Features: LAN with high ESD Protection
Supported RAM: 2 x 1.5V DDR3 DIMM up to 16 GB 1600MHz
Supported CPU: 4th Generation Intel Core processors (LGA1150)

Tk 8,800
Tk 9,200
Tk 8,800
Subtotal: Tk 8,800

Specification

Basic Information

Supported CPU Support for Intel Core i7 processors/Intel Core i5 processors/Intel Core i3 processors/Intel Pentium processors/Intel Celeron processors in the LGA1150 package
L3 cache varies with CPU
Chipset Intel H81 Express Chipset
BIOS 1 x 32 Mbit flash
Use of licensed AMI EFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor Micro ATX Form Factor; 22.6cm x 17cm
Audio Realtek ALC887 codec
High Definition Audio
2/4/5.1/7.1-channel

Expansion Slots

PCI 1 x PCI Express x16 slot, running at x16
2 x PCI Express x1 slots

Memory

Type DDR3
Slots 2 x 1.5V DIMM sockets
Supported Memory Dual channel memory architecture
Support for DDR3 1600/1333 MHz memory modules
Support for non-ECC memory modules
Support for Extreme Memory Profile (XMP) memory modules
Maximum Memory 16 GB



Graphics

Graphics Integrated Graphics Processor - Intel HD Graphics support:
1 x D-Sub port, supporting a maximum resolution of 1920x1200
1 x HDMI port, supporting a maximum resolution of 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
* Support for HDMI 1.4a version.
Max Shared Memory 1 GB



Connector & Ports

HDMI 1 x HDMI
D-Sub (s) 1 x D-Sub
USB (s) Chipset:
2 x USB 3.0/2.0 ports on the back panel
6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
LAN Port (s) Realtek GbE LAN chip (10/100/1000 Mbit)
Supported Storage Chipset:
2 x SATA 6Gb/s connectors (SATA3 0/1)
2 x SATA 3Gb/s connectors (SATA2 2/3)
Internal I/O Ports 1 x 24-pin ATX main power connector
1 x 4-pin ATX 12V power connector
2 x SATA 6Gb/s connectors
2 x SATA 3Gb/s connectors
1 x CPU fan header
1 x system fan header
1 x front panel header
1 x front panel audio header
2 x USB 2.0/1.1 headers
1 x Clear CMOS jumper



Others

Special Features Support for Q-Flash
Support for Xpress Install
Support for APP Center
* Available applications in APP Center may differ by motherboard model. Supported functions of each application may also differ depending on motherboard specifications.
@BIOS
EasyTune
EZ Setup
USB Blocker
Smart TimeLock
Smart Recovery 2
Support for ON/OFF Charge

Warranty

Warranty 3 years

Description

GIGABYTE GA-H81M-H 4th Gen Micro ATX Motherboard

The GIGABYTE GA-H81M-H 4th Gen Micro ATX Motherboard is a reliable and efficient platform designed to support 4th Generation Intel Core processors, delivering stable performance for everyday computing and office tasks. Built with GIGABYTE Ultra Durable technology, it ensures long-lasting reliability, enhanced power efficiency, and superior protection. Equipped with the Intel H81 chipset, this motherboard supports Intel Core i7, i5, i3, Pentium, and Celeron processors on the LGA 1150 socket, making it ideal for users seeking a balance between performance and affordability. It offers two DDR3 memory slots supporting up to 16GB of dual-channel memory, ensuring smooth multitasking and fast data access.

The GIGABYTE GA-H81M-H Motherboard features a UEFI DualBIOS for simplified configuration and protection against BIOS failure. With high ESD protection on both LAN and USB ports, it safeguards your system from electrical surges and static discharges. It also includes HDMI and D-SUB display outputs, providing flexible connectivity for both modern and legacy monitors. Solid capacitors in the CPU VRM design ensure long-term durability and stable power delivery, while Smart Fan 2 technology offers optimal cooling performance and quiet operation.

For added convenience, the GIGABYTE GA-H81M-H comes with GIGABYTE On/Off Charge, allowing users to charge USB devices even when the PC is powered off. The 3x USB Power feature enhances power output for faster charging and reliable data transfer. GIGABYTE’s LAN Optimizer helps prioritize network bandwidth for smoother online experiences, while EasyTune and App Center software provide user-friendly system tuning and updates directly from Windows.

With built-in protection against humidity, electrostatic discharge, and power failure, this motherboard is built to withstand challenging environments and ensure consistent operation. Compact yet capable, the GIGABYTE GA-H81M-H is an excellent choice for users building cost-effective and durable desktop systems for home or office use.

Buy the GIGABYTE GA-H81M-H 4th Gen Micro ATX Motherboard from Tech Buy BD. In Bangladesh, you can get the latest GIGABYTE motherboards for your desktop PC. Order online or visit Tech Buy BD to get yours at the best price. The GIGABYTE GA-H81M-H 4th Gen Micro ATX Motherboard comes with a 3-year warranty.
