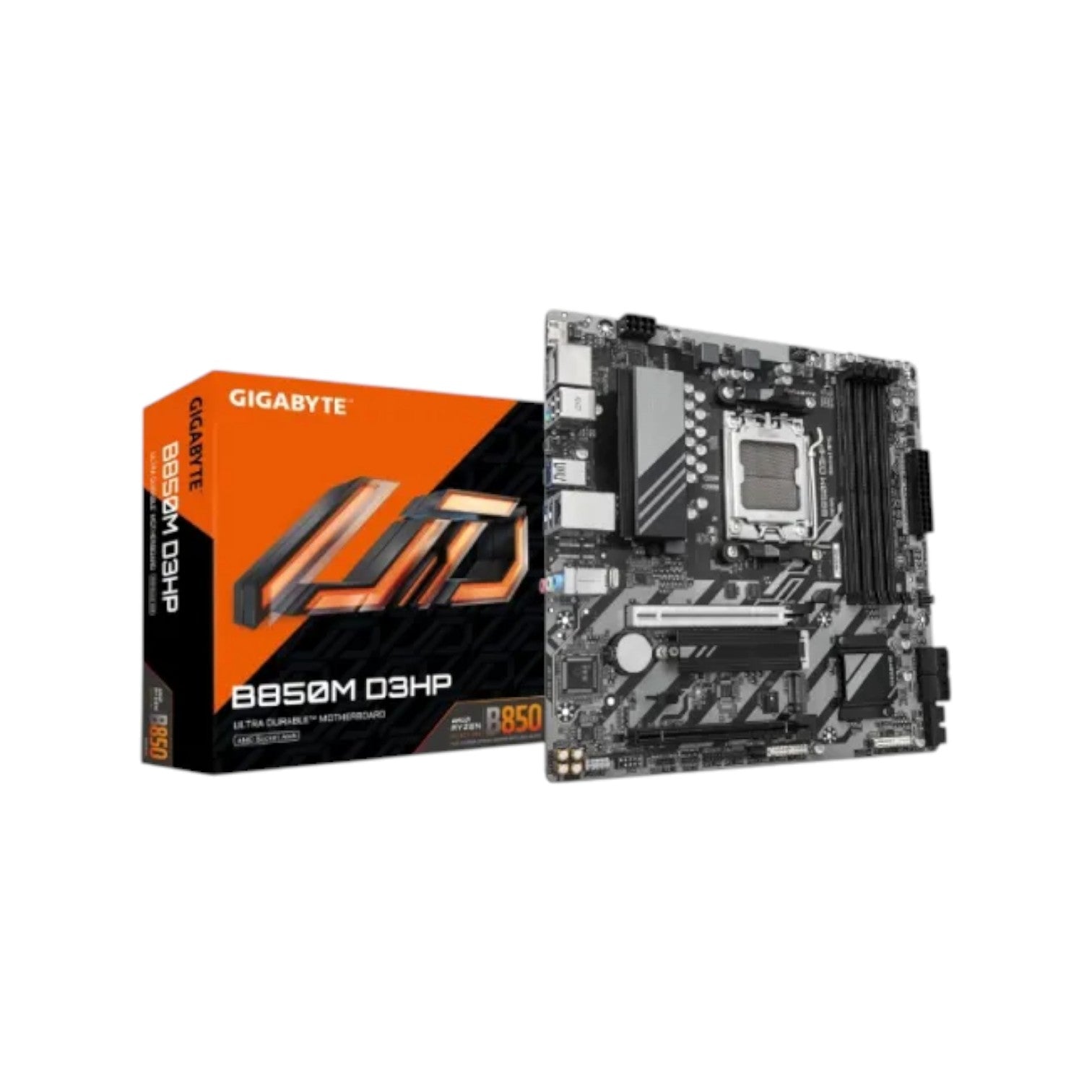

GIGABYTE B850M D3HP AMD AM5 DDR5 Micro ATX Motherboard

GIGABYTE B850M D3HP AMD AM5 DDR5 Micro ATX Motherboard

Brand: Gigabyte (AMD)
SKU: B850M D3HP
Availability: In stock

Key Features

Graphics Output: 2x Display Port, 1 x HDMI
Features: 2x M.2 Slot, Realtek GbE LAN chip
Supported RAM: 4x DDR5, up to 256GB, 8200(OC)
Supported CPU: AMD Ryzen 9000/ 8000/ 7000 Series Processors for Socket AM5

Ask an expert
Tk 21,500
Tk 22,100
Tk 21,500
Subtotal: Tk 21,500
Description

Specification

Basic Information

Supported CPU AMD Socket AM5, support for:
AMD Ryzen 9000 Series Processors
AMD Ryzen 8000 Series Processors
AMD Ryzen 7000 Series Processors
Chipset AMD B650
BIOS 1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor Micro ATX Form Factor; 24.4cm x 24.4cm
Audio Realtek Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

Expansion Slots

PCI 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x16 mode
AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
Chipset:
- 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4)
M.2 Socket 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2580/2280 SSDs:
AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs:
AMD Ryzen 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs
AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs



Memory

Type DDR5
Slots 4 DIMM
Supported Memory Support for DDR5 8200(OC) / 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC)/6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules
Dual channel memory architecture
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules
Maximum Memory Up to 256 GB (64 GB single DIMM capacity) of system memory



Graphics

Graphics Integrated Graphics Processor with AMD Radeon Graphics support:
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version, HDCP 2.3, and HDR.
** Support for native HDMI 2.1 TMDS compatible ports.
- 2 x DisplayPorts, supporting a maximum resolution of 3840x2160@144 Hz
* Support for DisplayPort 1.4 version.
(Graphics specifications may vary depending on CPU support.)
Support for up to triple-display at the same time



Connector & Ports

HDMI 1 x HDMI
Display Port (s) 2 x DisplayPorts
USB (s) CPU:
- 1 x USB Type-C port on the back panel, with USB 3.2 Gen 1 support
- 1 x USB 3.2 Gen 1 port on the back panel
- 1 x USB 2.0/1.1 port on the back panel
Chipset:
- 1 x USB Type-C port with USB 3.2 Gen 1 support, available through the internal USB header
- 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
- 5 x USB 2.0/1.1 ports (1 port on the back panel, 4 ports available through the internal USB headers)
LAN Port (s) Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
Supported Storage 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2580/2280 SSDs:
AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs:
AMD Ryzen 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs
AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs
4 x SATA 6Gb/s connectors
RAID RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
* RAID 5 is only available on AMD Ryzen 9000 Series Processors.
RAID 0, RAID 1, and RAID 10 support for SATA storage devices
Audio 3 x Audio jacks
Internal I/O Ports 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x CPU fan/water cooling pump header
1 x system fan header
1 x system fan/water cooling pump header
2 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header, with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
1 x reset jumper
1 x Clear CMOS jumper
Back Panel Connectors
1 x HDMI port (Note)
2 x DisplayPorts (Note)
1 x PS/2 keyboard/mouse port
1 x Q-Flash Plus button
1 x USB Type-C® port, with USB 3.2 Gen 1 support
3 x USB 3.2 Gen 1 ports
2 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks
TPM (Trusted Platform Module ) 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)



Others

Special Features Support for GIGABYTE Control Center (GCC)
* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
Support for Q-Flash
Support for Q-Flash Plus
Support for Smart Backup
Bundled Software Norton® Internet Security (OEM version)
LAN bandwidth management software

Warranty

Warranty 3 years

Description

GIGABYTE B850M D3HP AMD AM5 DDR5 Micro ATX Motherboard

The GIGABYTE B850M D3HP AMD AM5 DDR5 Micro ATX Motherboard is designed to deliver powerful performance, expandability, and long-term reliability for both gaming and professional workloads. Built for AMD Ryzen 9000, 8000, and 7000 series processors, this motherboard ensures exceptional performance and compatibility. It supports up to 256GB of DDR5 memory across four DIMM slots with speeds reaching up to 8200MHz (OC), allowing for ultra-fast multitasking, overclocking, and seamless system responsiveness with AMD EXPO and XMP support. The integrated AMD Radeon graphics provide versatile display connectivity through HDMI 2.1 and dual DisplayPort outputs, supporting up to 4K resolution at 144Hz and triple-monitor setups. For storage, it includes dual M.2 slots supporting PCIe 5.0 and PCIe 4.0 SSDs, alongside four SATA 6Gb/s ports with RAID 0, 1, 5, and 10 support, offering both speed and data protection. Expansion options include a PCIe 5.0 x16 slot for high-end GPUs and a PCIe 3.0 x4 slot for additional peripherals. Reliable wired networking is handled by Realtek GbE LAN, ensuring stable and fast connections. Connectivity is extensive, featuring multiple USB 3.2 Gen 1 ports and USB Type-C on both the rear I/O and front panel headers. RGB customization with addressable Gen2 LED headers allows users to personalize their build, while Smart Fan controls ensure efficient cooling with minimal noise. Q-Flash Plus enables BIOS updates without the need for a CPU, memory, or GPU, simplifying system maintenance. Compact yet powerful, the GIGABYTE B850M D3HP AMD AM5 DDR5 Micro ATX Motherboard is an excellent choice for gamers, creators, and professionals looking for a future-ready platform that combines speed, stability, and flexibility.

Buy the GIGABYTE B850M D3HP AMD AM5 DDR5 Micro ATX Motherboard from Tech Buy BD for authentic products and the best prices in Bangladesh.
