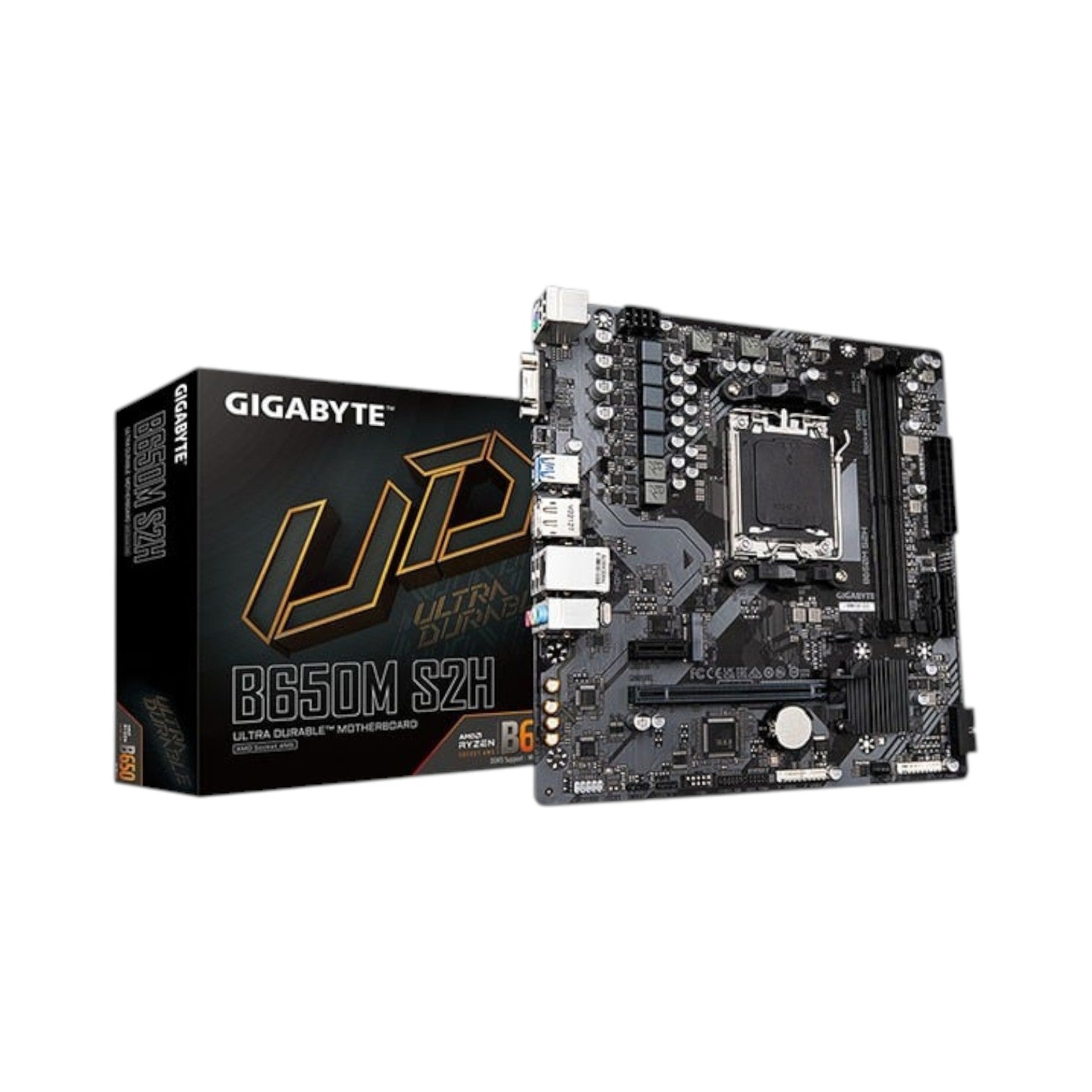

GIGABYTE B650M S2H AM5 Micro-ATX Motherboard

GIGABYTE B650M S2H AM5 Micro-ATX Motherboard

Brand: Gigabyte (AMD)
SKU: B650M S2H
Availability: In stock

Key Features

Features: Realtek GbE LAN chip
Supported Memory: 2 x DDR5 6400(OC) Max. 96GB
Graphics Output: 1 x DisplayPort, 1 x HDMI, 1 x D-Sub
Supported CPU: Ryzen 8000 & 7000 Series Processors for Socket AM5

Ask an expert
Tk 14,500
Tk 15,000
Tk 14,500
Subtotal: Tk 14,500
Description

Specification

Basic Information

Supported CPU AMD Socket AM5, support for:
AMD Ryzen™ 8000 & 7000 Series Processors
Chipset AMD B650
BIOS 1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor Micro ATX Form Factor; 23.0cm x 22.5cm
Audio Realtek Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel

Expansion Slots

PCI CPU:
- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
Chipset:
- 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1



Memory

Type DDR5
Slots 2 x DIMM
Supported Memory Support for DDR5 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules
Dual channel memory architecture
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
Maximum Memory up to 96 GB (48 GB single DIMM capacity)



Graphics

Graphics Integrated Graphics Processor:
- 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
- 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz



Connector & Ports

HDMI 1 x HDMI
Display Port (s) 1 x DisplayPort
D-Sub (s) 1 x D-Sub port
USB (s) CPU:
- 2 x USB 3.2 Gen 1 ports on the back panel
- 1 x USB 2.0/1.1 port on the back panel
Chipset:
- 2 x USB 3.2 Gen 1 ports available through the internal USB header
- 7 x USB 2.0/1.1 ports (3 ports on the back panel, 4 ports available through the internal USB headers)
LAN Port (s) Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
Supported Storage CPU:
- 1 x M.2 connector (Socket 3, M key, type 2580 PCIe 4.0 x4/x2 SSD support)
Chipset:
- 4 x SATA 6Gb/s connectors
RAID RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, and RAID 10 support for SATA storage devices
Audio 3 x audio jacks
Internal I/O Ports Internal I/O Connectors
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
2 x system fan headers
1 x addressable LED strip header
1 x RGB LED strip header
1 x M.2 Socket 3 connector
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 / GC-TPM2.0 SPI V2 module only)
1 x Clear CMOS jumper

Back Panel Connectors
4 x USB 2.0/1.1 ports
1 x PS/2 keyboard/mouse port
1 x Q-Flash Plus button
2 x USB 3.2 Gen 1 ports
1 x RJ-45 port
TPM (Trusted Platform Module ) 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)



Others

Special Features Support for GIGABYTE Control Center (GCC)
Support for Q-Flash
Support for Q-Flash Plus
Bundled Software Norton Internet Security (OEM version)
LAN bandwidth management software

Warranty

Warranty 3 years

Description

GIGABYTE B650M S2H AM5 Micro-ATX Motherboard

The GIGABYTE B650M S2H AM5 Micro-ATX Motherboard is a reliable and high-performance choice for modern AMD systems, designed to support AMD Ryzen 7000 and 8000 Series processors for exceptional computing efficiency. Featuring a 5+2+2 phase digital VRM solution, it ensures stable and efficient power delivery, enhancing performance during demanding workloads such as gaming, multitasking, or content creation. This motherboard supports dual-channel DDR5 memory across 2 SMD DIMMs and is compatible with AMD EXPO and Intel XMP profiles, allowing optimized memory tuning for faster data processing and smoother multitasking. Storage performance is elevated with a PCIe 4.0 x4 M.2 slot, enabling lightning-fast NVMe SSD speeds that significantly improve responsiveness and loading times. For easy GPU installation, the PCIe x16 slot includes an EZ-Latch quick-release mechanism, simplifying upgrades and maintenance. Networking is powered by a Gigabit Ethernet LAN port that ensures stable, high-speed connectivity for gaming and online streaming. The GIGABYTE B650M S2H AM5 motherboard also supports multiple display outputs, including HDMI, DisplayPort, and D-Sub, making it ideal for flexible multi-monitor setups. Smart Fan 6 technology offers advanced cooling control with multiple sensors, hybrid fan headers, and FAN STOP functionality for quieter and more efficient thermal management. Additionally, the Q-Flash Plus feature allows BIOS updates without requiring CPU, RAM, or GPU installation, making system maintenance straightforward. Compact yet powerful, the GIGABYTE B650M S2H AM5 Micro-ATX Motherboard provides the perfect balance of performance, reliability, and value for both gaming and productivity builds.

Buy the GIGABYTE B650M S2H AM5 Micro-ATX Motherboard from Tech Buy BD for authentic products and the best prices in Bangladesh.
