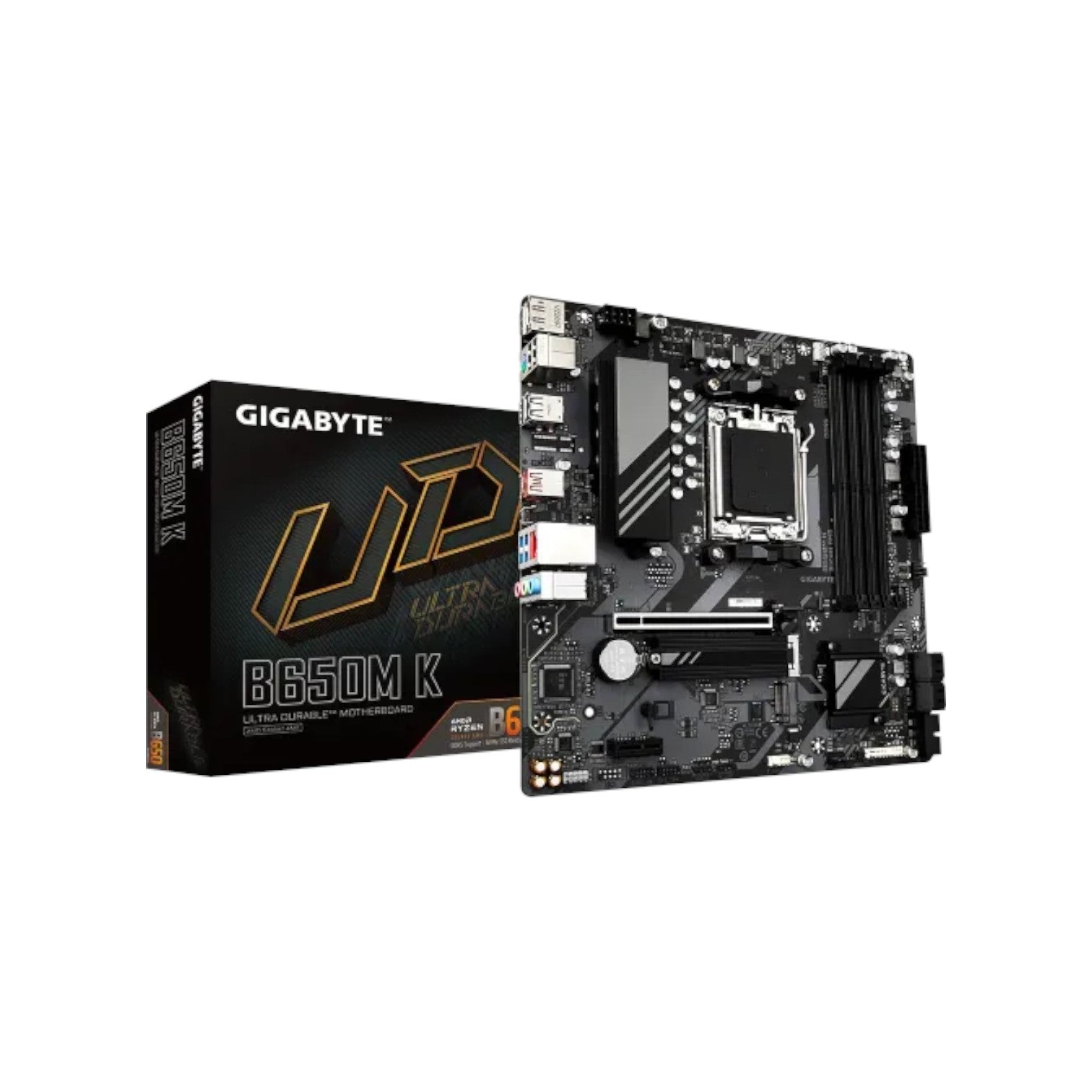

GIGABYTE B650M K AMD AM5 Micro-ATX Motherboard

GIGABYTE B650M K AMD AM5 Micro-ATX Motherboard

Brand: Gigabyte (AMD)
SKU: B650M K
Availability: In stock

Key Features

Features: 2.5GbE LAN
Graphics Output: 1x Display Port, 1 x HDMI
Supported RAM: 4x DDR5, up to 192GB, 8000(OC)
Supported CPU: Ryzen 8000 & 7000 Series Processors for Socket AM5

Ask an expert
Tk 15,000
Tk 15,500
Tk 15,000
Subtotal: Tk 15,000
Description

Specification

Basic Information

Supported CPU AMD Socket AM5, support for: AMD Ryzen 8000 & 7000 Series Processors
Chipset AMD B650
BIOS 1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor Micro ATX Form Factor; 24.4cm x 24.4cm
Audio Realtek Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel

Expansion Slots

PCI CPU:
1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
Chipset:
1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1



Memory

Type DDR5
Slots 4 DIMMs
Supported Memory Support for DDR5 8000(OC)/ 7800(OC)/ 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800 MT/s memory modules
Dual channel memory architecture
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
Maximum Memory 192 GB



Graphics

Graphics 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz
* Support for DisplayPort 1.4 version.
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.
** Support native HDMI 2.1 TMDS compatible ports.



Connector & Ports

HDMI 1 x HDMI
Display Port (s) 1 x DisplayPort
USB (s) CPU:
1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
2 x USB 2.0/1.1 ports on the back panel
Chipset:
1 x USB Type-C port with USB 3.2 Gen 1 support, available through the internal USB header
4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
LAN Port (s) Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Supported Storage CPU:
1 x M.2 connector (Socket 3, M key, type 2580 PCIe 4.0 x4/x2 SSD support)
1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 4.0 x4/x2 SSD support)
Chipset:
4 x SATA 6Gb/s connectors
RAID RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, and RAID 10 support for SATA storage devices
Audio 3 x Audio jacks
Internal I/O Ports 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
2 x system fan headers
1 x addressable LED strip header
1 x RGB LED strip header
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header, with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 1 header
1 x USB 2.0/1.1 header
1 x reset jumper
1 x Clear CMOS jumper
TPM (Trusted Platform Module ) 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)



Others

Special Features Support for GIGABYTE Control Center (GCC)
* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
Support for Q-Flash
Support for Q-Flash Plus
Bundled Software Norton Internet Security (OEM version)
LAN bandwidth management software

Warranty

Warranty 3 years

Description

GIGABYTE B650M K AMD AM5 Micro-ATX Motherboard

The GIGABYTE B650M K AMD AM5 Micro-ATX Motherboard is a high-performance, durable motherboard built to support AMD Ryzen 7000 and 8000 Series processors, offering exceptional power delivery, cooling, and connectivity in a compact design. Equipped with a robust 6+2+1 phases digital VRM solution, it ensures stable voltage regulation and consistent performance even under heavy workloads. Enhanced with premium heatsinks and a 2x copper PCB design, it provides superior thermal efficiency and effective heat dissipation, maintaining low component temperatures for long-term reliability. For ultra-fast storage, the motherboard includes dual PCIe 4.0 x4 M.2 connectors, complemented by M.2 Thermal Guards that prevent thermal throttling for sustained SSD performance. Networking is powered by 2.5GbE LAN, delivering lightning-fast, stable connections—ideal for gaming, streaming, and high-bandwidth applications. Connectivity is further improved with USB 3.2 Gen 2 ports supporting up to 10Gbps transfer speeds. Smart Fan 6 technology ensures optimal cooling with multiple hybrid fan headers that support PWM, DC, and water cooling pumps, each offering over-current protection and quiet operation. Compact yet powerful, the GIGABYTE B650M K AM5 Micro-ATX Motherboard provides an excellent balance of performance, durability, and modern features for both gamers and professionals.

Buy the GIGABYTE B650M K AMD AM5 Micro-ATX Motherboard from Tech Buy BD for authentic products and the best prices in Bangladesh.
