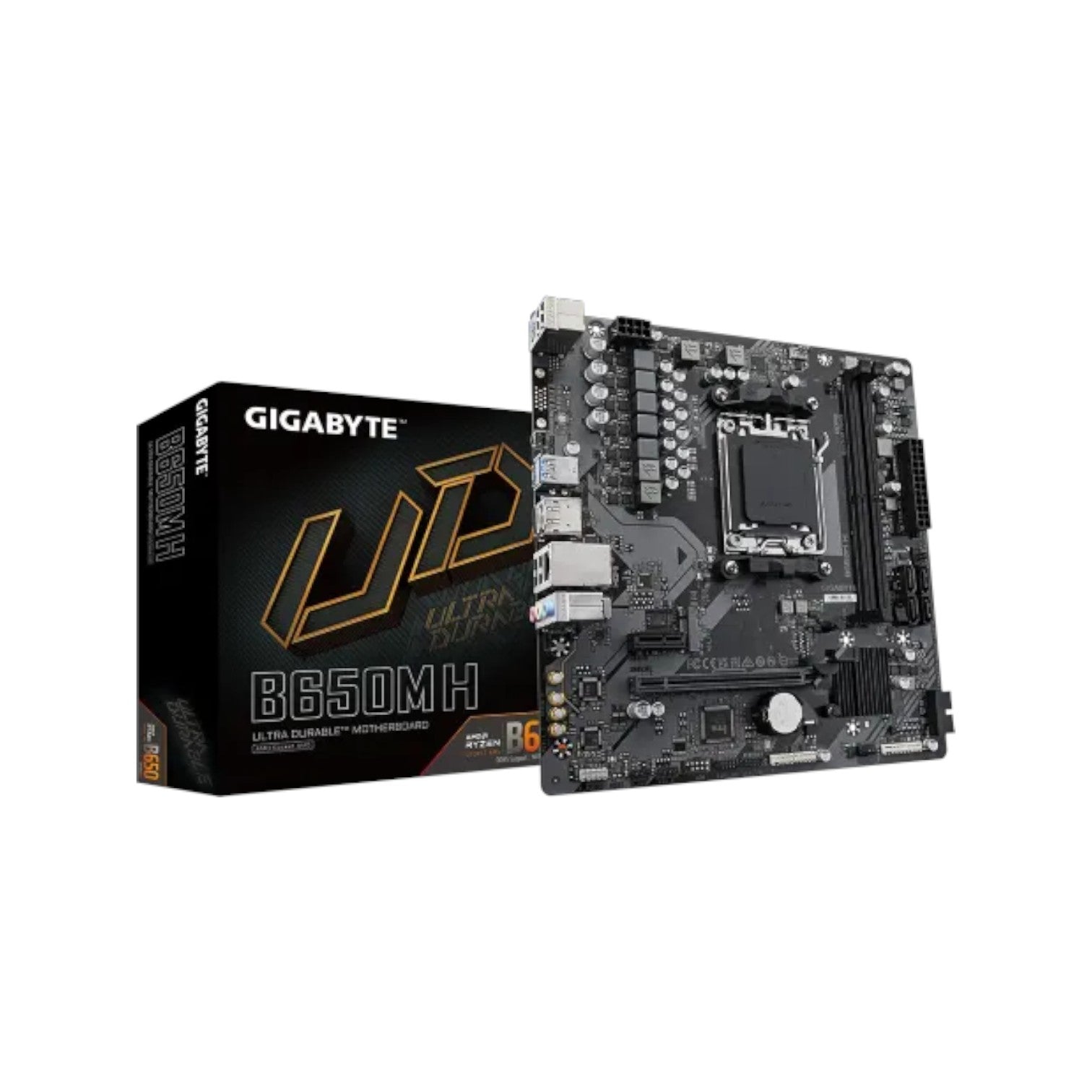

GIGABYTE B650M H AM5 Micro-ATX Motherboard

GIGABYTE B650M H AM5 Micro-ATX Motherboard

Brand: Gigabyte (AMD)
SKU: B650M H
Availability: In stock

Key Features

Features: 1 x DisplayPort, 1 x HDMI
Graphics Output: 2 x DisplayPort, 1 x HDMI port
Supported Memory: 2 x DDR5 6400(OC) Max. 96GB
Supported CPU: Ryzen 9000 / 8000 / 7000 Series Processors for Socket AM5

Ask an expert
Tk 14,300
Tk 14,900
Tk 14,300
Subtotal: Tk 14,300
Description

Specification

Basic Information

Supported CPU AMD Socket AM5, support for: AMD Ryzen 7000 / Ryzen 8000 / Ryzen 9000 Series Processors
Chipset AMD B650
BIOS 1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor Micro ATX Form Factor; 23.0cm x 22.5cm
Audio Realtek Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel

Expansion Slots

PCI 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
- AMD Ryzen 7000 Series Processors support PCIe 4.0 x16 mode
- AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
- AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
Chipset:
- 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1(PCIEX1)



Memory

Type DDR5
Slots 2 x DIMM
Supported Memory 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules
Dual channel memory architecture
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules
Maximum Memory supporting up to 96 GB (48 GB single DIMM capacity) of system memory



Graphics

Graphics supporting a maximum resolution of 3840x2160@144 Hz
* Support for DisplayPort 1.4 version.
supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.
** Support for native HDMI 2.1 TMDS compatible ports.



Connector & Ports

HDMI 1 x HDMI
Display Port (s) 1 x DisplayPort
USB (s) CPU:
- 2 x USB 3.2 Gen 1 ports on the back panel
- 1 x USB 2.0/1.1 port on the back panel
Chipset:
- 2 x USB 3.2 Gen 1 ports available through the internal USB header
- 7 x USB 2.0/1.1 ports (3 ports on the back panel, 4 ports available through the internal USB headers)
LAN Port (s) Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
Supported Storage 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2580/2280 SSDs:
- AMD Ryzen 7000 Series Processors support PCIe 4.0 x4/x2 SSDs
- AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
- AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
4 x SATA 6Gb/s connectors
RAID RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, and RAID 10 support for SATA storage devices
Audio 3 x audio jacks
Internal I/O Ports 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
2 x system fan headers
1 x addressable LED strip header
1 x RGB LED strip header
1 x M.2 Socket 3 connector
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Clear CMOS jumper

Back Panel Connectors
4 x USB 2.0/1.1 ports
1 x PS/2 keyboard/mouse port
1 x Q-Flash Plus button
2 x USB 3.2 Gen 1 ports
1 x DisplayPort
TPM (Trusted Platform Module ) 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)



Others

Special Features Support for GIGABYTE Control Center (GCC)
Support for Q-Flash
Support for Q-Flash Plus
Bundled Software Norton Internet Security (OEM version)
LAN bandwidth management software

Warranty

Warranty 3 years

Description

GIGABYTE B650M H AM5 Micro-ATX Motherboard

The GIGABYTE B650M H AM5 Micro-ATX Motherboard is a powerful and compact solution built to support AMD Ryzen 7000, 8000, and 9000 Series processors using the advanced AM5 socket. Engineered for stability and efficiency, it features a 5+2+2 phase digital VRM design that ensures consistent power delivery for smooth performance, even under heavy workloads. Supporting Dual Channel DDR5 memory via 2 SMD DIMMs, this motherboard is compatible with both AMD EXPO and Intel XMP profiles, allowing users to fine-tune memory speeds for maximum performance. For ultra-fast storage, the PCIe 4.0 x4 M.2 connector delivers rapid data transfer rates, reducing load times and enhancing overall system responsiveness. The EZ-Latch PCIe x16 slot simplifies GPU installation and removal with a quick-release mechanism, making upgrades effortless. Connectivity is robust, featuring Gigabit Ethernet LAN for stable, high-speed networking and both HDMI and DisplayPort outputs for versatile display configurations. GIGABYTE’s Smart Fan 6 technology offers precise cooling control with multiple sensors and hybrid fan headers, while the FAN STOP function ensures whisper-quiet operation when temperatures are low. The Q-Flash Plus utility allows BIOS updates without the need for CPU, RAM, or GPU installation, streamlining system maintenance. Compact yet highly capable, the GIGABYTE B650M H AM5 Micro-ATX Motherboard provides a reliable and future-ready foundation for gaming, creative, or productivity builds.

Buy the GIGABYTE B650M H AM5 Micro-ATX Motherboard from Tech Buy BD for authentic products and the best prices in Bangladesh.
