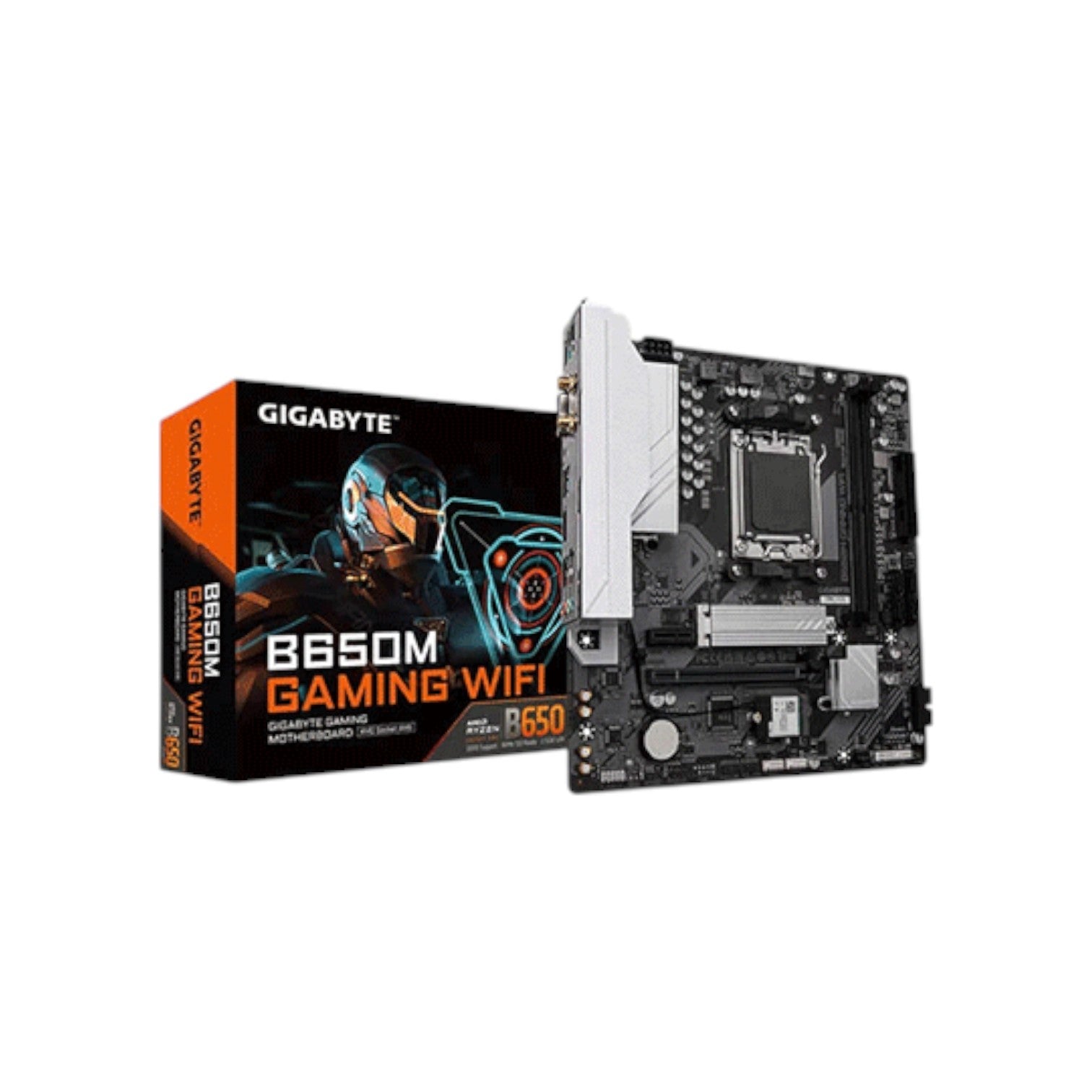

GIGABYTE B650M GAMING WIFI mATX AM5 Motherboard

GIGABYTE B650M GAMING WIFI mATX AM5 Motherboard

Brand: Gigabyte (AMD)
SKU: B650M GAMING WIFI
Availability: In stock

Key Features

Graphics Output: 1x HDMI, 1 x D-Sub
Supported RAM: 2 x DDR5, up to 128GB, 6400(OC)
Features: Realtek 2.5GbE LAN & Realtek RTL8821CE WiFi
Supported CPU: Ryzen 9000/ 8000/ 7000 Series Processors for Socket AM5

Ask an expert
Tk 17,500
Tk 18,000
Tk 17,500
Subtotal: Tk 17,500
Description

Specification

Basic Information

Supported CPU AMD Ryzen 7000 / Ryzen 8000 / Ryzen 9000 Series Processors
Chipset AMD B650
BIOS 1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor Micro ATX Form Factor; 24.0cm x 22.5cm
Audio Realtek Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

Expansion Slots

PCI 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
- AMD Ryzen 7000 Series Processors/ Ryzen 9000 Series Processors support PCIe 4.0 x16 mode
- AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
- AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
Chipset:
- 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
M.2 Socket 1 x M.2 connector



Memory

Type DDR5
Slots 4 DIMMs
Supported Memory Support for DDR5 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules
Dual channel memory architecture
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme
Memory Profile (XMP) memory modules
Maximum Memory Up to 128 GB (64 GB single DIMM capacity)



Graphics

Graphics Onboard Graphics
Integrated Graphics Processor with AMD Radeon™ Graphics support:
- 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.
** Support for native HDMI 2.1 TMDS compatible ports.
(Graphics specifications may vary depending on CPU support.)



Connector & Ports

HDMI 1x HDMI
D-Sub (s) 1 x D-Sub
USB (s) CPU:
- 2 x USB 3.2 Gen 1 ports on the back panel
- 1 x USB 2.0/1.1 port on the back panel
Chipset:
- 2 x USB 3.2 Gen 1 ports available through the internal USB header
- 5 x USB 2.0/1.1 ports (3 ports on the back panel, 2 ports available through
the internal USB header)
Chipset+USB 2.0 Hub:
- 2 x USB 2.0/1.1 ports available through the internal USB header
LAN Port (s) Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module Wireless Communication module
AzureWave Wi-Fi AW-CB304NF (Realtek RTL8821CE)
- WIFI 802.11 a, b, g, n, ac, supporting 2.4/5 GHz Dual-Band
- BLUETOOTH 4.2
- Support for 11ac wireless standard
Supported Storage 1 x M.2 connector, integrated in the CPU, supporting Socket 3, M key, type 2580/2280 SSDs:
- AMD Ryzen 7000 Series Processors/ Ryzen 9000 Series Processors support PCIe 4.0 x4/x2 SSDs
- AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
- AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
4 x SATA 6Gb/s connectors
RAID RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, and RAID 10 support for SATA storage devices
Audio 3 x Audio jacks
Internal I/O Ports Internal I/O Connectors
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
2 x system fan headers
2 x addressable LED strip headers
1 x RGB LED strip header
1 x M.2 Socket 3 connector
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/ GC-TPM2.0 SPI V2 module only)
1 x Clear CMOS jumper
TPM (Trusted Platform Module ) 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)



Others

Special Features Support for GIGABYTE Control Center (GCC)
* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
Support for Q-Flash
Support for Q-Flash Plus

Back Panel Connectors
4 x USB 2.0/1.1 ports
1 x PS/2 keyboard/mouse port
1 x D-Sub port
1 x Q-Flash Plus button
2 x USB 3.2 Gen 1 ports
1 x HDMI port
1 x RJ-45 port
3 x audio jacks
Bundled Software Norton Internet Security (OEM version)
LAN bandwidth management software

Warranty

Warranty 3 years

Description

GIGABYTE B650M GAMING WIFI mATX AM5 Motherboard

The GIGABYTE B650M GAMING WIFI mATX AM5 Motherboard is designed for gamers and PC enthusiasts who demand performance, reliability, and modern features in a compact form factor. Built for AMD Ryzen 7000, 8000, and 9000 Series processors, this motherboard utilizes the AM5 socket and offers dual-channel DDR5 memory support with AMD EXPO and Intel XMP profiles, achieving speeds up to 6400 MT/s for ultra-smooth performance and responsiveness. It provides exceptional connectivity with 2.5GbE LAN and built-in Wi-Fi, ensuring stable, high-speed networking for both wired and wireless setups. Display options include HDMI and D-Sub ports, allowing flexible multi-monitor configurations for productivity or gaming. For storage, it features a PCIe 4.0 x4 M.2 slot alongside four SATA 6Gb/s ports, offering high-speed data access and ample expansion options. The Smart Fan 6 cooling system ensures optimal thermal performance with multiple temperature sensors and hybrid fan headers, keeping your system cool even under intense loads. GIGABYTE’s Ultra Durable components enhance stability and longevity, while PCIe EZ-Latch simplifies GPU installation and Q-Flash Plus allows BIOS updates without the need for CPU, RAM, or GPU installation. Compact yet powerful, the GIGABYTE B650M GAMING WIFI mATX AM5 Motherboard is the perfect foundation for building a high-performance, future-ready gaming PC.

Buy the GIGABYTE B650M GAMING WIFI mATX AM5 Motherboard from Tech Buy BD for authentic products and the best prices in Bangladesh.
