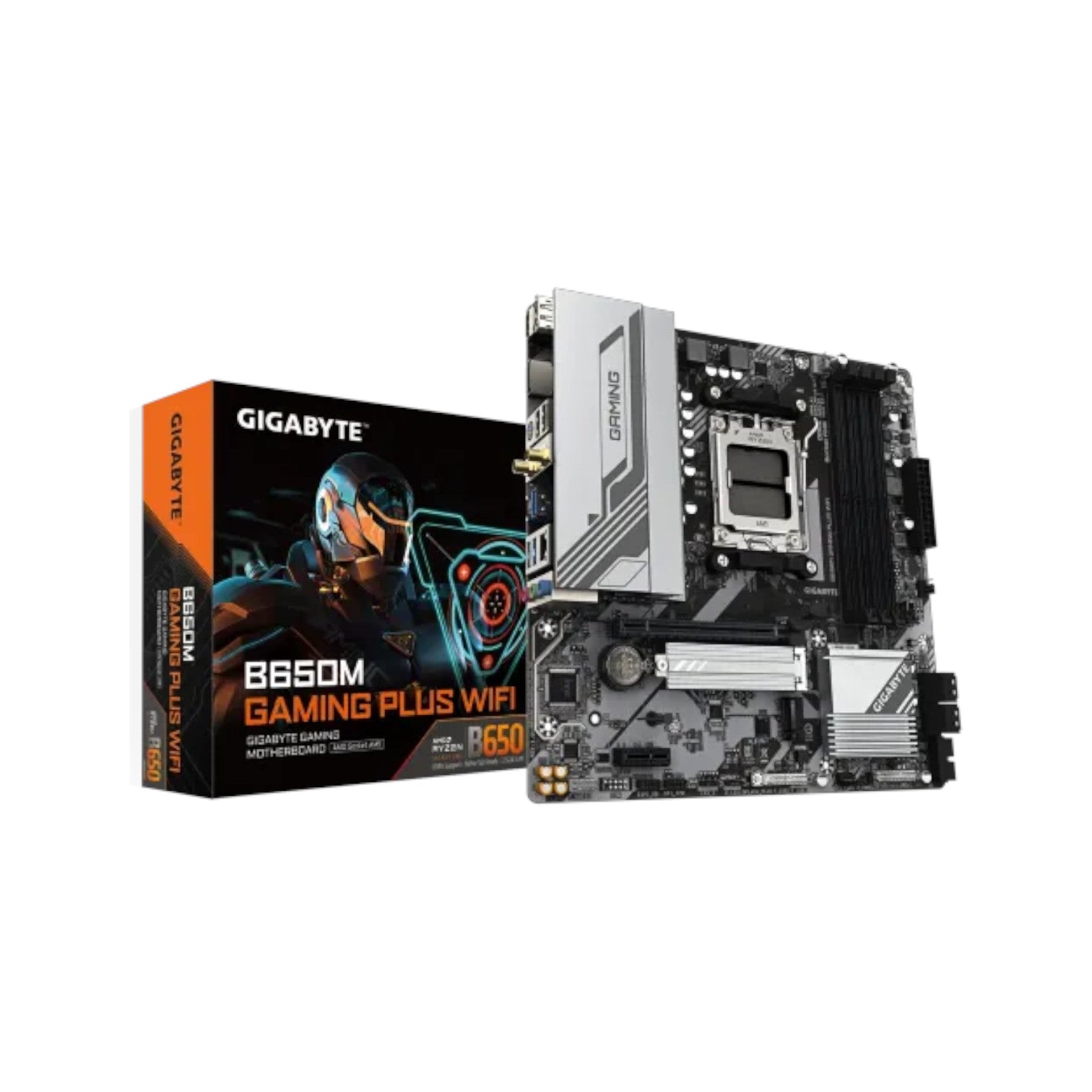

GIGABYTE B650M GAMING PLUS WIFI DDR5 AM5 Motherboard

GIGABYTE B650M GAMING PLUS WIFI DDR5 AM5 Motherboard

Brand: Gigabyte (AMD)
SKU: B650M GAMING PLUS WIFI
Availability: In stock

Key Features

Graphics Output: 2x Display Port, 1x HDMI
Supported RAM: 4x DDR5, up to 192GB, 7600(OC)
Features: Realtek 2.5GbE LAN & Realtek Wi-Fi 6E RTL8852CE
Supported CPU: Ryzen 9000/ 8000/ 7000 Series Processors for Socket AM5

Ask an expert
Tk 21,500
Tk 22,000
Tk 21,500
Subtotal: Tk 21,500
Description

Specification

Basic Information

Supported CPU AMD Socket AM5, support for: AMD Ryzen 8000/ 7000 Series Processors
Chipset AMD B650
BIOS 1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor Micro ATX Form Factor; 24.4cm x 24.4cm
Audio Realtek Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

Expansion Slots

PCI 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
AMD Ryzen™ 7000 Series Processors support PCIe 4.0 x16 mode
AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
* The PCIEX16 slot can only support a graphics card or an NVMe SSD.

Chipset:
- 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 (PCIEX1)



Memory

Type DDR5
Slots 4 DIMMs
Supported Memory 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/4800/4400 MT/s memory modules
Dual channel memory architecture
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme
Memory Profile (XMP) memory modules
Maximum Memory up to 256 GB (64 GB single DIMM capacity) of system memory



Graphics

Graphics Onboard Graphics
Integrated Graphics Processor with AMD Radeon Graphics support
- 2 x DisplayPorts, supporting a maximum resolution of 3840x2160@144 Hz
* Support for DisplayPort 1.4 version.


- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.
** Support for native HDMI 2.1 TMDS compatible ports.


Support for up to triple-display at the same time
(Graphics specifications may vary depending on CPU support.)



Connector & Ports

HDMI 1 x HDMI
Display Port (s) 2 x DisplayPorts
USB (s) CPU:
- 1 x USB Type-C port on the back panel, with USB 3.2 Gen 1 support
- 1 x USB 3.2 Gen 1 port on the back panel
- 1 x USB 2.0/1.1 port on the back panel

Chipset:
- 2 x USB 3.2 Gen 1 ports on the back panel
- 1 x USB Type-C port with USB 3.2 Gen 1 support, available through the internal USB header
- 2 x USB 3.2 Gen 1 ports available through the internal USB header
- 5 x USB 2.0/1.1 ports (1 port on the back panel, 4 ports available through the internal USB headers)
LAN Port (s) Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module Wireless Communication module
Realtek Wi-Fi 6E RTL8852CE (PCB rev. 1.0)
- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
- BLUETOOTH 5.3
- Support for 11ax 160MHz wireless
Realtek Wi-Fi 6 RTL 8851BE (PCB rev. 1.1)
- WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz carrier frequency bands
- BLUETOOTH 5.3
- Support for 11ax 80MHz wireless
(Actual data rate may vary depending on environment and equipment.)
Supported Storage 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2580 SSDs:
AMD Ryzen 7000 Series Processors support PCIe 4.0 x4/x2 SSDs
AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs
4 x SATA 6Gb/s connectors
RAID RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, and RAID 10 support for SATA storage devices
Audio 3 x Audio jacks
Internal I/O Ports Internal I/O Connectors
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
2 x system fan headers
2 x addressable LED strip headers
1 x RGB LED strip header
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header, with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Q-Flash Plus button
1 x reset jumper
1 x Clear CMOS jumper

Back Panel Connectors
1 x PS/2 keyboard/mouse port
1 x USB Type-C® port, with USB 3.2 Gen 1 support
3 x USB 3.2 Gen 1 ports
2 x USB 2.0/1.1 ports
1 x HDMI port
2 x DisplayPorts
2 x SMA antenna connectors (2T2R) (1T1R)*
* Only for Realtek Wi-Fi 6 RTL8851BE


1 x RJ-45 port
3 x audio jacks
TPM (Trusted Platform Module ) 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)



Others

Special Features Support for GIGABYTE Control Center (GCC)
* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
Support for Q-Flash
Support for Q-Flash Plus
Bundled Software Norton Internet Security (OEM version)
LAN bandwidth management software

Warranty

Warranty 3 years

Description

GIGABYTE B650M GAMING PLUS WIFI DDR5 AM5 Motherboard

The GIGABYTE B650M GAMING PLUS WIFI DDR5 AM5 Motherboard is built to deliver powerful performance and advanced connectivity, making it an excellent choice for gamers, content creators, and professionals. Designed for AMD Ryzen 7000, 8000, and 9000 Series processors, this motherboard utilizes the AM5 socket for next-level speed and efficiency. Its 5+2+2 Phases Digital VRM Solution ensures stable and consistent power delivery even under heavy workloads or intense gaming sessions. With dual-channel DDR5 memory support across four SMD DIMMs, it accommodates up to 192GB of RAM and supports both AMD EXPO and Intel XMP memory profiles for optimized overclocking and seamless multitasking. For storage, the PCIe 4.0 x4 M.2 connector delivers lightning-fast data transfer speeds, ideal for gaming and creative workflows. The EZ-Latch PCIe x16 slot provides a quick-release mechanism for effortless GPU installation and upgrades. Networking is top-tier, with built-in Wi-Fi 6E (802.11ax) and 2.5GbE LAN offering ultra-fast wired and wireless connectivity for smooth online gaming and streaming. Display options include dual DisplayPorts and one HDMI port, supporting multiple monitors for enhanced productivity. Smart Fan 6 technology maintains efficient cooling with multiple temperature sensors and hybrid fan headers with FAN STOP support to minimize noise. The Q-Flash Plus feature simplifies BIOS updates, allowing you to upgrade without installing the CPU, memory, or GPU. Combining power, precision, and versatility, the GIGABYTE B650M GAMING PLUS WIFI DDR5 AM5 Motherboard is the perfect choice for building a future-ready, high-performance system.

Buy the GIGABYTE B650M GAMING PLUS WIFI DDR5 AM5 Motherboard from Tech Buy BD for authentic products and the best prices in Bangladesh.
