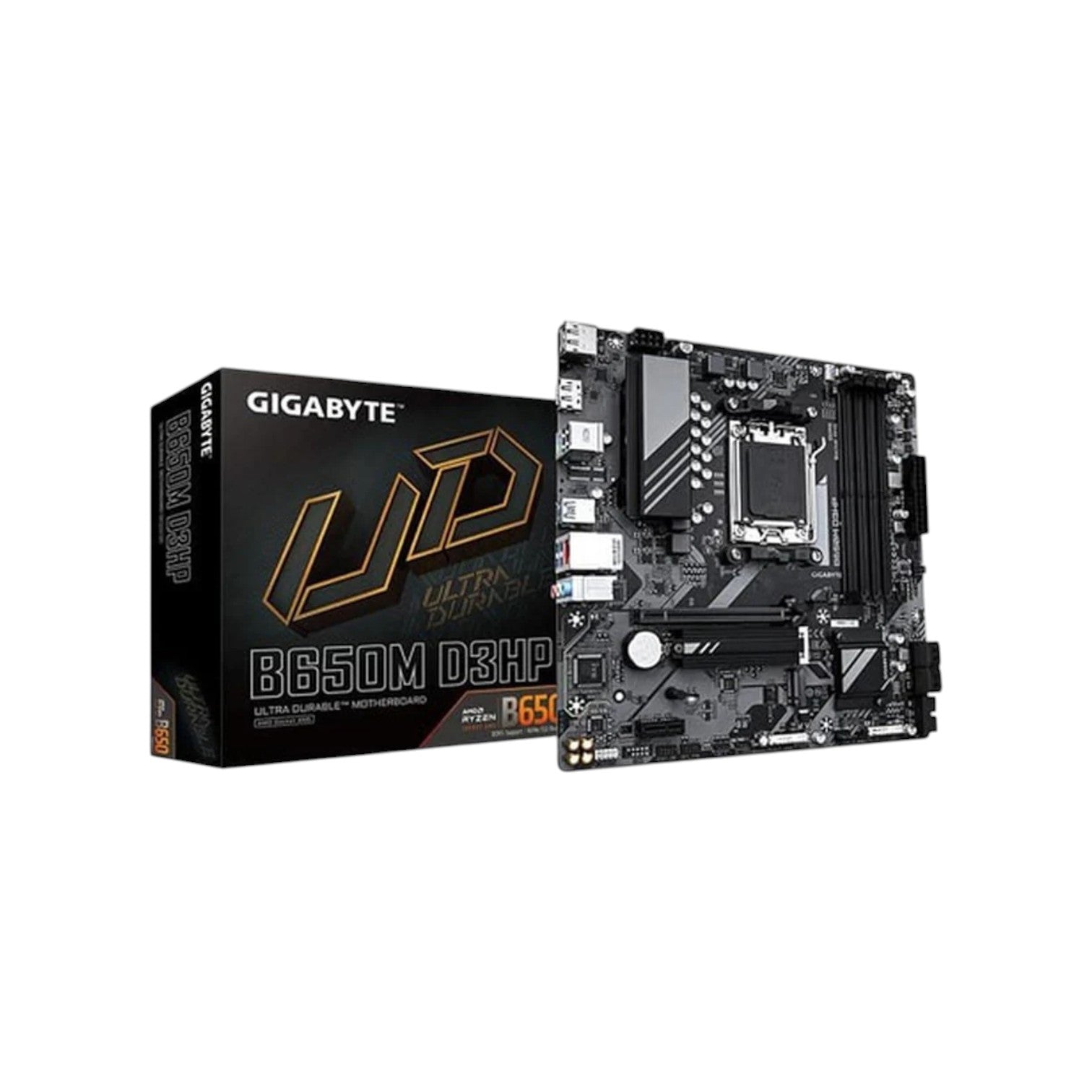

GIGABYTE B650M D3HP DDR5 AM5 Motherboard

GIGABYTE B650M D3HP DDR5 AM5 Motherboard

Brand: Gigabyte (AMD)
SKU: B650M D3HP
Availability: In stock

Key Features

Features: Realtek 2.5GbE LAN chip
Graphics Output: 2x Display Port, 1 x HDMI
Supported RAM: 4x DDR5, up to 192GB, 7600(OC)
Supported CPU: Ryzen 8000/ 7000 Series Processors for Socket AM5

Ask an expert
Tk 18,000
Tk 18,700
Tk 18,000
Subtotal: Tk 18,000
Description

Specification

Basic Information

Supported CPU AMD Socket AM5, support for: AMD Ryzen 8000/ 7000 Series Processors
Chipset AMD B650
BIOS 1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor Micro ATX Form Factor; 24.4cm x 24.4cm
Audio Realtek Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

Expansion Slots

PCI 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
- AMD Ryzen 7000 Series Processors support PCIe 4.0 x16 mode
- AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
- AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
Chipset:
- 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 (PCIEX1)



Memory

Type DDR5
Slots 4 DIMMs
Supported Memory 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800 MT/s memory modules
Dual channel memory architecture
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)
Maximum Memory up to 192 GB (48 GB single DIMM capacity) of system memory



Graphics

Graphics Integrated Graphics Processor with AMD Radeon Graphics support
- 2 x DisplayPorts, supporting a maximum resolution of 3840x2160@144 Hz
* Support for DisplayPort 1.4 version.
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.
** Support for native HDMI 2.1 TMDS compatible ports.
Support for up to triple-display at the same time
(Graphics specifications may vary depending on CPU support.)

Connector & Ports

HDMI 1x HDMI
Display Port (s) 2 x DisplayPorts
USB (s) CPU:
- 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 1 support
- 1 x USB 3.2 Gen 1 port on the back panel
- 1 x USB 2.0/1.1 port on the back panel
Chipset:
- 2 x USB 3.2 Gen 1 ports on the back panel
- 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header
- 2 x USB 3.2 Gen 1 ports available through the internal USB header
- 5 x USB 2.0/1.1 ports (1 port on the back panel, 4 ports available through the internal USB headers)
LAN Port (s) Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Supported Storage 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2580 SSDs:
- AMD Ryzen 7000 Series Processors support PCIe 4.0 x4/x2 SSDs
- AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
- AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs
4 x SATA 6Gb/s connectors
RAID RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, and RAID 10 support for SATA storage devices
Audio 3 x Audio jacks
Internal I/O Ports Internal I/O Connectors
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
2 x system fan headers
2 x addressable LED strip headers
1 x RGB LED strip header
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C header, with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Q-Flash Plus button
1 x reset jumper
1 x Clear CMOS jumper

Back Panel Connectors
1 x PS/2 keyboard/mouse port
1 x USB Type-C port, with USB 3.2 Gen 1 support
3 x USB 3.2 Gen 1 ports
2 x USB 2.0/1.1 ports
1 x HDMI port
2 x DisplayPorts
1 x RJ-45 port
3 x audio jacks
TPM (Trusted Platform Module ) 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)



Others

Special Features Support for GIGABYTE Control Center (GCC)
* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

Support for Q-Flash
Support for Q-Flash Plus
Bundled Software Norton Internet Security (OEM version)
LAN bandwidth management software

Warranty

Warranty 3 years

Description

GIGABYTE B650M GAMING WIFI mATX AM5 Motherboard

The Gigabyte B650M Gaming WiFi mATX AM5 Motherboard is designed for gamers and PC enthusiasts who demand performance, reliability, and modern features in a compact form factor. Built for AMD Ryzen 7000, 8000, and 9000 Series processors, this motherboard utilizes the AM5 socket and offers dual-channel DDR5 memory support with AMD EXPO and Intel XMP profiles, achieving speeds up to 6400 MT/s for ultra-smooth performance and responsiveness. It provides exceptional connectivity with 2.5GbE LAN and built-in Wi-Fi, ensuring stable, high-speed networking for both wired and wireless setups. Display options include HDMI and D-Sub ports, allowing flexible multi-monitor configurations for productivity or gaming. For storage, it features a PCIe 4.0 x4 M.2 slot alongside four SATA 6Gb/s ports, offering high-speed data access and ample expansion options. The Smart Fan 6 cooling system ensures optimal thermal performance with multiple temperature sensors and hybrid fan headers, keeping your system cool even under intense loads. Gigabyte’s Ultra Durable components enhance stability and longevity, while PCIe EZ-Latch simplifies GPU installation and Q-Flash Plus allows BIOS updates without the need for CPU, RAM, or GPU installation. Compact yet powerful, the Gigabyte B650M Gaming WiFi mATX AM5 Motherboard is the perfect foundation for building a high-performance, future-ready gaming PC.

Buy the GIGABYTE B650M GAMING WIFI mATX AM5 Motherboard from Tech Buy BD for authentic products and the best prices in Bangladesh.
