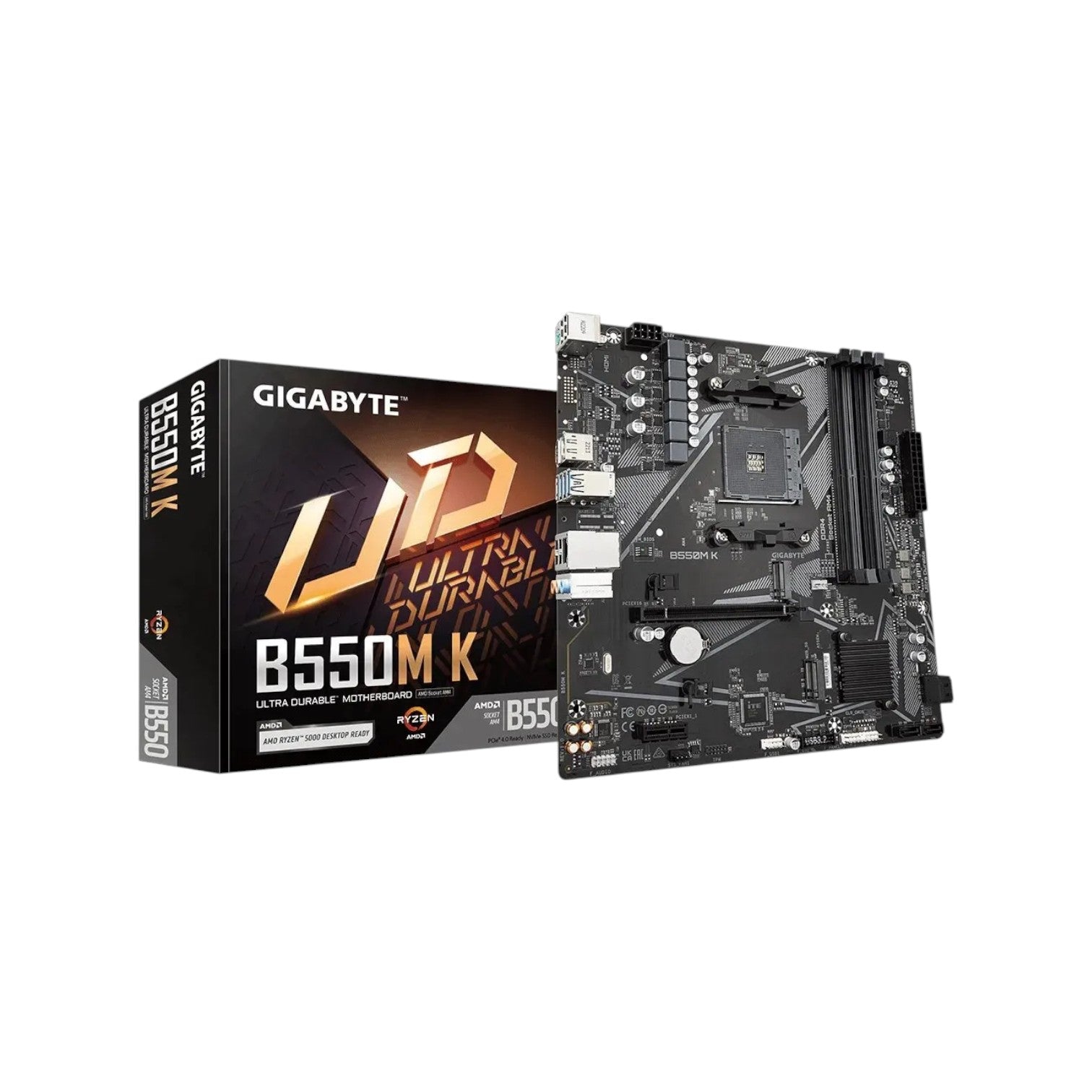

Gigabyte B550M K AMD AM4 Micro ATX Motherboard

Gigabyte B550M K AMD AM4 Micro ATX Motherboard

Brand: Gigabyte (AMD)
SKU: B550M K
Availability: In stock

Key Features

Graphics Output: 1x HDMI, 1x DisplayPort
Supported RAM: 4x DDR4, Max 128GB 4733(OC)
Features: GbE LAN with Bandwidth Management
Supported CPU: Ryzen 5000/ 5000 G/ 4000 G and 3000 Series Processors

Ask an expert
Tk 11,800
Tk 12,300
Tk 11,800
Subtotal: Tk 11,800
Description

Specification

Basic Information

Supported CPU AMD Socket AM4, support for: AMD Ryzen 5000 Series/ Ryzen 5000 G-Series/ Ryzen 4000 G-Series and Ryzen 3000 Series Processors
Chipset AMD B550
BIOS 1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor Micro ATX Form Factor; 24.4cm x 24.4cm
Audio Realtek Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel

Expansion Slots

PCI 1 x PCI Express x16 slot, integrated in the CPU:
AMD Ryzen 5000 Series/3000 Series Processors support PCIe 4.0 x16 mode
AMD Ryzen 5000 G-Series/4000 G-Series Processors support PCIe 3.0 x16 mode
1 x PCI Express x1 slot, integrated in the Chipset:
Supporting PCIe 3.0 x1 mode



Memory

Type DDR4
Slots 4 x DIMM
Supported Memory Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules*
* ECC memory (ECC mode) support varies by CPU
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Maximum Memory 128 GB



Graphics

Graphics Integrated Graphics Processor:
1 x DisplayPort, supporting a maximum resolution of 5120x2880@60 Hz
* Support for DisplayPort 1.4 version, HDCP 2.3, and HDR.
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version, HDCP 2.3, and HDR.
Max Shared Memory 16 GB



Connector & Ports

HDMI 1 x HDMI
Display Port (s) 1 x DisplayPort
USB (s) CPU:
4 x USB 3.2 Gen 1 ports on the back panel
Chipset:
2 x USB 3.2 Gen 1 ports available through the internal USB header
6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
LAN Port (s) Realtek GbE LAN chip (1 Gbps/100 Mbps)
Supported Storage 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs:
AMD Ryzen 5000 Series/3000 Series Processors support SATA and PCIe 4.0 x4/x2 SSDs
AMD Ryzen 5000 G-Series/4000 G-Series Processors support SATA and PCIe 3.0 x4/x2 SSDs
1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2280 SSDs:
Supporting PCIe 3.0 x2 SSDs
4 x SATA 6Gb/s connectors, integrated in the Chipset:
RAID Support for RAID 0, RAID 1, and RAID 10
Audio 3 x audio jacks
Internal I/O Ports 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x system fan header
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
1 x USB 2.0/1.1 header
1 x Clear CMOS jumper
TPM (Trusted Platform Module ) 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)



Others

Special Features Support for APP Center
@BIOS
EasyTune
Smart Backup
System Information Viewer
Support for Q-Flash
Support for Xpress Install
Bundled Software Norton Internet Security (OEM version)
LAN bandwidth management software

Warranty

Warranty 3 years

Description

Gigabyte B550M K AMD AM4 Micro ATX Motherboard

The Gigabyte B550M K AMD AM4 Micro ATX Motherboard is built with precision and performance in mind, offering the perfect balance of speed, stability, and durability for AMD users. Powered by the AMD B550 chipset, it supports Ryzen 5000, 5000G, 4000G, and 3000 Series processors, ensuring wide compatibility for both gaming and professional workloads. With four dual-channel DDR4 DIMM slots supporting ECC and non-ECC unbuffered memory, this motherboard delivers efficient multitasking and reliable performance. The PCIe 4.0 x16 slot provides high-speed bandwidth for powerful graphics cards, while dual NVMe PCIe 4.0/3.0 M.2 connectors enable lightning-fast SSD storage for improved responsiveness and reduced load times. Featuring a digital VRM solution and Ultra Durable design, the Gigabyte B550M K ensures stable power delivery and long-lasting reliability, while the anti-sulfur resistor design enhances protection against environmental damage. For immersive audio, it includes high-quality audio capacitors and an Audio Noise Guard, delivering crisp and clear sound. Connectivity is enhanced with HDMI and DisplayPort outputs for multi-display setups and a Gigabit LAN port with bandwidth management for smooth, stable networking. Smart Fan 5 technology provides intelligent cooling with hybrid fan headers and FAN STOP functionality, maintaining an ideal balance between cooling efficiency and noise reduction. Compact and efficient, the Gigabyte B550M K AMD AM4 Micro ATX Motherboard is an excellent choice for building a reliable, high-performance AMD-based PC.

Buy the Gigabyte B550M K AMD AM4 Micro ATX Motherboard from Tech Buy BD for authentic products and the best prices in Bangladesh.
